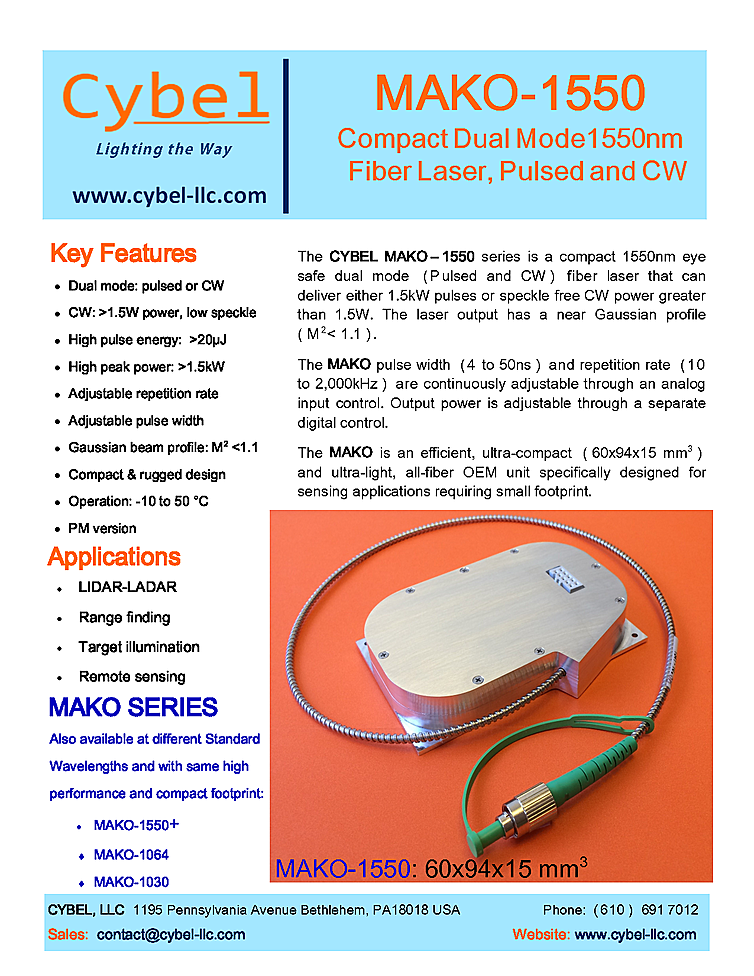

1545nm, 1000mW Nanosecond Laser

Cybel MAKO-1550
1545nm Nanosecond Laser
1W Output Power

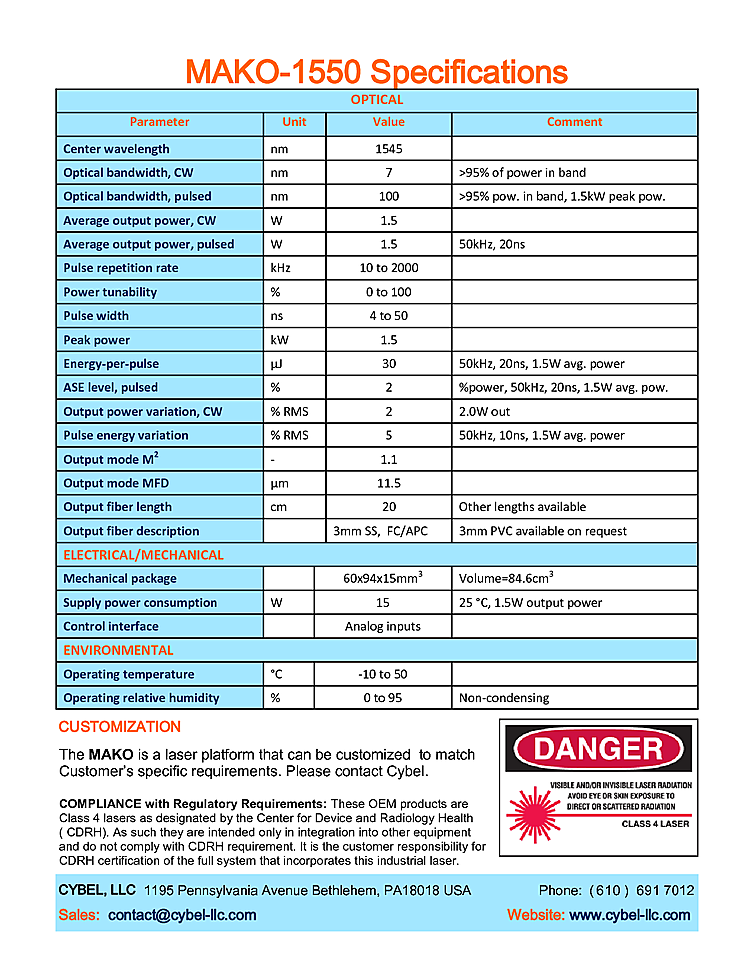

Typical Specifications:
- Output power variation, CW % RMS: 2.0W out
- Pulse energy variation % RMS: 5 50kHz, 10ns, 1.5W avg. power
- Output mode M2: 1.1
- Output mode MFD μm: 11.5
- Output fiber length cm: 20 (other lengths available)
- Output fiber description: 3mm SS, FC/APC (3mm PVC available on request)
- Mechanical package: 60x94x15mm, Volume=84.6cm3
- Supply power consumption W: 15 25 °C, 1.5W output power
- Control interface: Analog inputs
- Operating temperature °C: -10 to 50
- Operating relative humidity %: 0 to 95 Non-condensing

Description:
Applications for the fiber laser from Cybel include LIDAR-LADAR, Range finding, Target illumination, and Remote sensing. Fiber laser provides CW and pulsed output. CW output is up to 1.5 watts. Nanosecond pulse energy output up to 30µJ with a peak power of 2.5kW. Pulse repetition rate 10kHz to 2MHz with a pulse duration of 4 to 50ns. Continuously tuned pulsed output. Fiber laser was designed for OEM integration and ultra compact and rugged for demanding applications. Fiber laser wavelength is 1545nm.
