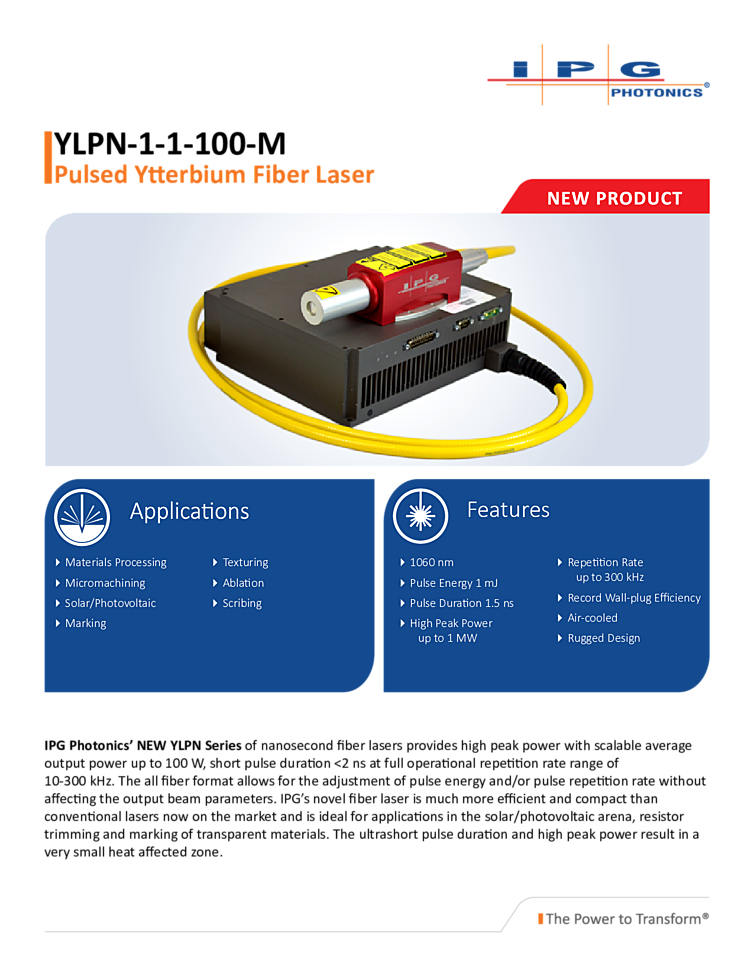

1060nm, 1mJ Nanosecond Laser

IPG Photonics Model YLPN-1-1-100-M
1060nm Nanosecond Laser
1mJ Pulse

Typical Specifications:
- Wavelength, nm: 1060
- Average Power, W: 100
- Pulse Energy, mJ: 1
- Pulse Duration, ns: 1.3-2
- Peak Power, MW: up to 1
- Repetition Rate, kHz: 10-300
- Beam Quality, M2: <2
- Module Dimensions, mm: 270 x 220 x 86
- Optical Head Dimensions (L x diam), mm: 260 x 55 x 60
- Cooling: Air-cooled
- Supply Voltage, VDC: 24
- Power Consumption, W: 430

Description:
Fiber laser with nanosecond pulse output from IPG Photonics. The nanosecond laser was designed for applications in Materials Processing, Micromachining, Solar/Photovoltaic, Marking, Texturing, Ablation, and Scribing. Fiber laser has the following features record wall-plug efficiency, air-cooled and rugged design. The nanosecond laser has high peak output power up to 1 MW with a repetition rate of 300kHz and pulse duration of 1.3-2ns. Beam quality is M2<2. Fiber laser has a wavelength of 1060nm with output pulse energy of 1mJ.
