1045nm, 1W Femtosecond Laser

IMRA Femtolite FD/D-FD-1000S
1045nm Femtosecond Laser
1W Output Power

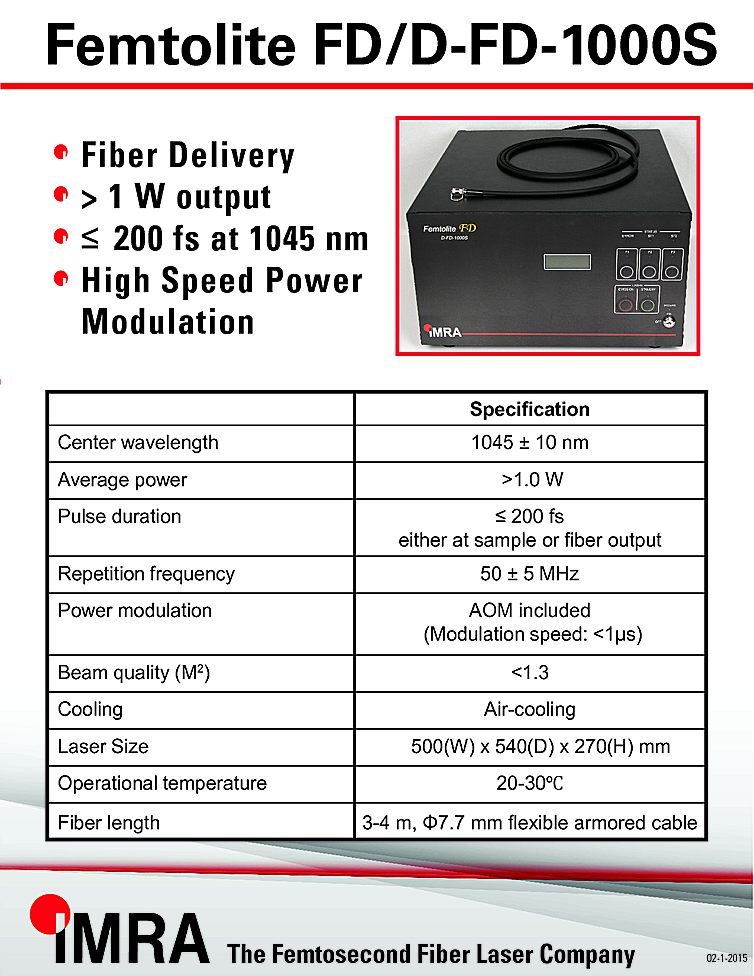

Typical Specifications:
- Center wavelength: 1045 ± 10 nm
- Average power: >1.0 W
- Pulse duration: ≤ 200 fs
- Repetition frequency: 50 ± 5 MHz
- Power modulation: AOM included (modulation speed: <1μs)
- Beam quality (M2): <1.3
- Cooling: Air-cooling
- Laser size: 500(W) x 540(D) x 270(H) mm
- Operational temperature: 20-30℃
- Fiber length: 3-4 m, Φ7.7 mm flexible armored cable
- Fiber delivery: > 1 W output, ≤ 200 fs at 1045 nm
- High speed power modulation

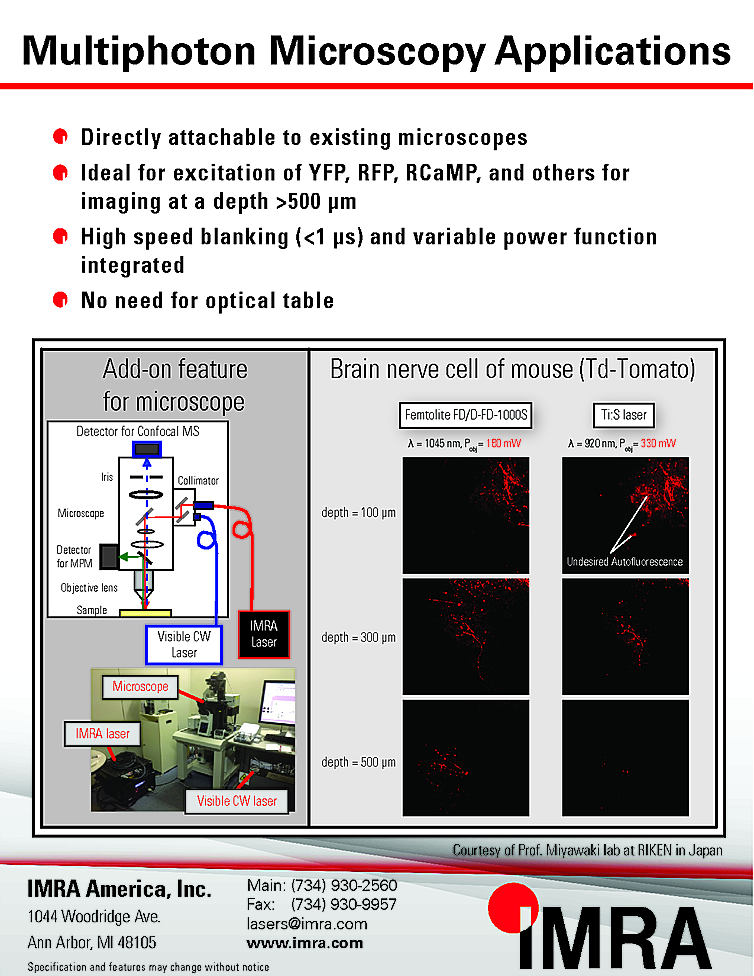

Description:
Fiber laser from IMRA designed for multiphoton imaging applications. Key features for multiphoton imaging applications include connects directly to existing microscopes, ideal for excitation of YFP, RFP, RCaMP, and others for imaging at a depth >500 µm, high speed blanking (<1 µs) and variable power function integrated. The fiber laser based design eliminates the need for an optical table. Pulse repetition interval of 50MHz with a pulse duration less than 200fs is possible from the laser. Beam quality is M2<1.3. Fiber laser wavelength is 1045nm with average output power of 1 watt.
