780nm, 80mW Femtosecond Fiber Laser

Avesta Lasers Model EFOA-SH
780nm Femtosecond Laser
80mW Output Power

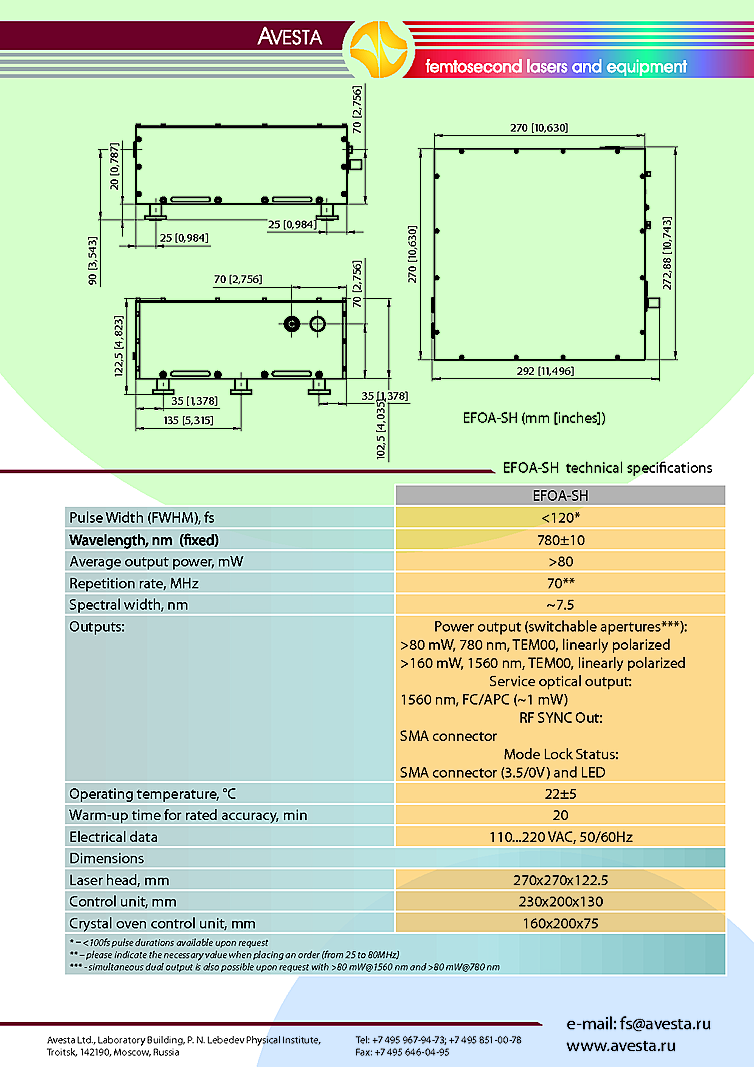

Typical Specifications:
- Pulse Width (FWHM), fs: <120
- Average output power, mW: >80
- Repetition rate, MHz: 70
- Spectral width, nm: ~7.5
- Power output (switchable apertures):
-- >80 mW, 780 nm, TEM00, linearly polarized
-- >160 mW, 1560 nm, TEM00, linearly polarized
- Service optical output: 1560 nm, FC/APC (~1 mW)
-- RF SYNC Out: SMA connector
-- Mode Lock Status: SMA connector (3.5/0V) and LED
- Operating temperature, °C: 22±5

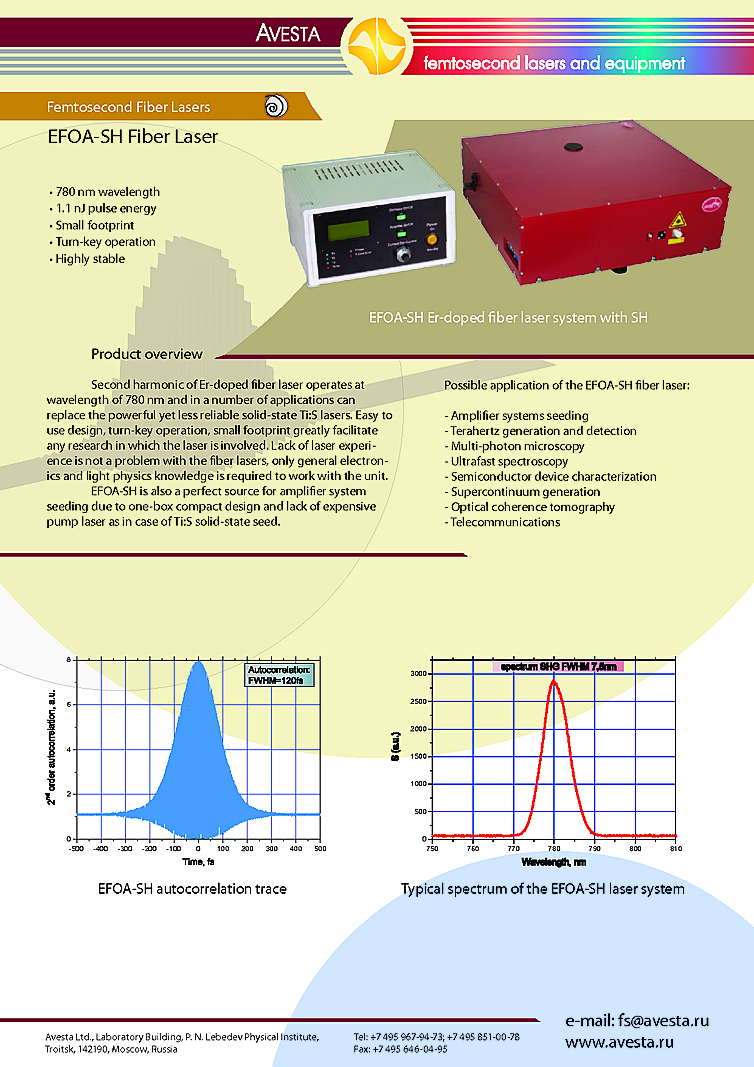

Description:
Fiber laser with femtosecond pulses from Avesta Laser. Second harmonic of Er-doped fiber laser operates at wavelength of 780 nm and in a number of applications can replace the powerful yet less reliable solid-state Ti:S lasers. Easy to use design, turn-key operation, small footprint greatly facilitate any research in which the laser is involved. Lack of laser experience is not a problem with the fiber lasers, only general electronics and light physics knowledge is required to work with the unit. Common Applications include Amplifier systems seeding, Terahertz generation and detection, Multi-photon microscopy, Ultrafast spectroscopy, Semiconductor device characterization, Supercontinuum generation, Optical coherence tomography and Telecommunications. Femtosecond pulse laser output power is up to 80mW at 780nm wavelength.
