532nm, 100W CW Fiber Laser

IPG Photonics Model GLPN-100-M
532nm CW Fiber Laser
100W Output Power
____________________________________________________________________

Typical Specifications:
- Wavelength: 532 nm
- Mode of Operation: Pulsed/Quasi CW
- Repetition Rate: 30 MHz
- Average Power: 100 W
- Power Tunability: 2-100%
- Pulse Duration: 1 ns
- Power Stability: ±0.5%
- Polarization: Linear, >100:1
- Beam Quality: M2 <1.2
- Module Dimensions: 264 x 148 x 384 mm
- Optical Head Dimensions: 105 x 60 x 213 mm
- Cooling: Air-cooled
- Supply Voltage: 40 VDC
- Power Consumption: 530 W

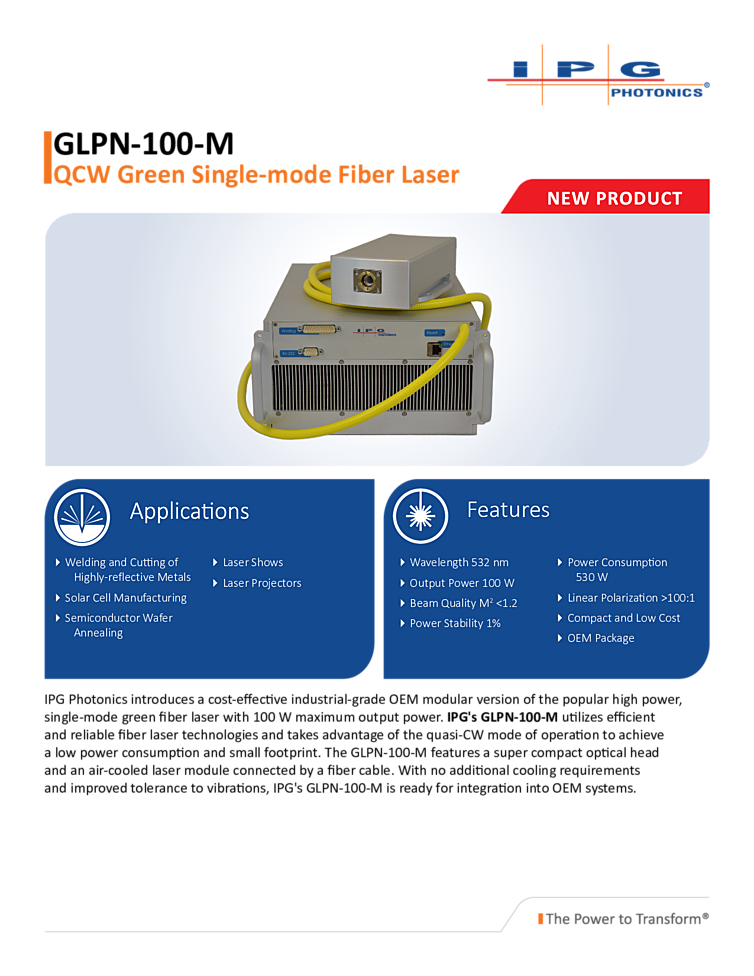

Description:
Single-mode fiber laser system from IPG Photonics. The follow features have been designed into the fiber laser: Output Power 100 Watts, Beam Quality M2<1.2, Power Stability 1%, Power Consumption 530W, Linear Polarization >100:1, Compact and Low Cost OEM Package. Applications for the fiber laser include Welding and Cutting of Highly-reflective Metals, Solar Cell Manufacturing, Semiconductor Wafer, Annealing, Laser Shows and Laser Projectors. Pulsed and Quasi-CW modes with pulse repetition rate of 30MHz and pulse duration of 1.5ns. Fiber laser average output power is 100 watts at a wavelength of 532nm.
