1070nm, 2000W CW Fiber Laser

IPG Photonics Model YLS-2000/20000-QCW
1070nm CW Fiber Laser
2000W Output Power
____________________________________________________________________

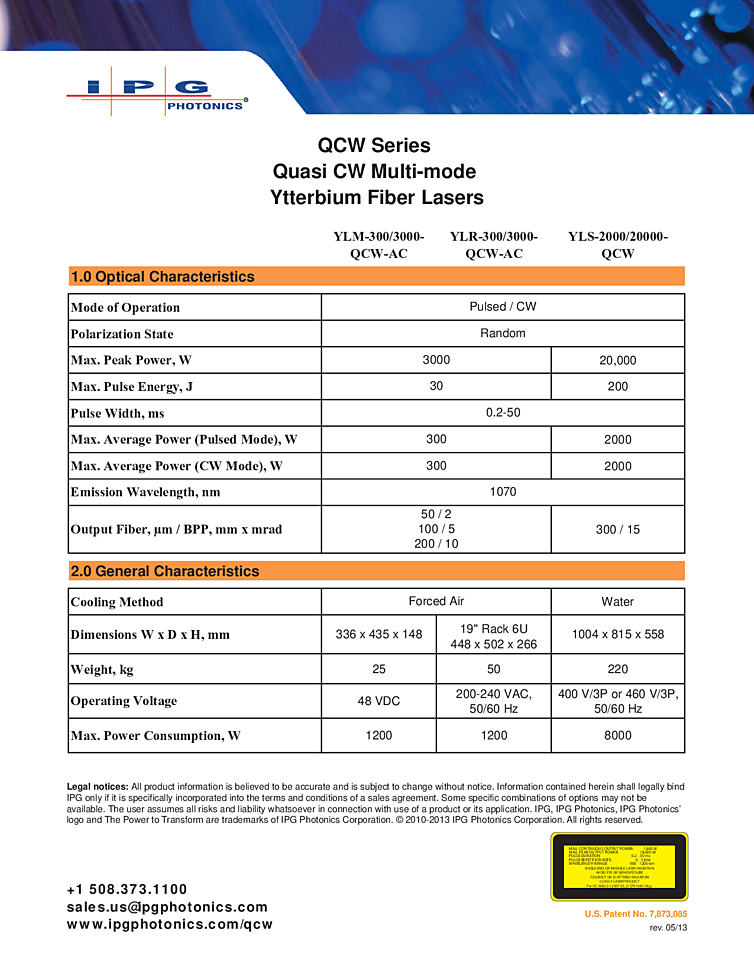

Typical Specifications

Optical:
- Mode of Operation: Pulsed / CW
- Polarization State: Random
- Emission Wavelength, nm: 1070

General:
- Cooling Method: Water
- Max. Power Consumption, W: 8000
- Max. Peak Power, W: 3000
- Operating Voltage: 400 V/3P or 460 V/3P, 50/60 Hz
- Max. Average Power (CW Mode), W: 2000
- Max. Average Power (Pulsed Mode), W: 1000
- Dimensions W x D x H, mm: 1004 x 815 x 558
- Output Fiber, μm / BPP, mm x mrad: 50 / 2
- Pulse Energy, J: 300
- Pulse Width, ms: 0.2 - 50
- Pulse Repetition Rate: 0 - 5 kHz

Description:

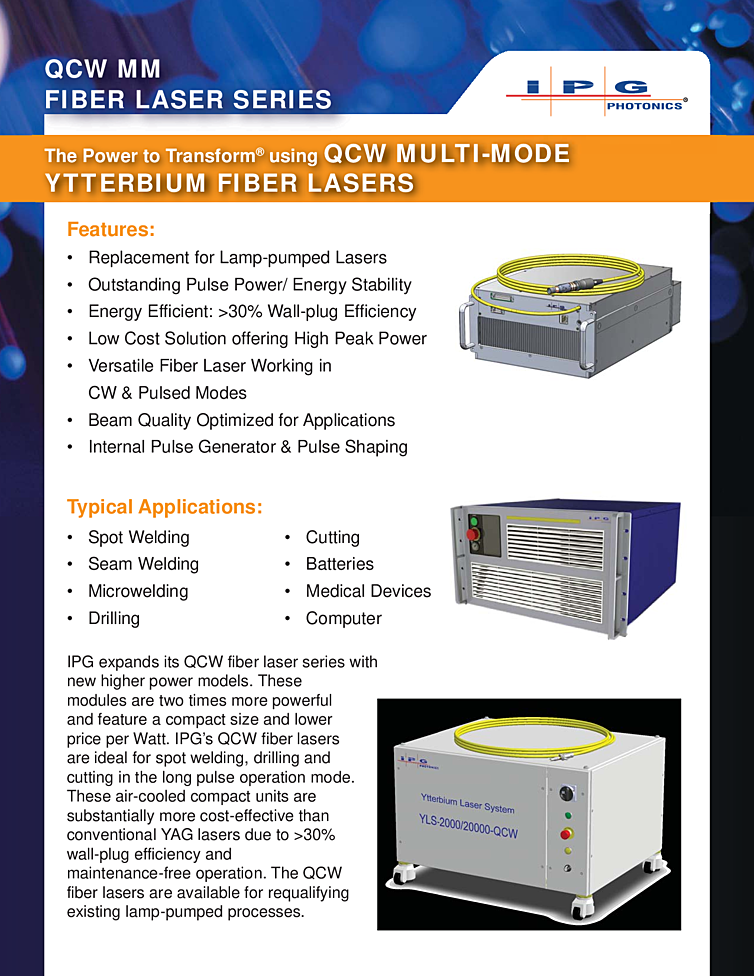

Fiber laser with Quasi-CW high power output from IPG Photonics. Key features of the fiber laser are Outstanding Pulse Power/ Energy Stability, Energy Efficient: >30% Wall-plug Efficiency, Low Cost Solution offering High Peak Power, Versatile Fiber Laser Working in CW & Pulsed Modes, Optimized Beam Quality, and Internal Pulse Generator & Pulse Shaping. Typical applications include Spot Welding, Seam Welding, Microwelding, Drilling, Cutting, Batteries and Medical Devices. CW and Pulsed modes of operation with maximum peak power of 20,000 watts or 200J. IPG Photonics fiber laser output at 1070nm and 2000 watt average output power.
