2000nm, 5W Nanosecond Fiber Laser

Nuphoton Technologies Model TDFL-Nano-2000-4-20-5-FCA
2000nm Nanosecond Laser
5W Output Power

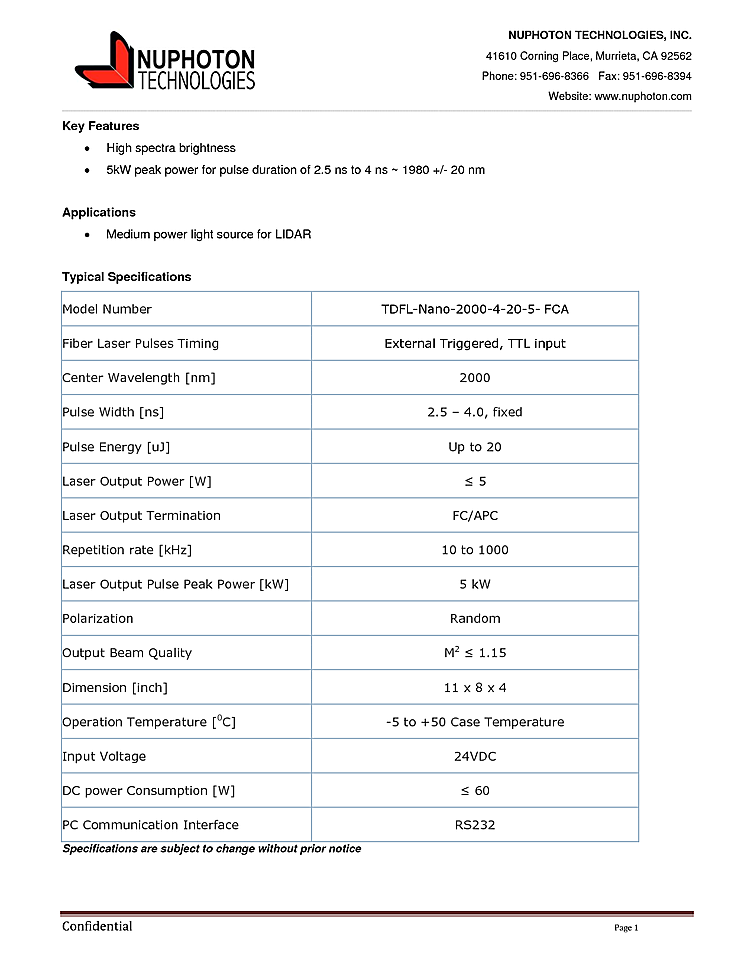

Typical Specifications:
- Fiber Laser Pulses Timing: External Triggered, TTL input
- Center Wavelength [nm]: 2000
- Pulse Width [ns]: 2.5 – 4.0, fixed
- Pulse Energy [uJ]: Up to 20
- Laser Output Power [W]: ≤ 5
- Laser Output Termination: FC/APC
- Repetition rate [kHz]: 10 to 1000
- Laser Output Pulse Peak Power [kW]: 5 kW
- Polarization: Random

Description:
Nanosecond fiber laser with high spectral brightness from Nuphoton Technologies. The fiber laser was designed as a LIDAR source. Nanosecond pulse width that is fixed at the factory between 2.5ns - 4.0ns with a pulse repetition rate between 10 kHz to 100 kHz. Output beam quality is less than 1.15 M2. Peak output power up to 5kW with peak energy of 20µJ. Fiber laser output wavelength is 2000nm.
