1560nm, 10mW Picosecond Fiber Laser

Nuphoton Technologies EDFL-Pico-1560-4.5-35-FCA
1560nm Picosecond Laser
10mW Output Power

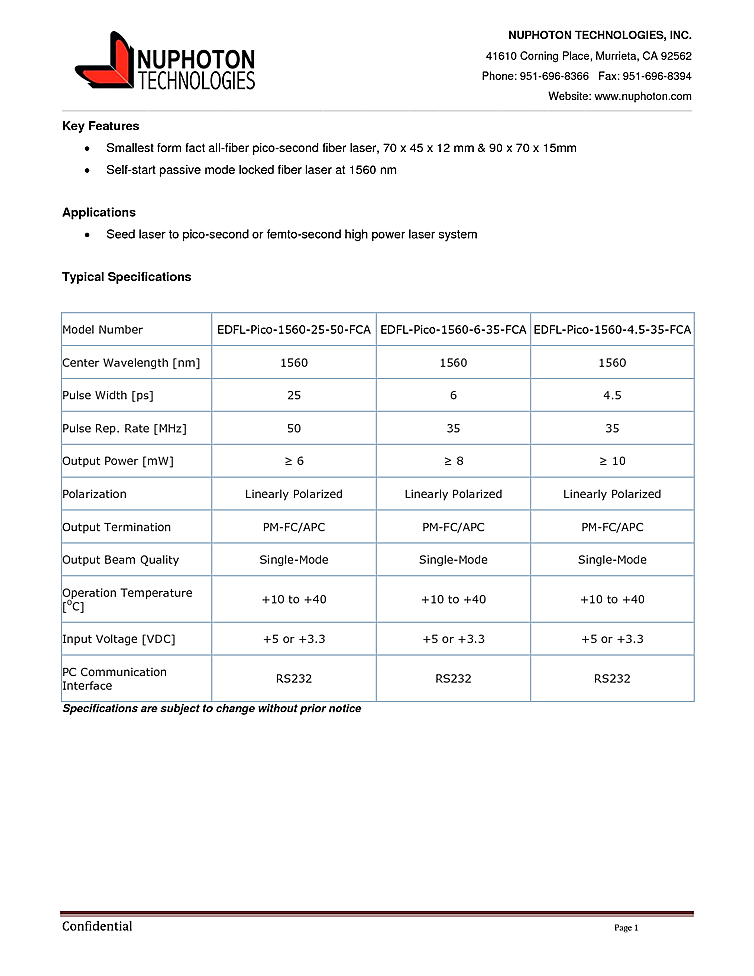

Typical Specifications:
- Center Wavelength [nm]: 1560
- Pulse Width [ps]: 4.5
- Pulse Rep. Rate [MHz]: 35
- Output Power [mW]: ≥ 10
- Polarization: Linearly Polarized
- Output Termination: PM-FC/APC
- Output Beam Quality: Single-Mode
- Operation Temperature [°C]: +10 to +40
- Input Voltage [VDC]: +5 or +3.3
- PC Communication Interface: RS232

Description:
Nuphoton Technologies picosecond fiber laser designed for seeding applications of high power picosecond and femtosecond laser systems. Compact laser with built in self-start mode for OEM applications. Pulse widths as low as 4.5ps with pulse repetition rates up to 50 MHz (pulse width of 25ps). Picosecond fiber laser output power up to 10mW at a wavelength of 1560nm.
