690nm-1020nm, 2W Tunable Femtosecond Laser

Coherent Chameleon Ultra
690nm-1020nm Femtosecond Laser
2W Output Power

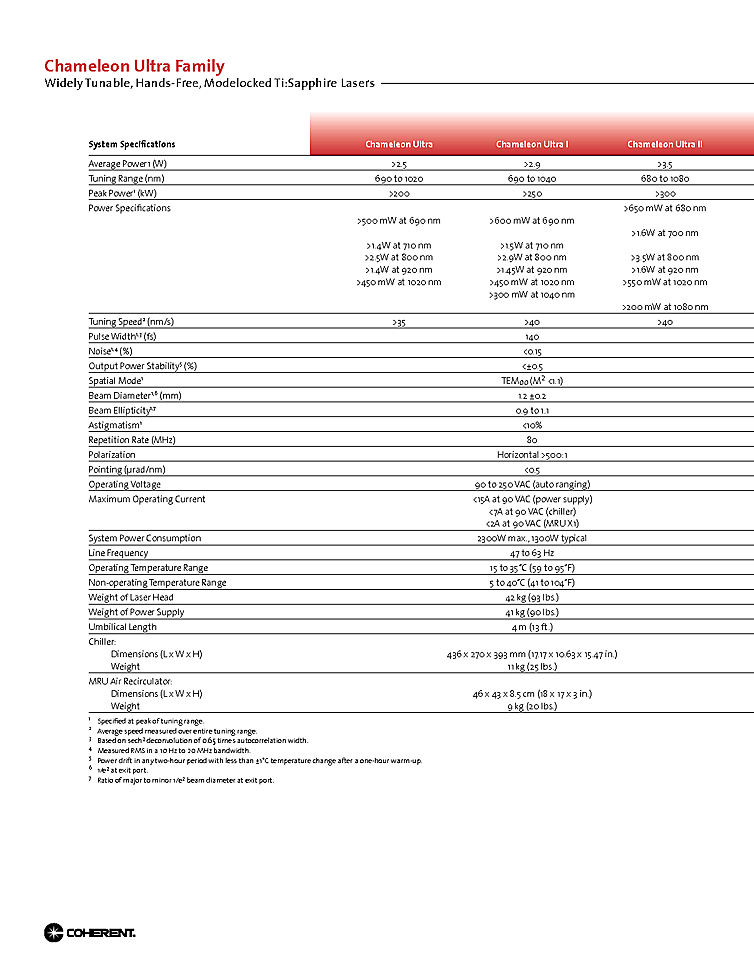

Typical Specifications:
- Average Power1 (W): >2.5
- Tuning Range (nm): 690 to 1020
- Peak Power1 (kW): >200
- Power Specifications:
- >650 mW at 680 nm
- >500 mW at 690 nm
- >1.6W at 700 nm
- >1.4W at 710 nm
- >2.5W at 800 nm
- >1.4W at 920 nm
- >450 mW at 1020 nm
- Tuning Speed2 (nm/s): >35
- Pulse Width1,3 (fs): 140
- Noise1,4 (%): <0

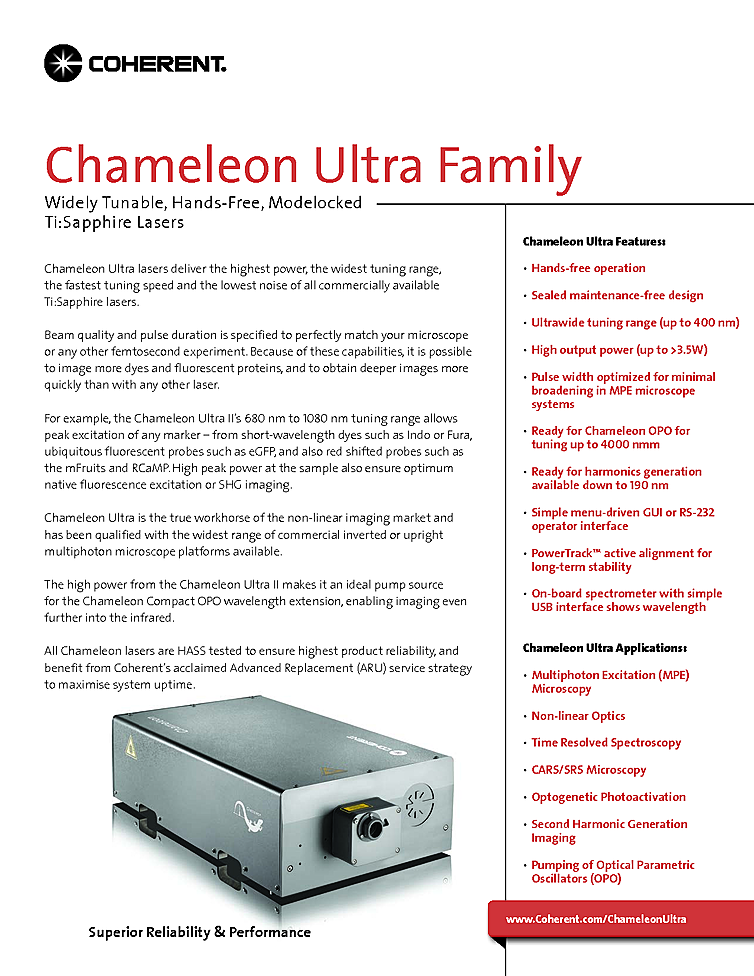

Description:
Coherent Ti:Sapphire laser is a hands free widely tunable mode-locked laser. Femtosecond laser applications include Multiphoton Excitation, Microscopy, Non-linear Optics, Time Resolved Spectroscopy, Optogenetic Photo-activation, Second Harmonic Generation Imaging, and Pumping of Optical Parametric Oscillators. Coherent laser features include sealed maintenance-free design, up to 400nm tuning range, high output power (up to >3.5W), pulse width optimized for minimal broadening in microscope applications, systems, ready for harmonics generation available down to 190nm, simple menu-driven GUI or RS-232 operator interface and on-board spectrometer with simple USB interface shows wavelength. Coherent nanosecond laser output power is up to 2 watts over a wavelength range of 690nm-1020nm.
