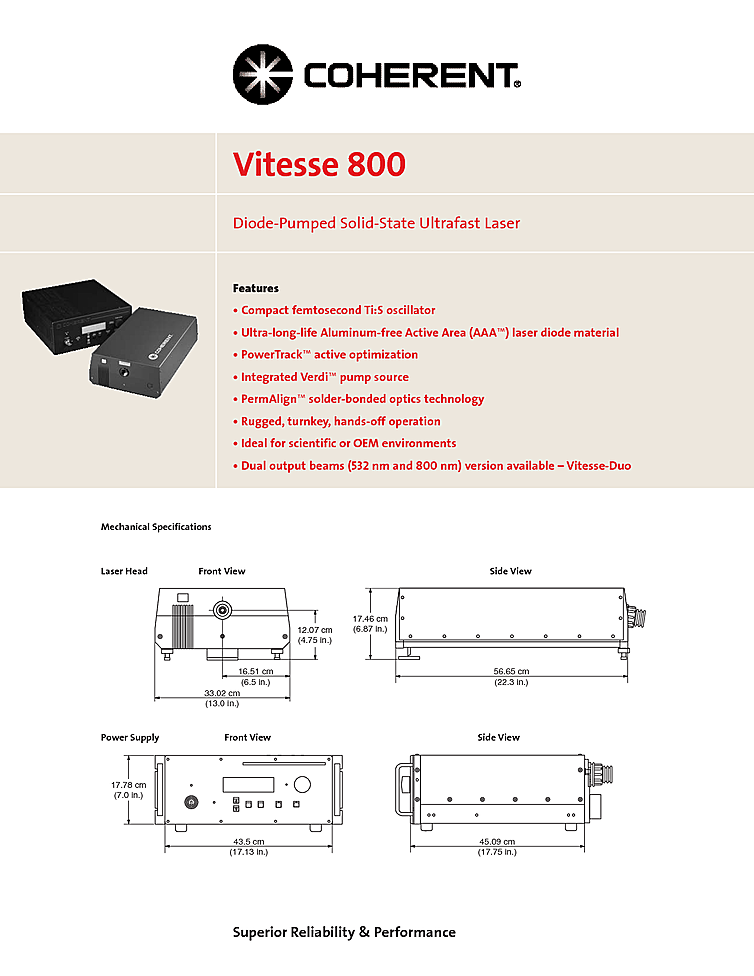

800nm, 750mW Femtosecond Laser

Coherent Model Vitesse 800-5
800nm Femtosecond Laser
750mW Output Power

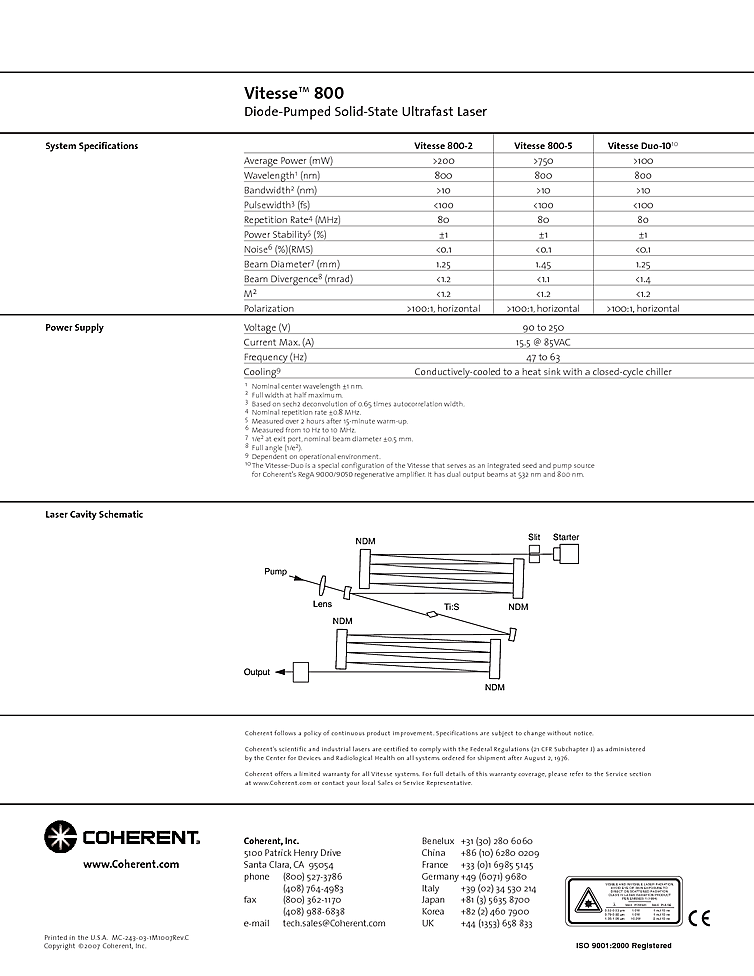

Typical Specifications:
- Average Power (mW): >750
- Wavelength (nm): 800
- Bandwidth (nm): >10
- Pulsewidth (fs): <100
- Repetition Rate (MHz): 80
- Power Stability (%): ±1
- Noise (%)(RMS): <0.1
- Beam Diameter (mm): 1.45
- Beam Divergence (mrad): <1.1
- M²: <1.2
- Polarization: >100:1, horizontal
- Voltage (V): 90 to 250
- Current Max: 15.5 @ 85VAC

Description:
Ti: Sapphire Laser with femtosecond pulse output from Coherent. Compact design and high quality laser diode pump source provide long laser lifetime. Ideal for scientific or OEM applications with hands-off and turnkey operation. Femtosecond laser has an optional dual output wavelengths of 532nm and 800nm. Repetition rate is 80MHz with a pulsewidth of 100fs. Power stability is +/-1% with noise less then 0.1% (rms). Beam quality is M2<1.2 with a divergence of 1.1mrad and beam diameter of 1.75mm. Femtosecond laser average output power is 750mW at a wavelength of 800nm.
