775nm, 1mJ Femtosecond Laser

Clark-MXR CPA-Series
775nm Femtosecond Laser
1mJ Pulse

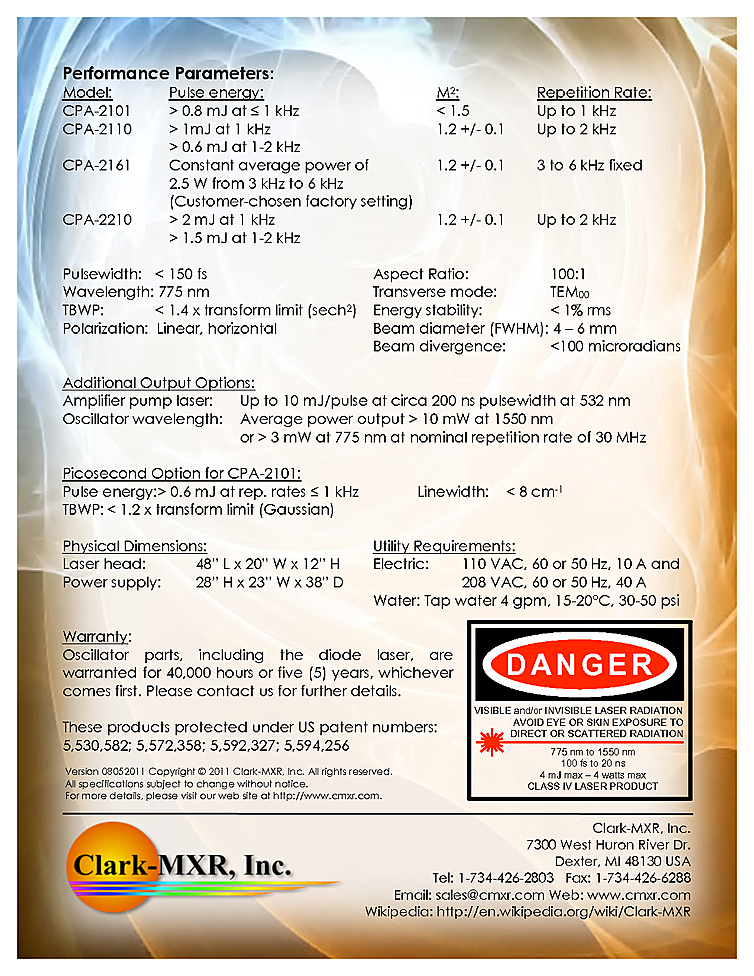

Typical Specifications:
- Pulsewidth: < 150 fs
- Wavelength: 775 nm
- TBWP: < 1.4 x transform limit (sech^2)
- Polarization: Linear, horizontal
- Aspect Ratio: 100:1
- Transverse mode: TEM00
- Energy stability: < 1% rms
- Beam diameter (FWHM): 4 – 6 mm

Description:

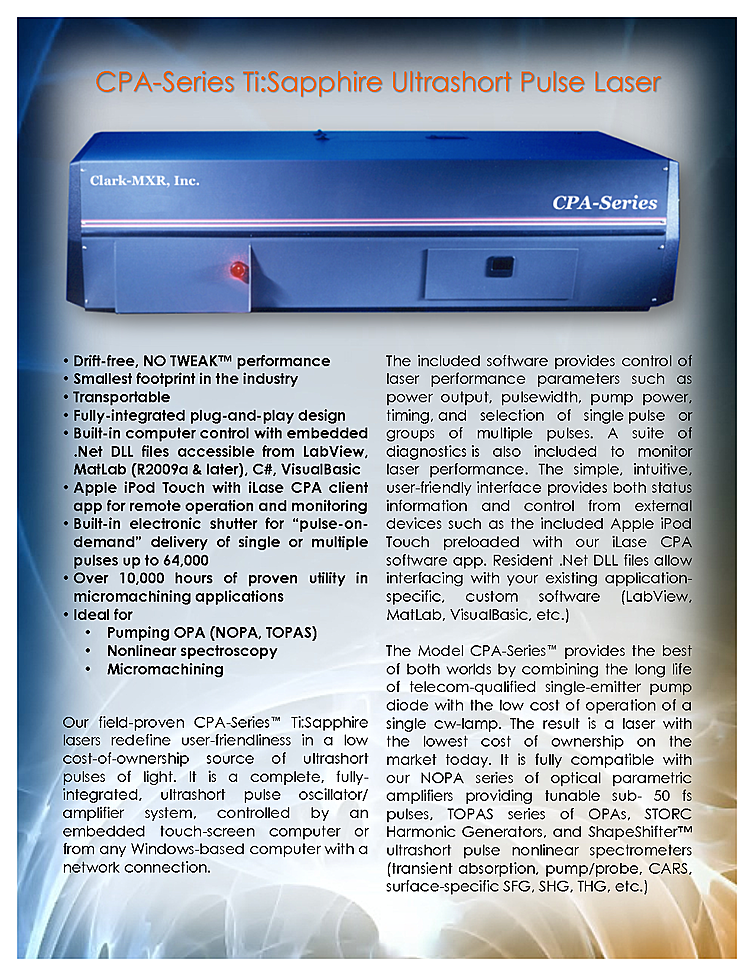

Femtosecond laser from Clark MXR. Key features of the laser include small footprint, transportable, fully-integrated plug-and-play design, and built-in electronic shutter for “pulse-on-demand” delivery of single or multiple pulses up to 64,000. The integrated computer control allows easy access from LabView, MatLab (R2009a & later), C#, and VisualBasic. For remote monitoring the femtosecond laser can interface to Apple iPod Touch. Ideal for applications in Pumping OPA (NOPA, TOPAS), Nonlinear spectroscopy and Micromachining. Pulsewidths <150fs with pulse repetition rate up to 2kHz. Clark MXR femtosecond laser with pulse energy output up to 1mJ at a wavelength of 775nm.
