515nm, 20µJ Femtosecond Laser

Onefive Model Origami-05 XP
515nm Femtosecond Laser
20µJ Pulse

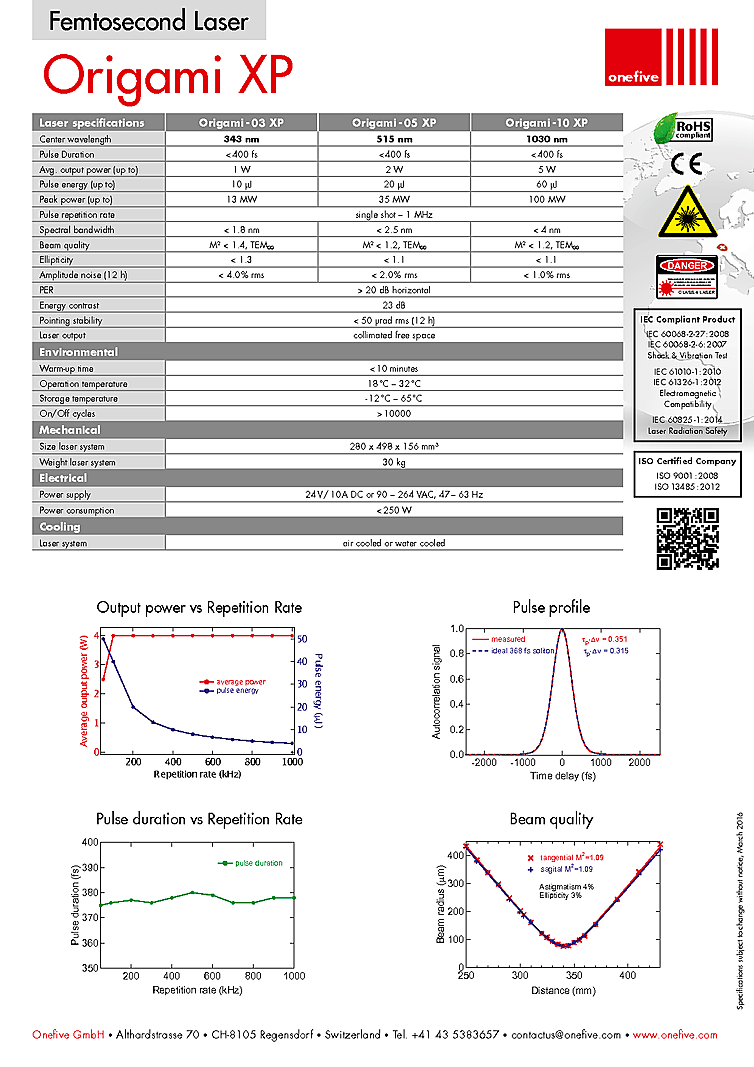

Typical Specifications:
- Center wavelength: 515 nm
- Pulse duration: < 400 fs
- Average output power (up to): 2 W
- Pulse energy (up to): 20 μJ
- Peak power (up to): 35 MW
- Pulse repetition rate: single shot - 1 MHz
- Spectral bandwidth: < 2.5 nm
- Beam quality: M2 < 1

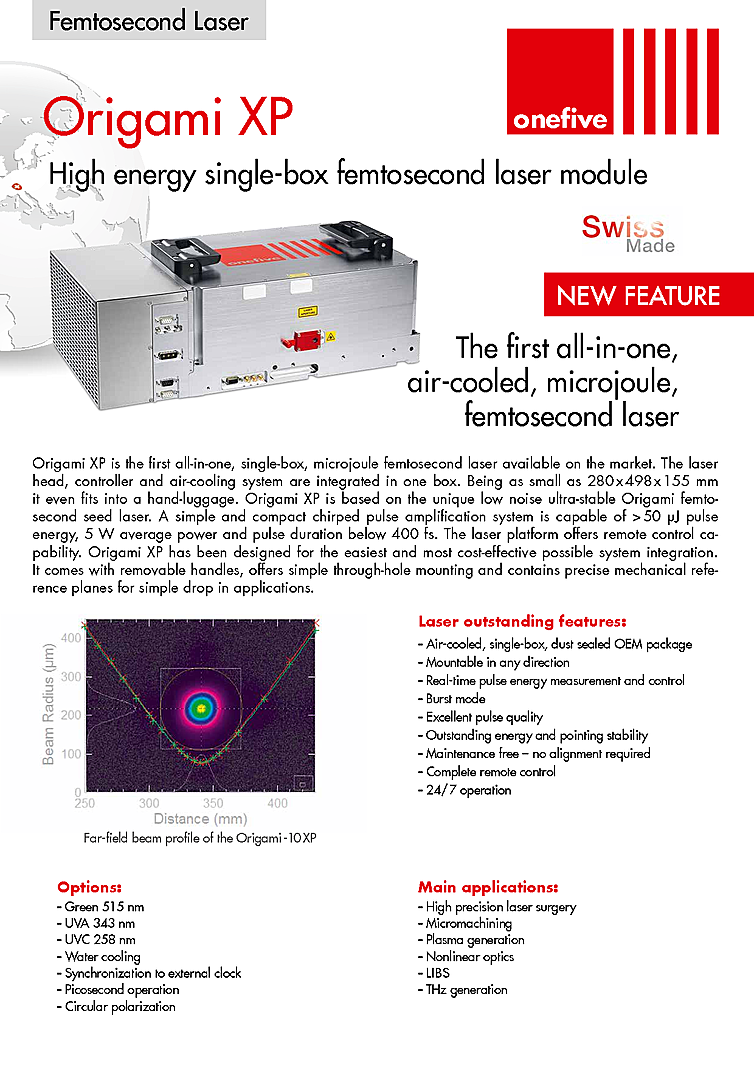

Description:
Femtosecond laser from Onefive designed for industrial applications and features air-cooled, single-box, dust sealed OEM package. The laser can be mounted in any direction and is designed for 24/7 maintenance free operation with no alignment required. Careful attention to the design ensure outstanding energy and pointing stability. Femtosecond laser has burst mode with a beam quality of M2<1.2. Applications for the laser include High precision laser surger, Micromachining, Plasma generation, Nonlinear optics, LIBS and THz generation. Femtosecond laser wavelength is 515nm with pulse energy of 20µJ.
