1045nm, 23nJ Femtosecond Laser

Spectra-Physics HighQ-2
1045nm Femtosecond Laser
23nJ Pulse

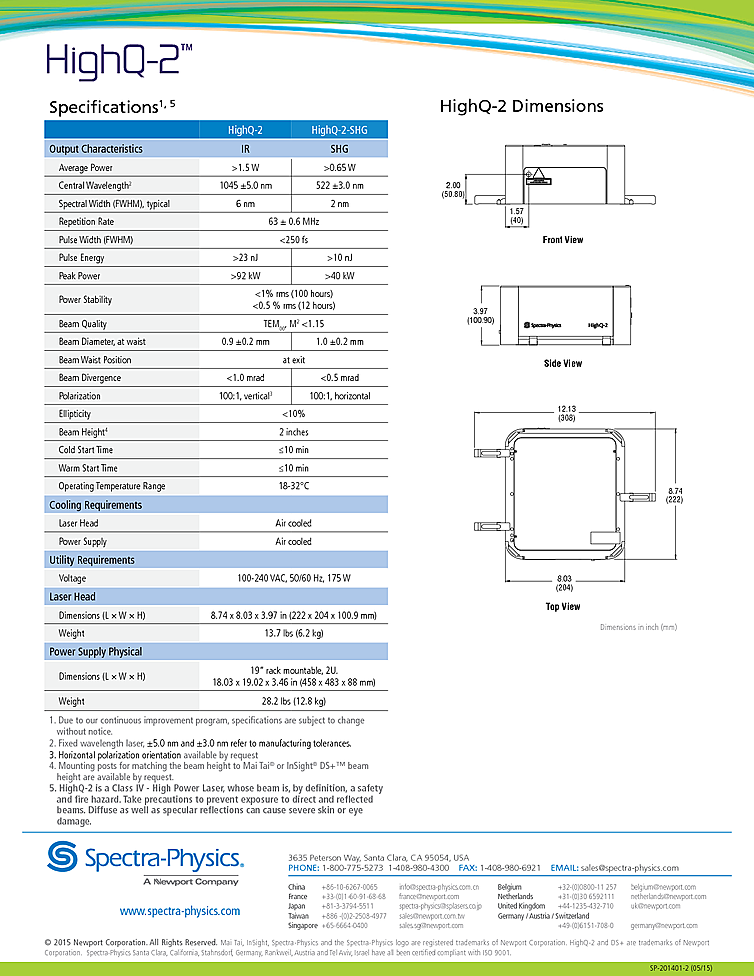

Typical Specifications:
- Average Power: >1.5 W
- Central Wavelength: 1045 ±5.0 nm
- Spectral Width (FWHM), typical: 6 nm
- Repetition Rate: 63 ± 0.6 MHz
- Pulse Width (FWHM): <250 fs
- Pulse Energy: >23 nJ
- Peak Power: >92 kW
- Power Stability:
- <1% rms (100 hours)
- <0.5 % rms (12 hours)
- Beam Quality: TEM00, M2 <1

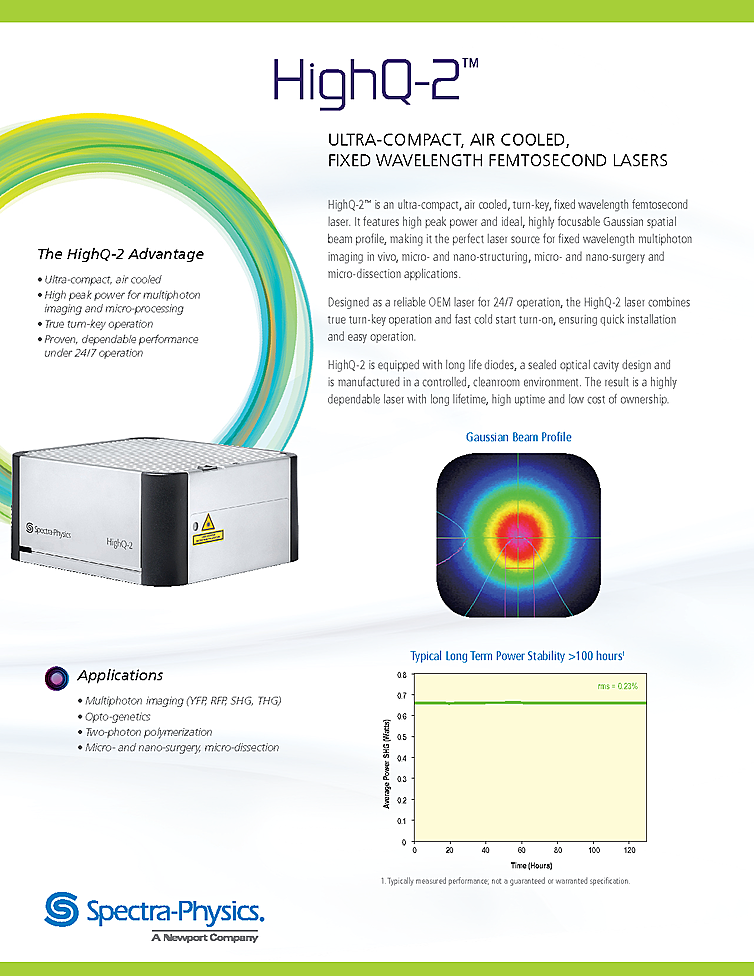

Description:
Femtosecond laser from Spectra-Physics with air-cooled compact design. Laser was designed for applications in multiphoton imaging, optogenetics, two-photon polymerization, and micro- and nano-surgery, micro-dissection. Fast setup is possible from true turn-key operation and femtosecond laser is proven, dependable performance under 24/7 operation. Pulse repetition frequency is 63MHz with pulse widths less than 250fs and average output power greater than 1.5 watts. Femtosecond laser with wavelength of 1045nm and output energy up to 23nJ.
