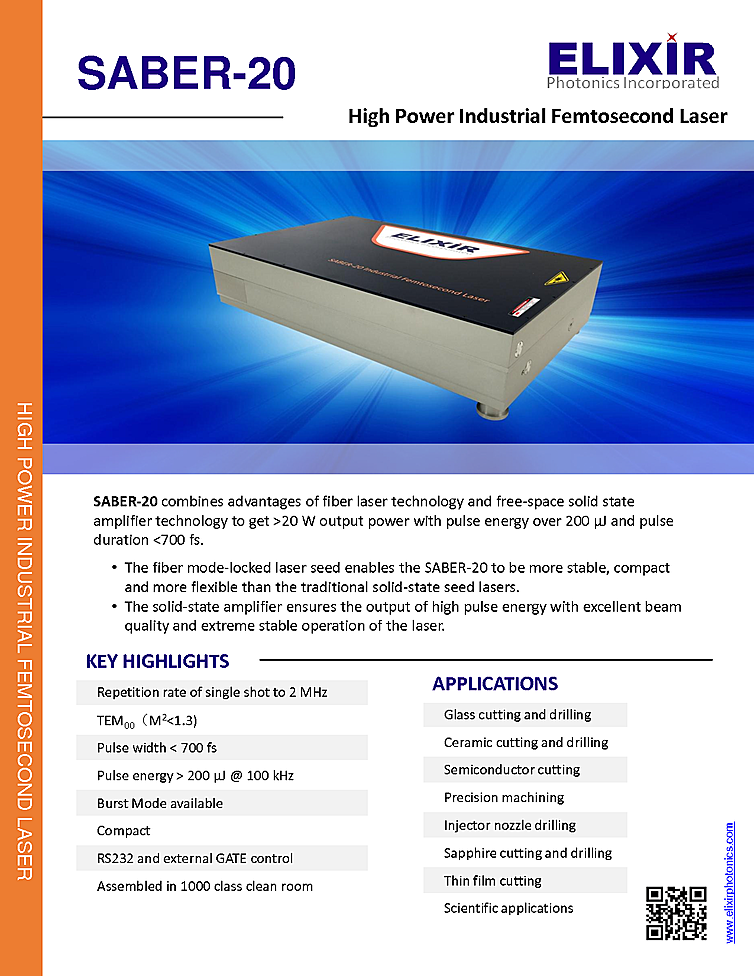

1030nm, 200µJ Femtosecond Laser

Elixir Photonics SABER-20
1030nm Femtosecond Laser
200µJ Pulse

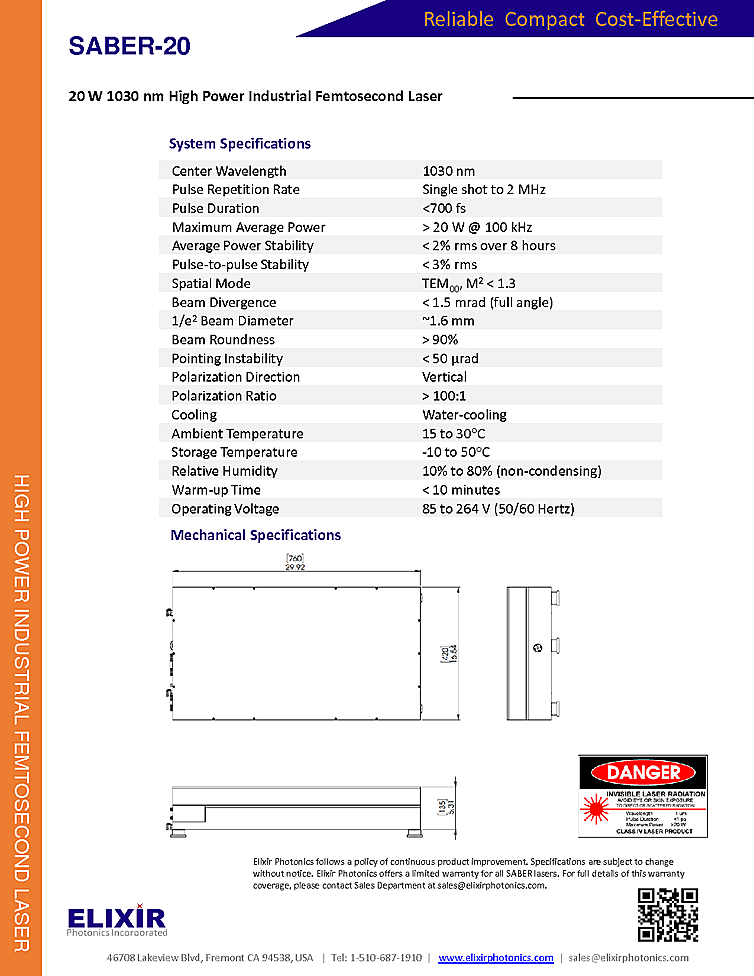

Typical Specifications:
- Center Wavelength: 1030 nm
- Pulse Repetition Rate: Single shot to 2 MHz
- Pulse Duration: <700 fs
- Maximum Average Power: > 20 W @ 100 kHz
- Average Power Stability: < 2% rms over 8 hours
- Pulse-to-pulse Stability: < 3% rms
- Spatial Mode: TEM00, M2 < 1
- Beam Divergence: < 1.5 mrad (full angle)
- 1/e2 Beam Diameter: ~1.6 mm
- Beam Roundness: > 90%
- Pointing Instability: < 50 μrad
- Polarization Direction: Vertical
- Polarization Ratio: > 100:1
- Cooling: Water-cooling
- Ambient Temperature: 15 to 30C

Description:
Femtosecond laser from Exlixir Photonics was designed for applications in cutting and drilling glass, cermic, semiconductor, sapphire, injection nozzle and thin films. In addition the laser can be used for precision machining and scientific applications. Key features of the femtosecond are the compact design, TEM00 with M2<1.3, burst mode, and RS-232 remote communication with external GATE control. Repetition rate of single shot to 2 MHz with a pulse width less then 700fs. Femtosecond laser which is mode-locked has wavelength output of 1030nm with output energy of 200µJ.
