1030nm, 160µJ Femtosecond Laser

Coherent-Rofin StarFemto L
1030nm Femtosecond Laser
160µJ Pulse

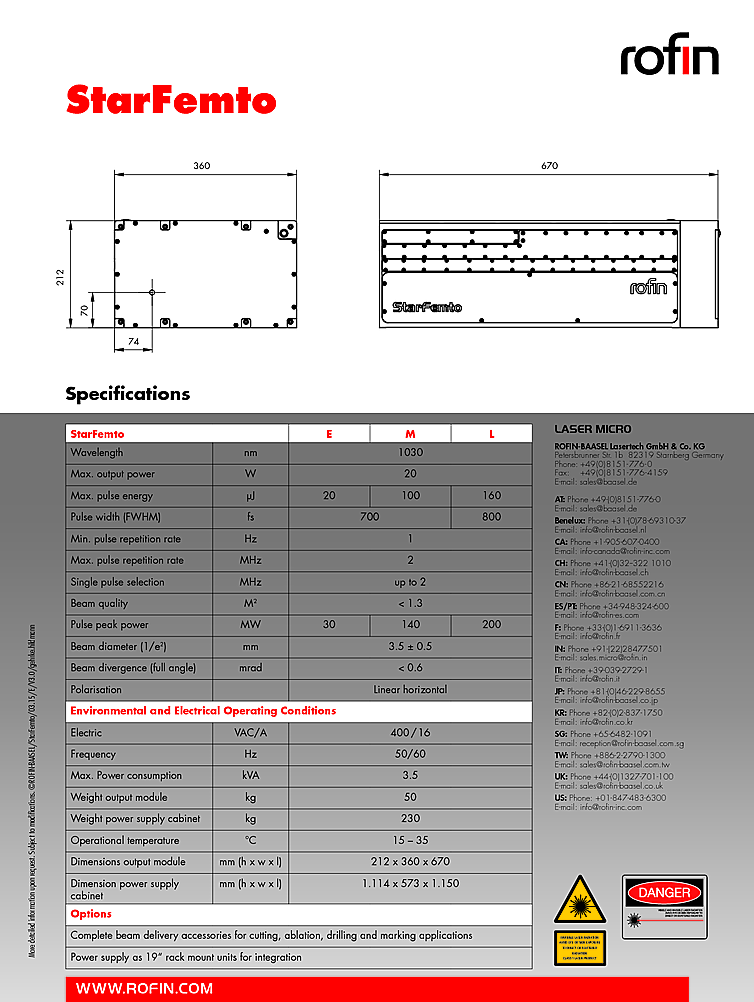

Typical Specifications:
- Wavelength: 1030 nm
- Max. output power: 20 W
- Max. pulse energy: 20 μJ
- Pulse width (FWHM): 700 fs
- Min. pulse repetition rate: 1 Hz
- Max. pulse repetition rate: 2 MHz
- Single pulse selection: up to 2 MHz
- Beam quality: M² < 1.3
- Pulse peak power: 30 MW
- Beam diameter (1/e²): 3.5 ± 0.5 mm
- Beam divergence (full angle): < 0.6 mrad
- Polarisation: Linear horizontal
- Environmental and Electrical Operating Conditions:
- Electric VAC/A: 400 / 16
- Frequency: 50/60 Hz
- Max. Power consumption: 3.5 kVA

Description:
Femtosecond laser from Rofin was optimized for process quality and productivity. Laser features programmable burst mode, fast parameter change and integration packages for various applications. Laser output frequency can is from single pulse up to 2 MHz with pulse widths of 700 femtoseconds. Average output power up to 20 watts with peak output power of 200 MW. Beam divergence is less then 0.6mrad with beam quality M2<1.3. Laser was designed for applications in high precision cutting, surface structuring, drilling and marking of almost all materials without thermal damage. Femtosecond laser wavelength is 1030nm with output energy up to 160µJ.
