1028nm, 85µJ Femtosecond Laser

Light Conversion Carbide
1028nm Femtosecond Laser
85µJ Pulse

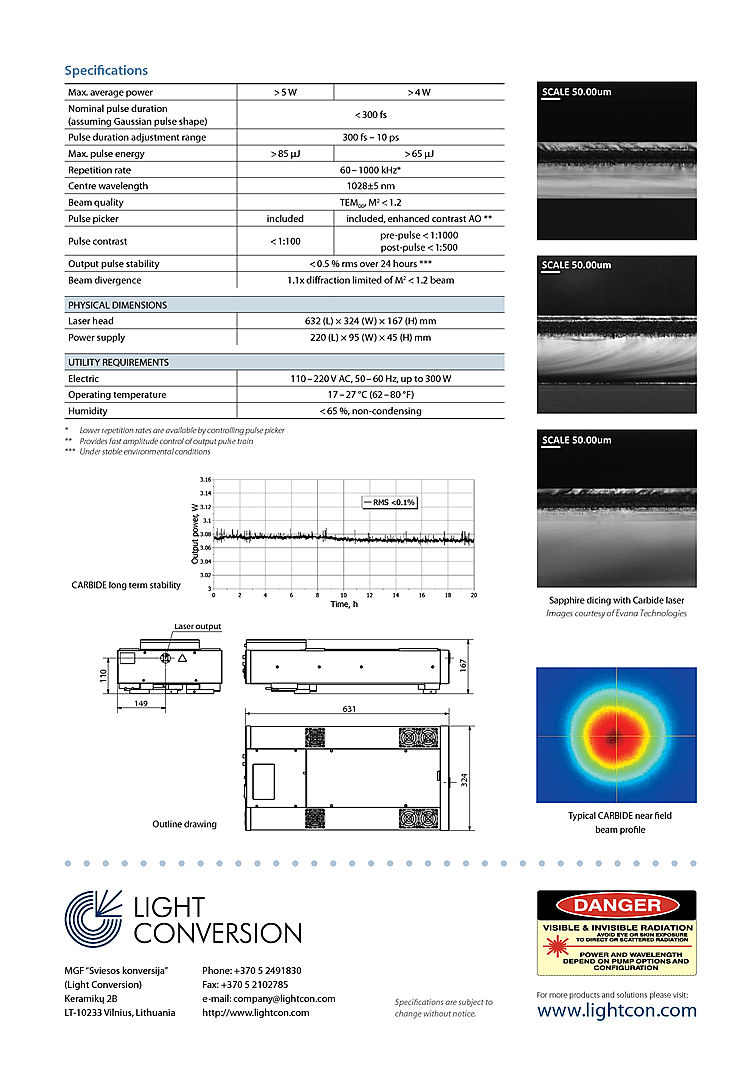

Typical Specifications:
- Pulse energy: > 85 μJ
- Repetition rate: 60 – 1000 kHz*
- Centre wavelength: 1028±5 nm
- Beam quality: TEM00, M2 < 1.2
- Pulse picker: included, enhanced contrast AO**
- Pulse contrast:
- pre-pulse: < 1:1000
- post-pulse: < 1:500
- Output pulse stability: < 0.5% rms over 24 hours***
- Beam divergence: 1.1x diffraction limited of M2 < 1.2 beam

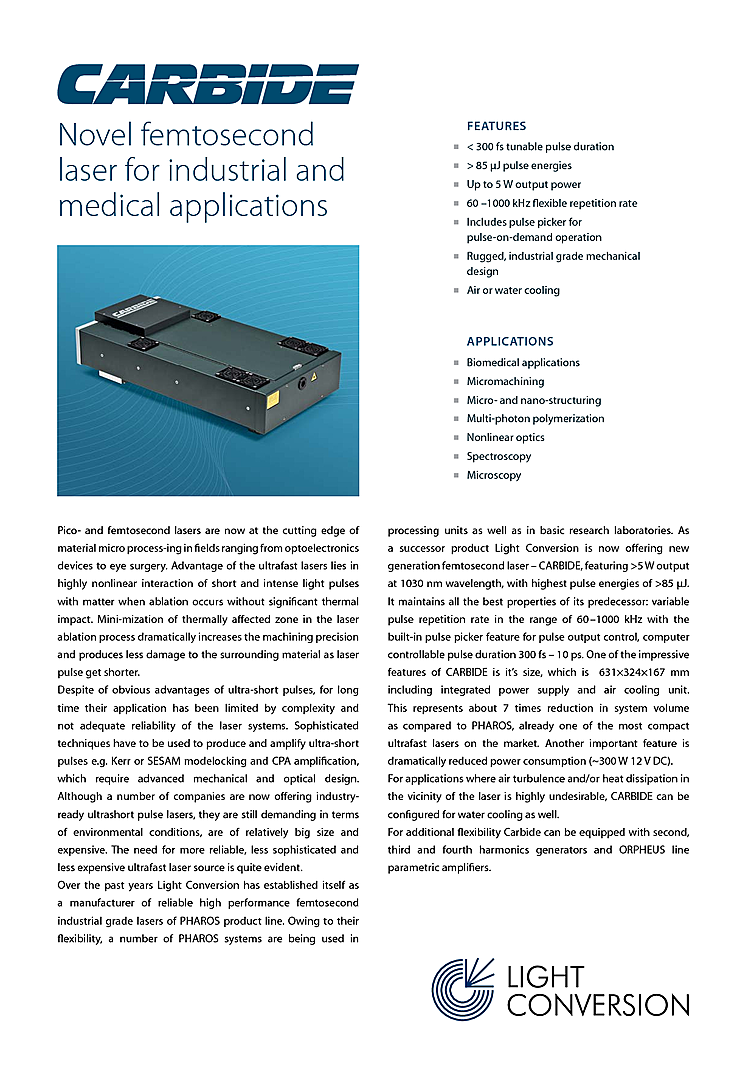

Description:
Femtosecond laser from Light Conversion is designed for applications in biomedical, micromachining, micro and nano structuring, multi photon polymerization, nonlinear optics, spectroscopy and microscopy. Tunable pulse duration less than 300fs, flexible repetition rate from 60-1000 kHz, pulse energies greater than 85 µJ, and output powers up to 5 watts. Laser also includes pulse picker for pulse-on-demand operation. Rugged, industrial grade mechanical design and can be either air or water cooled. Femtosecond laser wavelength output is 1028nm.
