589nm, 50mW CW Laser

CNI Laser Model MGL-S-589
589nm CW Laser
50mW Output Power
___________________________________________________________________

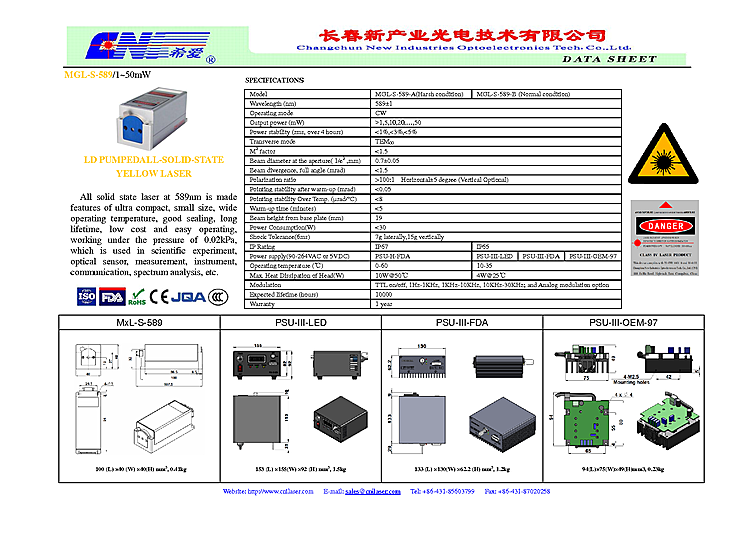

Typical Specifications:
- Wavelength (nm): 589±1
- Operating mode: CW
- Output power (mW): >1,5,10,20,…,50
- Power stability (rms, over 4 hours): <1%,<3%,<5%
- Transverse mode: TEM00
- M² factor: <1.5
- Beam diameter at the aperture (1/e², mm): 0.7±0.05
- Beam divergence, full angle (mrad): <1.5
- Polarization ratio: >100:1 Horizontal±5° (Vertical Optional)
- Pointing stability after warm-up (mrad): <0.05
- Pointing stability Over Temp. (μrad/°C): <8
- Warm-up time (minutes): <5
- Beam height from base plate (mm): 19
___________________________________________________________________
