355nm, 50mW UV Laser

COHERENT Model OBIS LG 355-50
355nm Laser
50mW Output Power
___________________________________________________________________

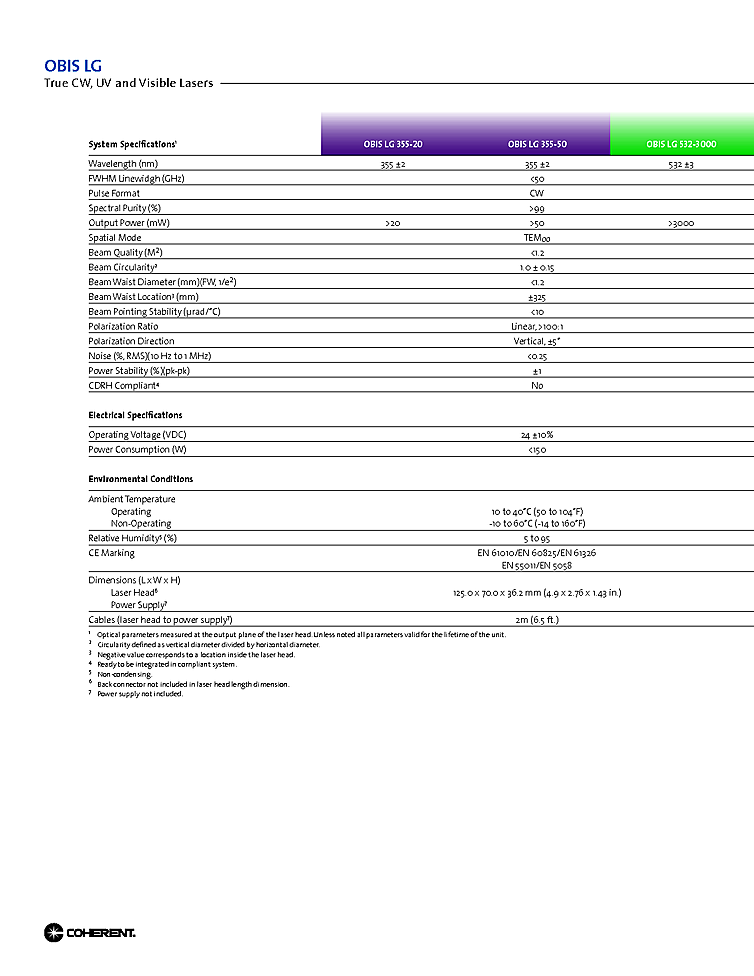

Typical Specifications

Optical:
- Wavelength (nm): 355 ±2
- FWHM Linewidth (GHz): <50
- Pulse Format: CW
- Spectral Purity (%): >99
- Output Power (mW): >50
- Spatial Mode: TEM00
- Beam Quality (M²): <1.2
- Beam Circularity: 1.0 ± 0.15
- Beam Waist Diameter (mm)(FW, 1/e²): <1
- Beam Waist Location (mm): ±325
- Beam Pointing Stability (μrad/°C): <10
- Polarization Ratio: Linear, >100:1
- Polarization Direction: Vertical, ±5°
- Noise (%, RMS)(10 Hz to 1 MHz): <0.25
- Power Stability (%)(pk-pk): ±1
- CDRH Compliant: No

Electrical:
- Operating Voltage (VDC): 24 ±10%
- Power Consumption (W): <150

Description:

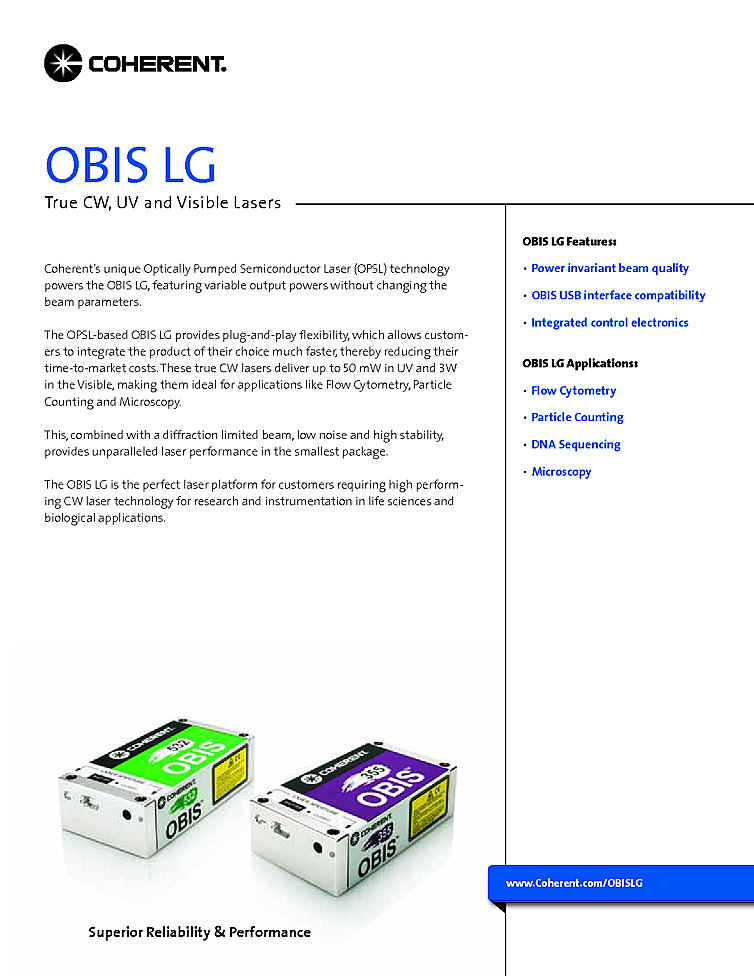

The CW laser was designed for applications in flow cytometry, particle counting, DNA sequencing, and microscopy. Key features include linewidth <50GHz (FWHM), beam quality M2<1.2, and USB interface. The laser uses Coherent's unique optically pumped semiconductor laser (OPSL) technology. The laser perfect platform for customers requiring high performing CW laser technology for research and instrumentation in life sciences and biological applications. Coherent designed and manufactured the CW laser to output at a wavelength of 355nm with output power of 50mW.
