260nm-500nm, 1W UV Laser

TekhnoScan Model FD-SF-07
260nm-500nm Laser
1W Output Power
___________________________________________________________________

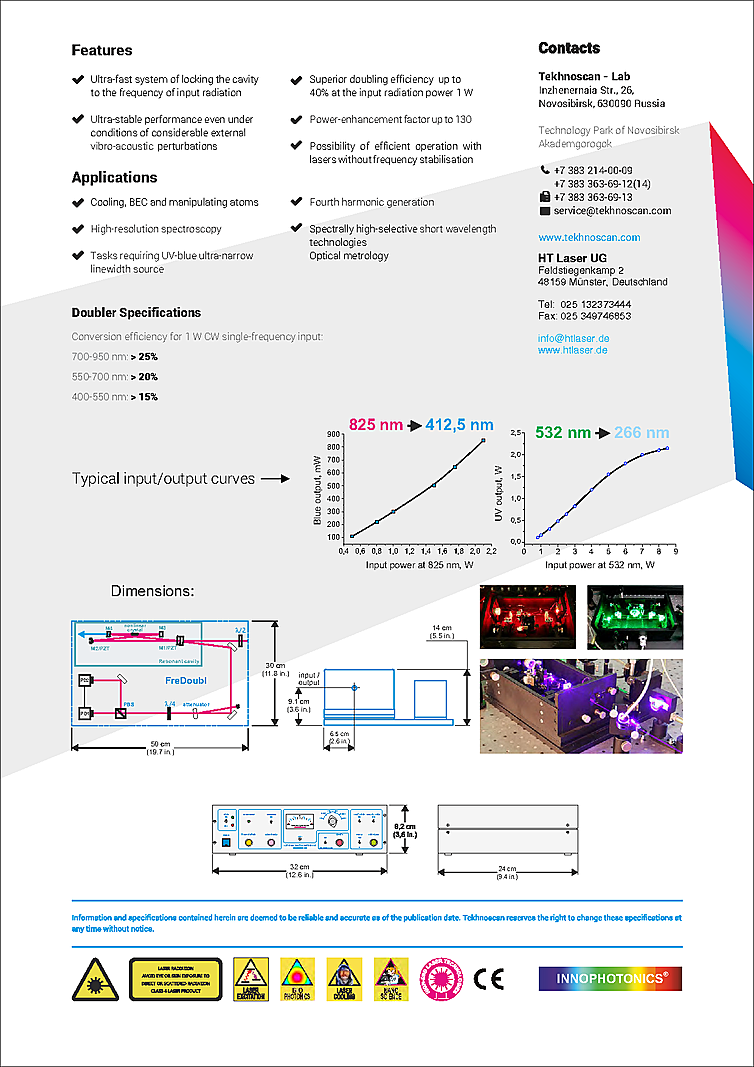

Doubler Specifications:
- Conversion efficiency for 1 W CW single-frequency input:
- 700-950 nm: > 25%
- 550-700 nm: > 20%
- 400-550 nm: > 15%
- Superior doubling efficiency up to 40% at 1W
- Power-enhancement factor up to 130
- Possibility of efficient operation with lasers w/0 frequency stabilization

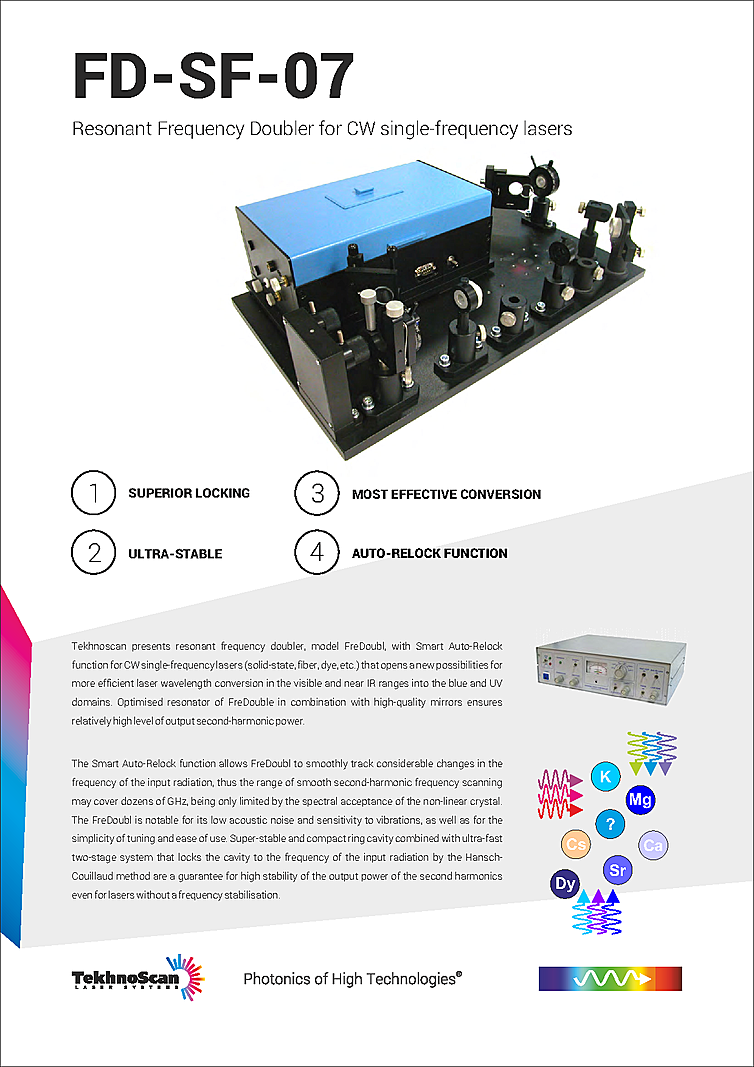

Description:
The resonant frequency doubler FD-SF-07 provides efficient generation of the second-harmonics of output radiation of CW single-frequency lasers such as Ti:Sapphire/Dye lasers, DPSS lasers (Nd:YVO4, Yb:YAG), fiber lasers (Yb, Er), and others. FD-SF-07 doubler features improved doubling efficiency and solid ultra-stable performance when pumped with frequency-unstabilized lasers or when operated under conditions of high external acoustic perturbations and vibrations. Rigid and compact ring cavity combined with ultra-fast two-stage system that locks the frequency of the cavity to the frequency of the input radiation are a guarantee for high stability of the output power of the second harmonic.
Optimized resonator in combination with high-quality mirrors and high performance AR coatings of the optical surfaces of the non-linear crystal ensures relatively high level of output second-harmonic power. Pumped with 1 W fundamental radiation power the doubler outputs: more than 250 mW within the 350-475 nm range (for 700-950-nm input), > 200 mW within the 275-350 nm range (for 550-700-nm input), and > 150 mW within the 244-275 nm range (for 488-550-nm input). In these conditions the maximum efficiency of conversion of the fundamental radiation into the second harmonics reaches 40% for Ti:Sapphire pump laser and 25% for green DPSS/Yb:YAG pump lasers (532/515 nm) at the output power of these lasers of >=1 W."
