CW Laser, 1064nm, 12 Watts

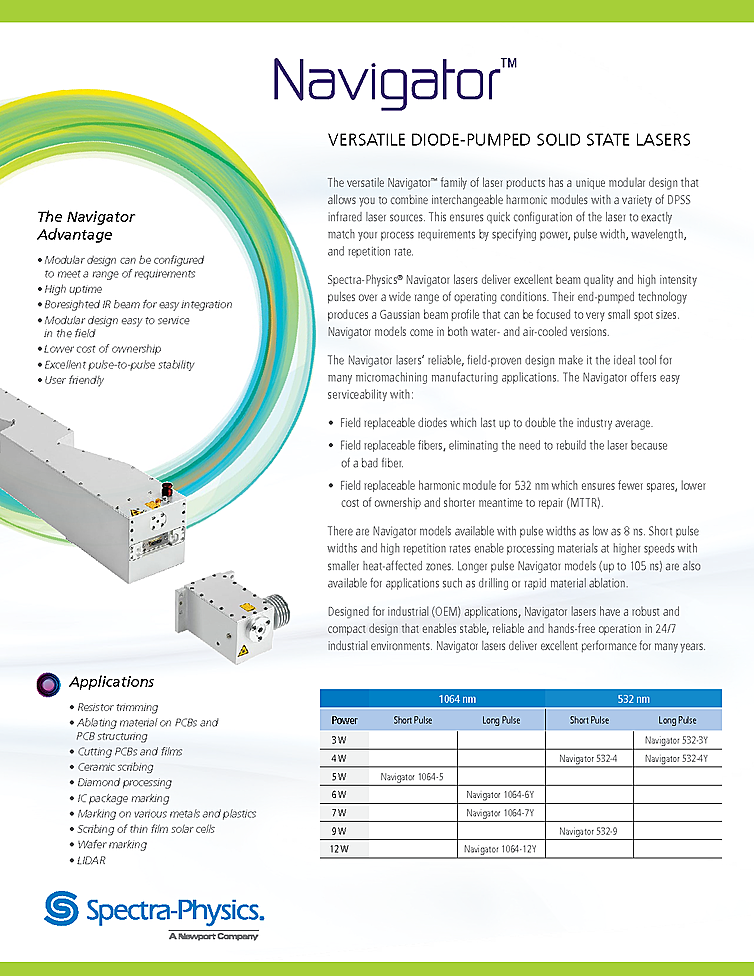

This Spectra-Physics CW laser has an maximum output power of 12 Watts at a 1064 nm wavelength. This Laser is a part of the Navigator family which provide quick configuration to process requirements via interchangeable harmonic modules.

The Navigator DPSS delivers high uptime, low cost of ownership, modular design for easy field service, IR beam for easy integration into pre-existing systems and high intensity pulses over a wide range of operating conditions. The Navigator pump end technology produces beam profiles that can be focused to minute sizes, and come in both water and air cooled versions.

Applications for the CW laser include Resistor trimming, Ablating material on PCBs and PCB structuring, Cutting PCBs and films, Ceramic scribing, Diamond processing, IC package marking, Marking on various metals and plastics, Scribing of thin film solar cells, Wafer marking, and LIDAR. The Navigators fields proven design make it an ideal tool for manufacturing applications while also offering easy and simple serviceability. Their compact design enables hands free operation 24/7 in industrial environments.

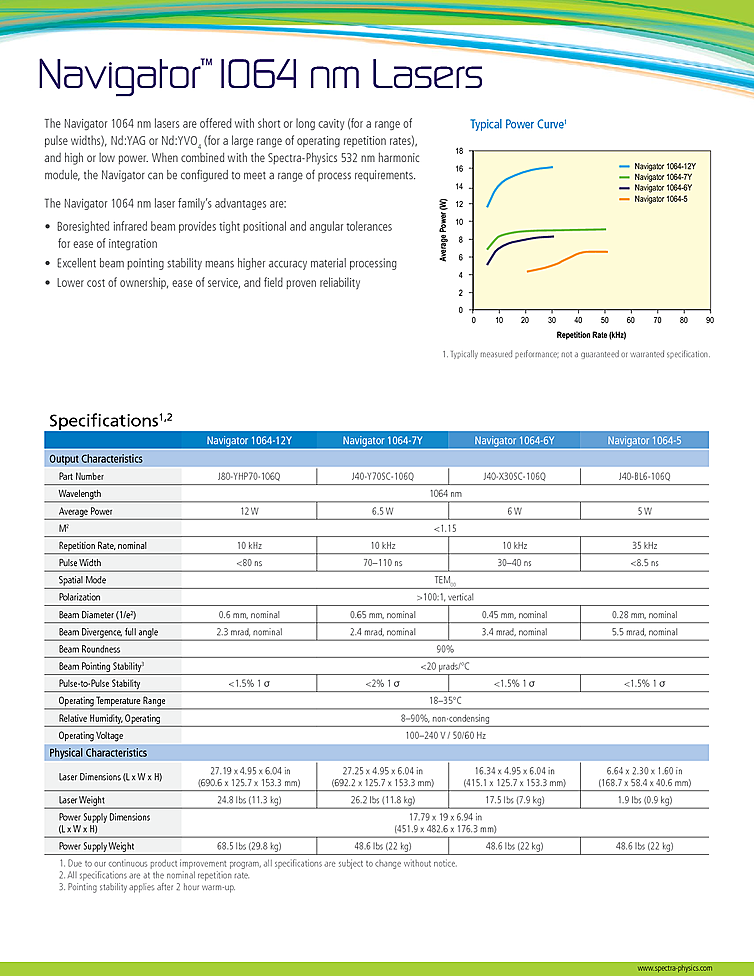

Review of Key Specifications:

Wavelength : 1064 nm

Maximum Output Power : 12 W

Repetition Rate, nominal : 10 kHz

Pulse Width : < 80 ns

Spatial Mode : TEM00
