CW Laser, 1064nm, 10W

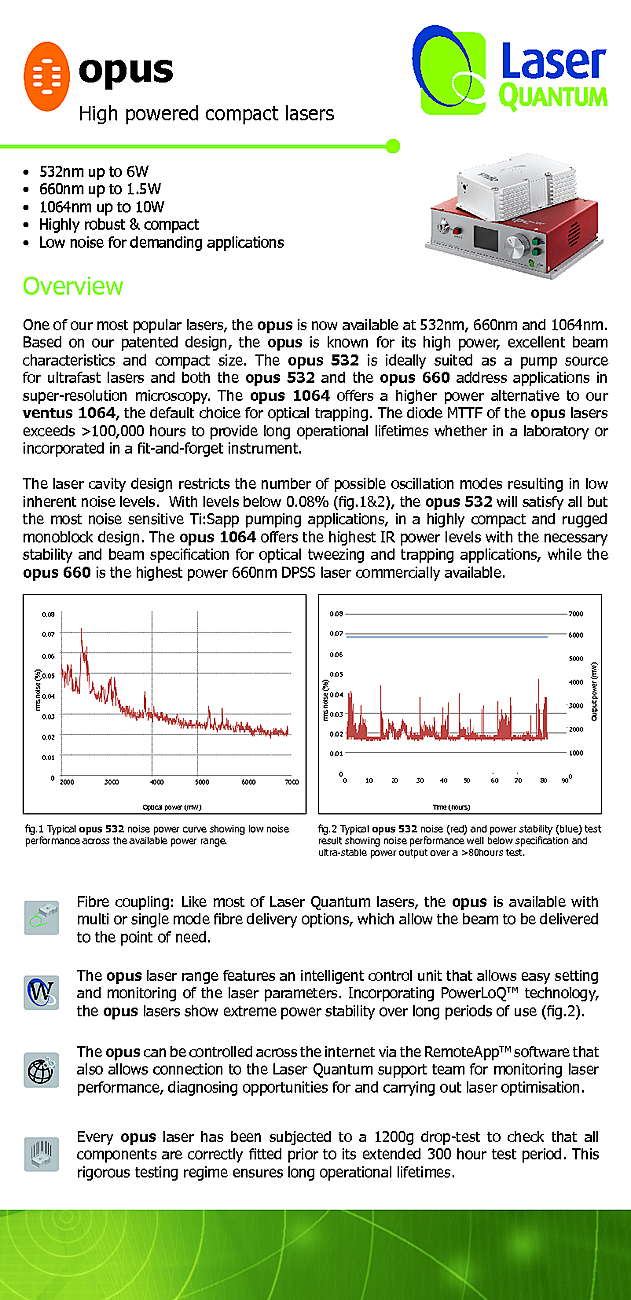

One of our most popular lasers, the opus is now available at 532nm, 660nm and 1064nm. Based on our patented design, the opus is known for its high power, excellent beam characteristics and compact size. The opus 532 is ideally suited as a pump source for ultrafast lasers and both the opus 532 and the opus 660 address applications in super-resolution microscopy. The opus 1064 offers a higher power alternative to our ventus 1064, the default choice for optical trapping. The diode MTTF of the opus lasers exceeds >100,000 hours to provide long operational lifetimes whether in a laboratory or incorporated in a fit-and-forget instrument. The laser cavity design restricts the number of possible oscillation modes resulting in low inherent noise levels. With levels below 0.08% (fig.1&2), the opus 532 will satisfy all but the most noise sensitive Ti:Sapp pumping applications, in a highly compact and rugged monoblock design. The opus 1064 offers the highest IR power levels with the necessary stability and beam specification for optical tweezing and trapping applications, while the opus 660 is the highest power 660nm DPSS laser commercially available.

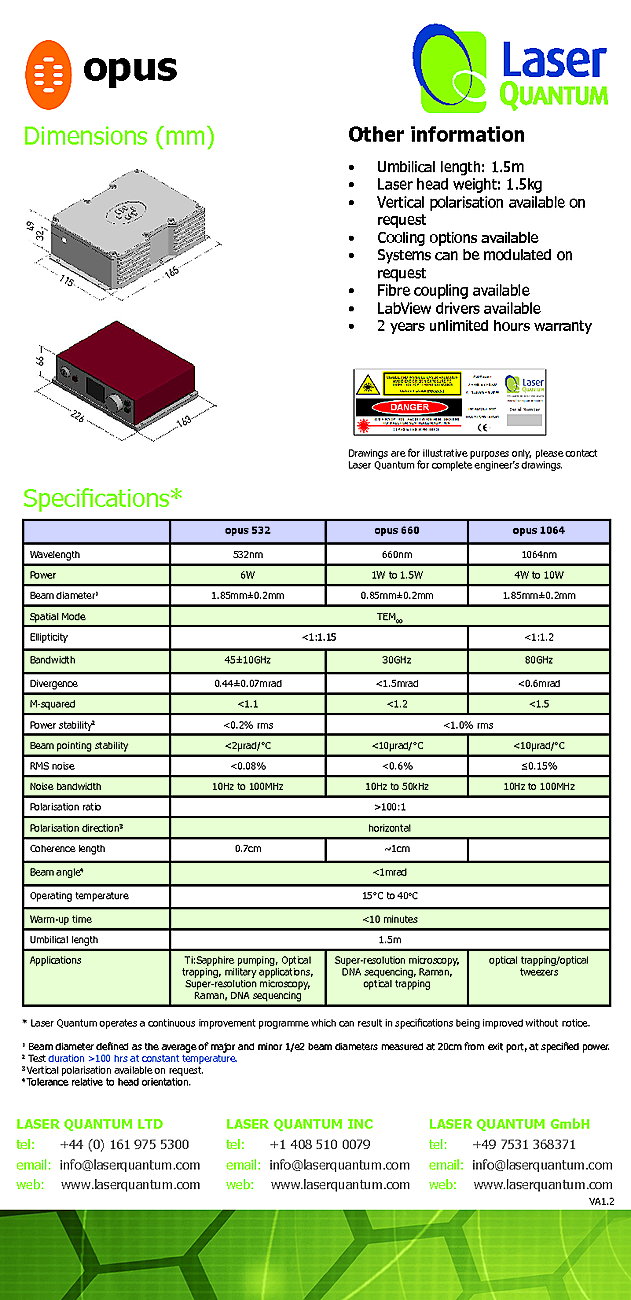

Review of Key Specifications:

Wavelength : 1064 nm

Maximum Output Power : 10 W

Beam Diameter : 1.85 mm

Spatial Mode : TEM00

Ellipticity : <1:1.2
