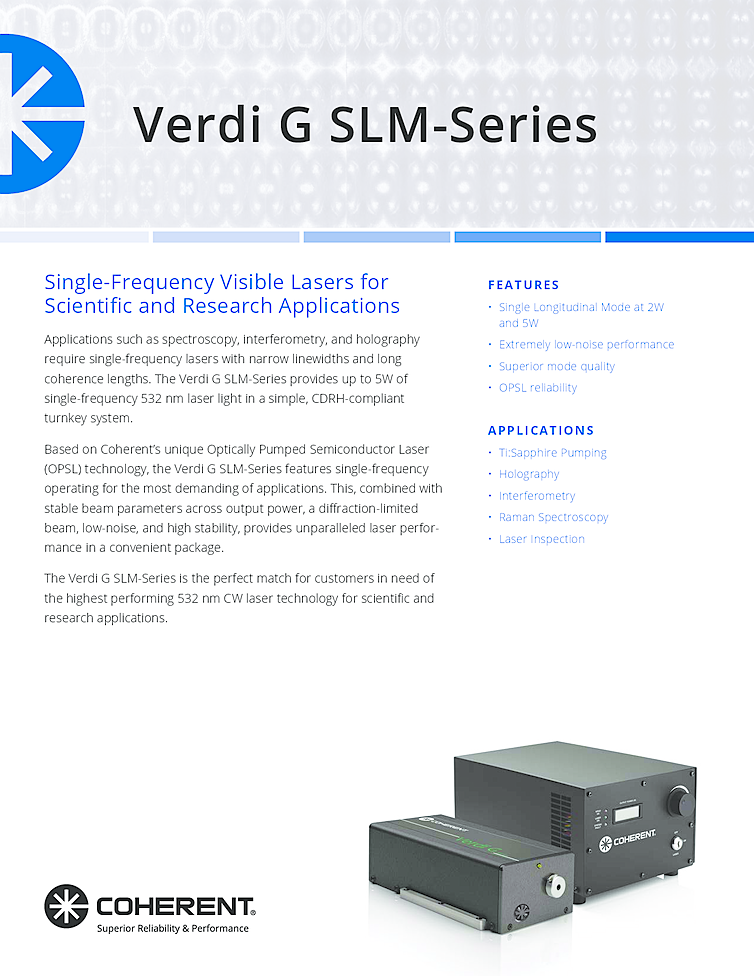

For applications requiring single frequency lasers with long coherence lengths such as interferometry, spectroscopy and holography this 532nm laser with 2000mW from Coherent will provide you the best performance. The Coherent Verdi G SLM makes setup simple by providing the end user a simple to use CDRH compliant 532nm turnkey system. The laser controller features remote control operation and intuitive GUI interface. To achieve the high performance and long term reliability the laser uses a patented Coherent technology called Optically Pump Semicondcutor Laser (OPSL). The OPSL design provides for superior beam quality and stability. Beam quality of less than 1.1 is achieved with this 532nm laser and the circularity is 1.0 ±0.1. The output power stability is ±<1% peak-peak with noise of <0.03% rms measured over 10 Hz to 100 Mhz.

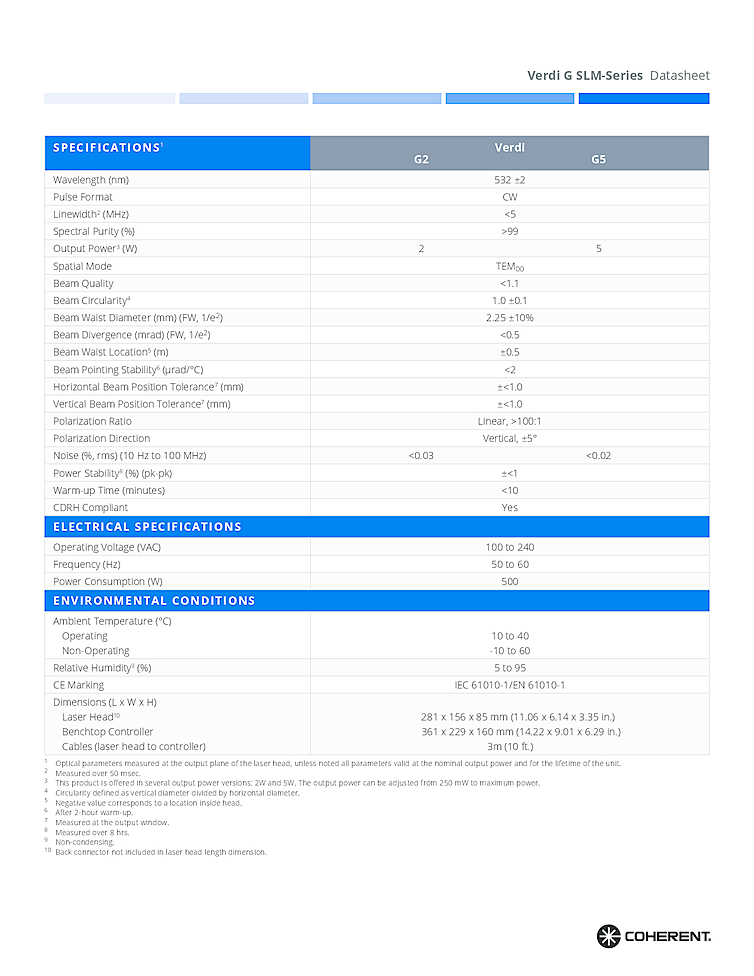

Review of Key Specifications:
Wavelength : 532 nm
Pulse Format : CW
Linewidth : < 5
Spectral Purity : 99 %
Spatial Mode : TEM00
Typical Applications
- Ti:Sapphire Pumping
- Holography
- Interferometry
- Raman Spectroscopy
- Laser Inspection
