532nm, 25mW CW Laser

Integrated Optics Model 0532L-23B
532nm Laser
25mW Output Power
____________________________________________________________________

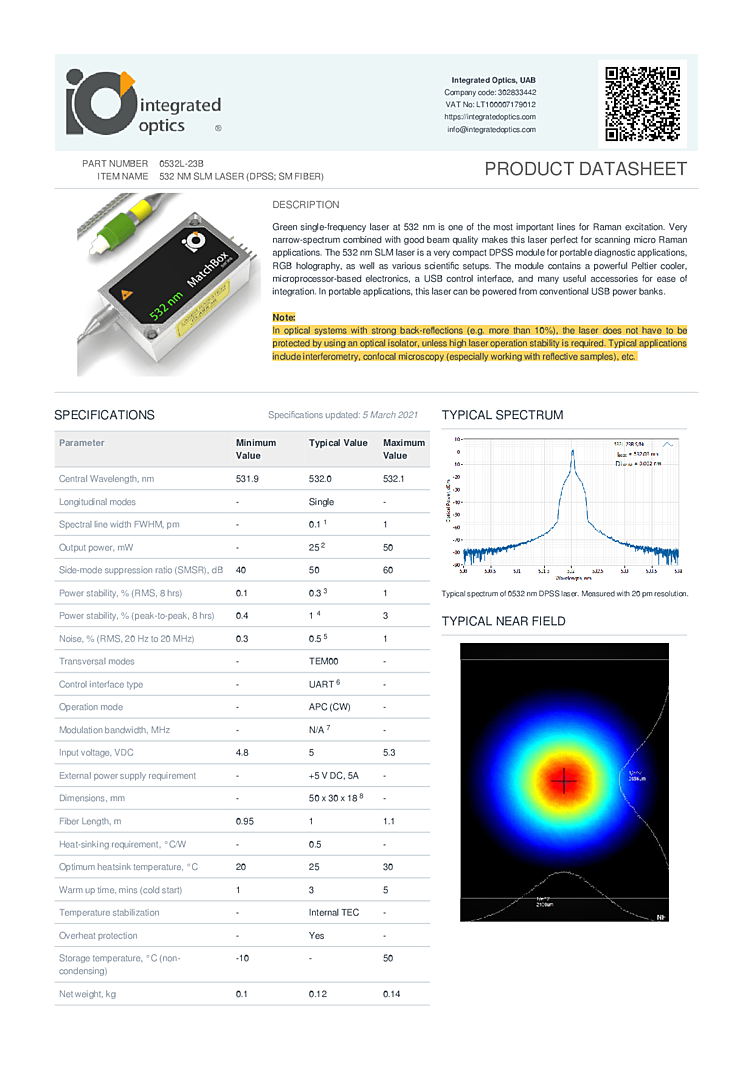

Typical Specifications:
- Central Wavelength: 532.0 nm
- Spectral Line Width FWHM: 0.1 pm
- Output Power: 25 mW
- Side-Mode Suppression Ratio (SMSR): 50 dB
- Power Stability (RMS, 8 hrs): 0.3%
- Noise (RMS, 20 Hz to 20 MHz): 0.5%
- Transversal Modes: TEM00

Description:
MatchBox laser modules are widely configurable and deliver high-end performance in a miniature package. Smart power electronics is installed in the same enclosure. MatchBox offers highest power density and best performance/price ratio. Green single-frequency laser at 532 nm is one of the most important lines for Raman excitation. A very narrow spectrum combined with good beam quality makes this laser perfect for scanning micro Raman applications.

The 532 nm SLM laser is a very compact DPSS module for portable diagnostic applications, RGB holography, as well as various scientific setups. The module contains a powerful TEC cooler, microprocessor-based electronics, a USB control interface and many useful accessories for ease of integration. In portable applications, this laser can be powered from conventional USB power banks. For fiber delivery, please check MM, SM, PM fiber output options. Higher output power is available on request.
