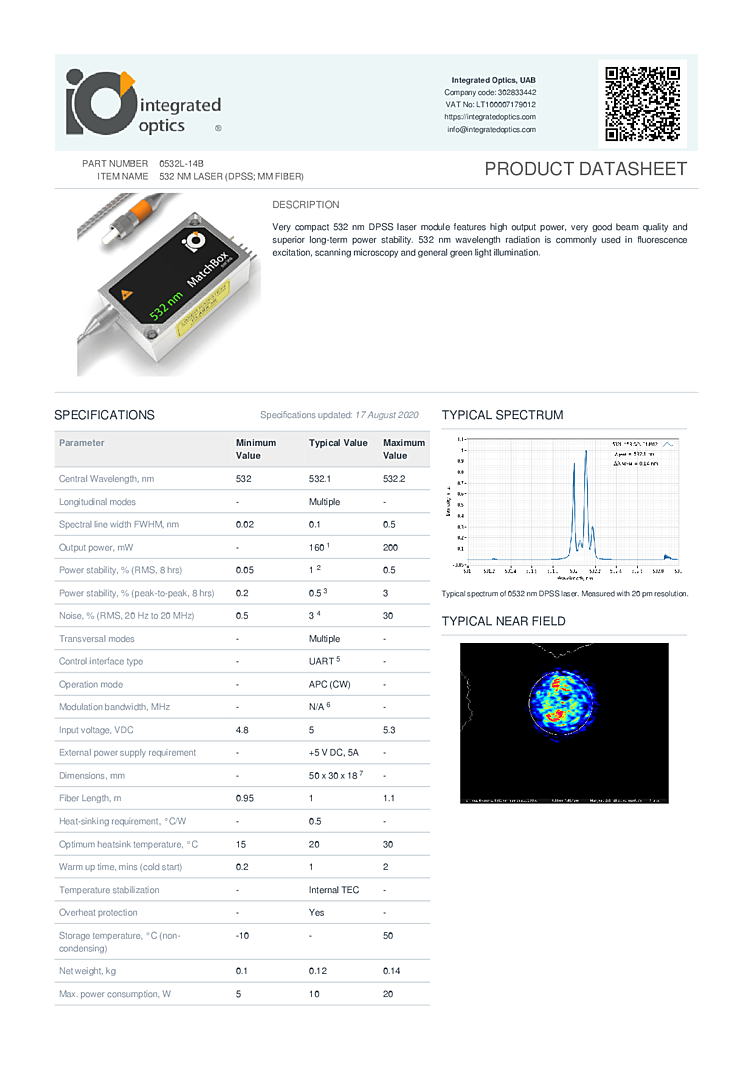

532nm, 160mW CW Laser

Integrated Optics Model 0532L-14B
532nm Laser
160mW Output Power
____________________________________________________________________

Typical Specifications:
- Central Wavelength, nm: 532.1
- Longitudinal modes: Multiple
- Spectral line width FWHM, nm: 0.1
- Output power, mW: 160
- Power stability, % (RMS, 8 hrs): 1
- Power stability, % (peak-to-peak, 8 hrs): 0.5
- Noise, % (RMS, 20 Hz to 20 MHz): 0
- Warranty, months (op. hrs): 14 (10000)

Description:
MatchBox laser modules are widely configurable and deliver high-end performance in a miniature package. Smart power electronics is installed in the same enclosure. MatchBox offers highest power density and best performance/price ratio.

A very compact 532 nm DPSS laser module features high output power, very good beam quality, and superior long-term power stability. 532 nm wavelength radiation is commonly used in fluorescence excitation, scanning microscopy, and general green light illumination.
