532nm, 200mJ Nanosecond Laser

Quantel Laser EverGreen 200
532nm Nanosecond Laser
200mJ Pulse

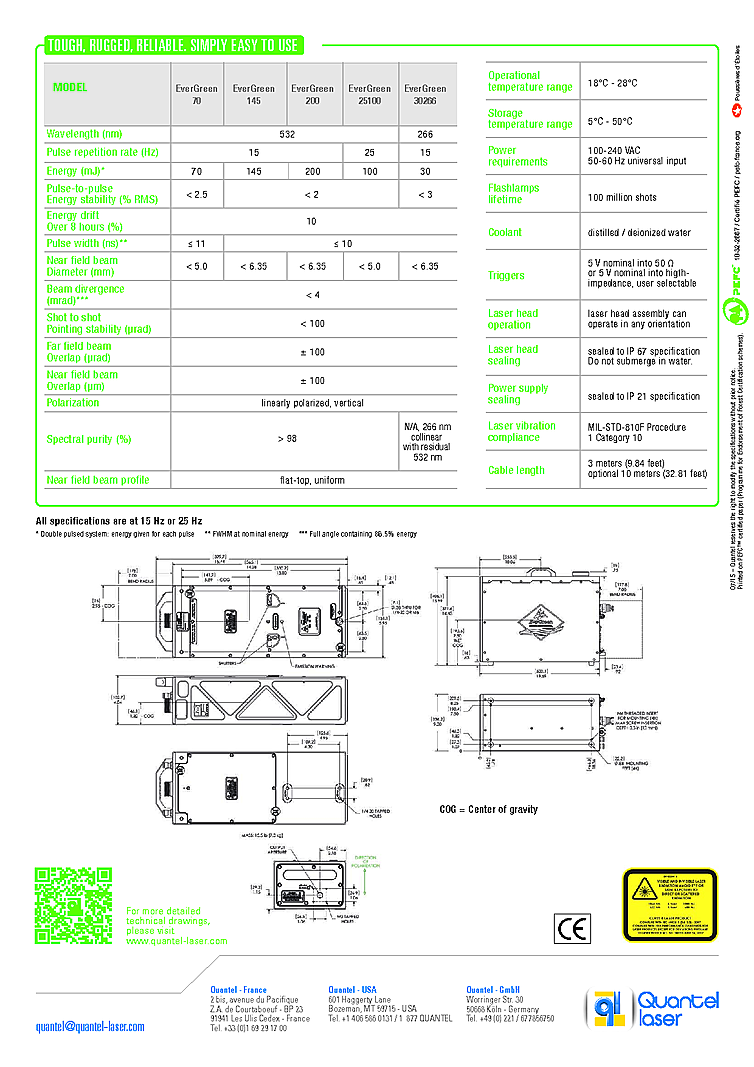

Typical Specifications:
- Wavelength (nm): 532
- Pulse repetition rate (Hz): 15
- Energy (mJ)*: 200
- Pulse-to-pulse Energy stability (% RMS): < 3
- Pulse width (ns)**: ≤ 10
- Near field beam Diameter (mm): < 6.35
- Beam divergence (mrad)***: < 4
- Pointing stability (μrad): < 100
- Operational temperature range: 18°C - 28°C
- Storage temperature range: 5°C - 50°C
- Power requirements: 100-240 VAC, 50-60 Hz

Description:

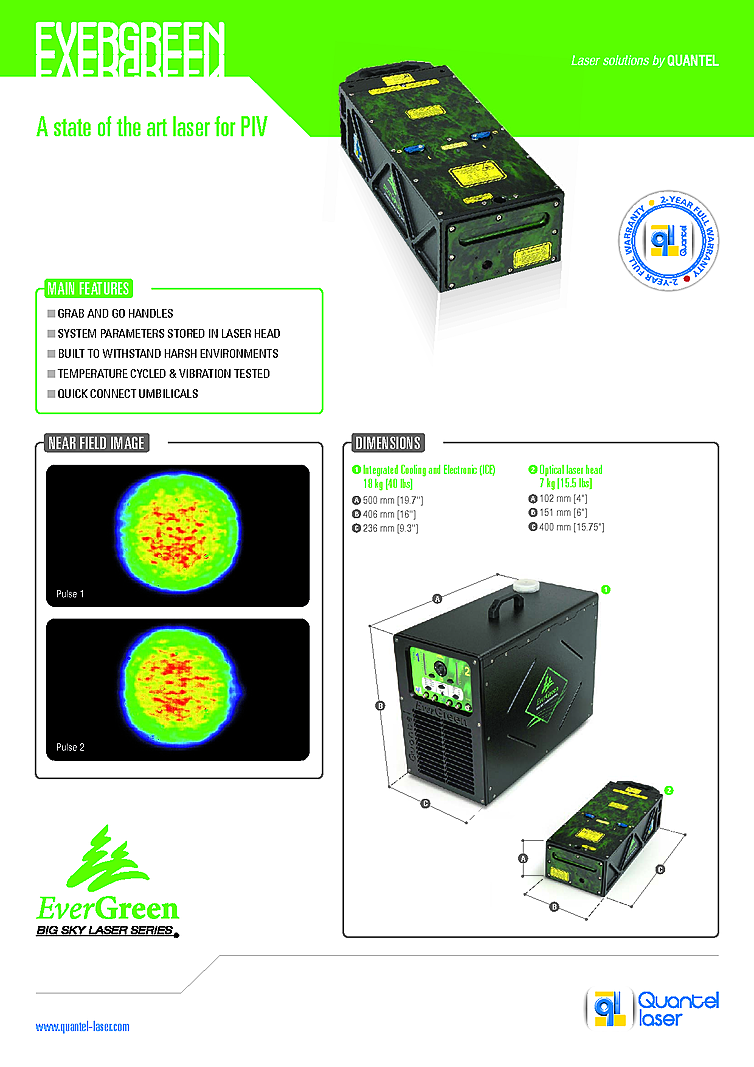

Nanosecond laser from Quantel Laser was designed for PIV applications. Key features of the laser include grab and go handles, system parameters stored in laser head, built to withstand harsh environments, temperature cycled and vibration tested, and quick connect umbilicals. Nanosecond laser output energy up to 200mJ at a wavelength of 532 nm.
