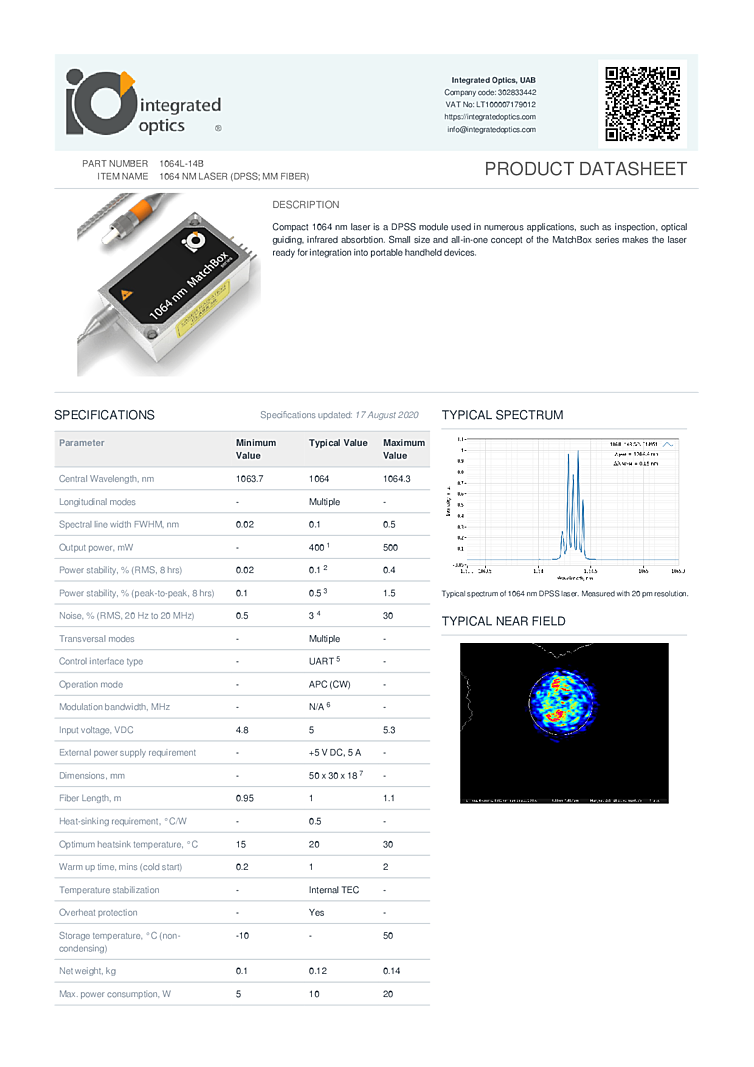

1064nm, 400mW DPSS Laser

Integrated Optics 1064L-14B
1064nm DPSS Laser
400mW Output Power

Typical Specifications:
- Central wavelength: 1064 nm
- Maximum output power: 14 W
- Transversal modes: Multiple
- Control interface type: UART
- Operation mode: APC (CW)
- Modulation bandwidth: N/A
- Input voltage: 4.8-5.3 VDC
- External power requirement: +5V DC, 5A
- Dimensions: 50 x 30 x 18 mm
- Fiber length: 0.95-1.1 m
- Heat-sinking requirement: 0.5 °C/W
- Optimum heatsink temp: 15-30 °C
- Warm up time (cold start): 0.2-2 mins
- Temperature stabilization: Internal TEC
- Overheat protection: Yes
- Storage temperature: -10 to 50 °C (non-condensing)
- Net weight: 0.1-0.14 kg
- Max. power consumption: 5-20 W

Description:
MatchBox laser modules are widely configurable and deliver high-end performance in a miniature package. Smart power electronics is installed in the same enclosure. MatchBox offers highest power density and best performance/price ratio. This compact 1064 nm laser is a DPSS module used in numerous applications, such as inspection, optical guiding, infrared absorption. Small size and all-in-one concept of the MatchBox series makes the laser ready for integration into portable handheld devices.
