1064nm, 90W Nanosecond Laser

Litron Lasers Model LDY90(T)
1064nm Nanosecond Laser
90W Output Power

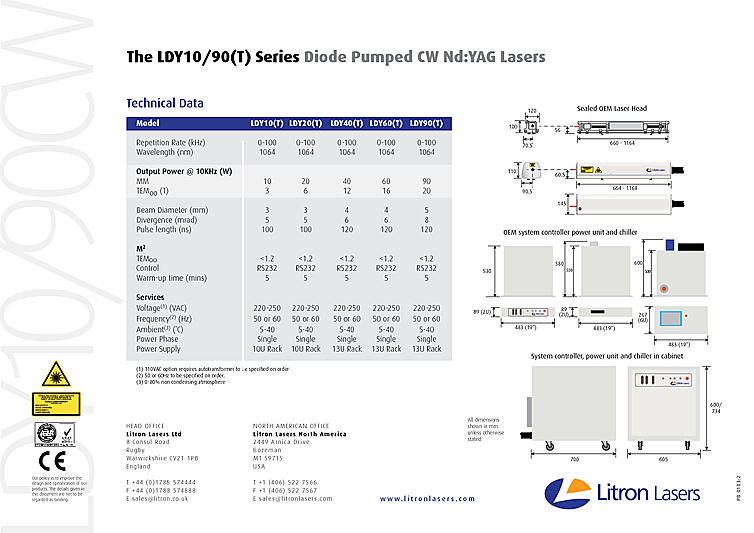

Typical Specifications:
- Repetition Rate (kHz): 0-100
- Wavelength (nm): 1064
- Output Power @ 10KHz (W): MM 90
- TEMoo (T): 20
- Beam Diameter (mm): 5
- Divergence (mrad): 8
- Pulse length (ns): 120
- M2 TEMoo: <1

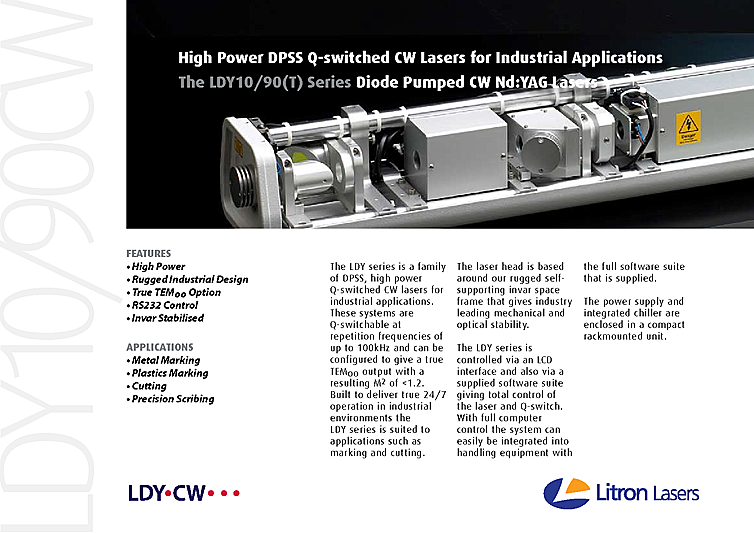

Description:
Diode pump solid state laser with high output power from Litron Laser. Q-Switched CW laser for industrial applications including Metal Marking, Plastics Marking, Cutting and Precision Scribing. Q-Switched lasers repetition frequencies of up to 100kHz and can be
configured to give a true TEM00 output with a resulting M2 of <1.2. Designed for industrial environments the lasers deliver 24/7 operation. Remote control operation via RS232 interface. Output wavelength of 1064nm with average output power up to 90 watts.
