1064nm, 60µJ Nanosecond Laser

Keopsys PYFL-MIRVISION Series
1064nm Nanosecond Laser
60µJ Pulse

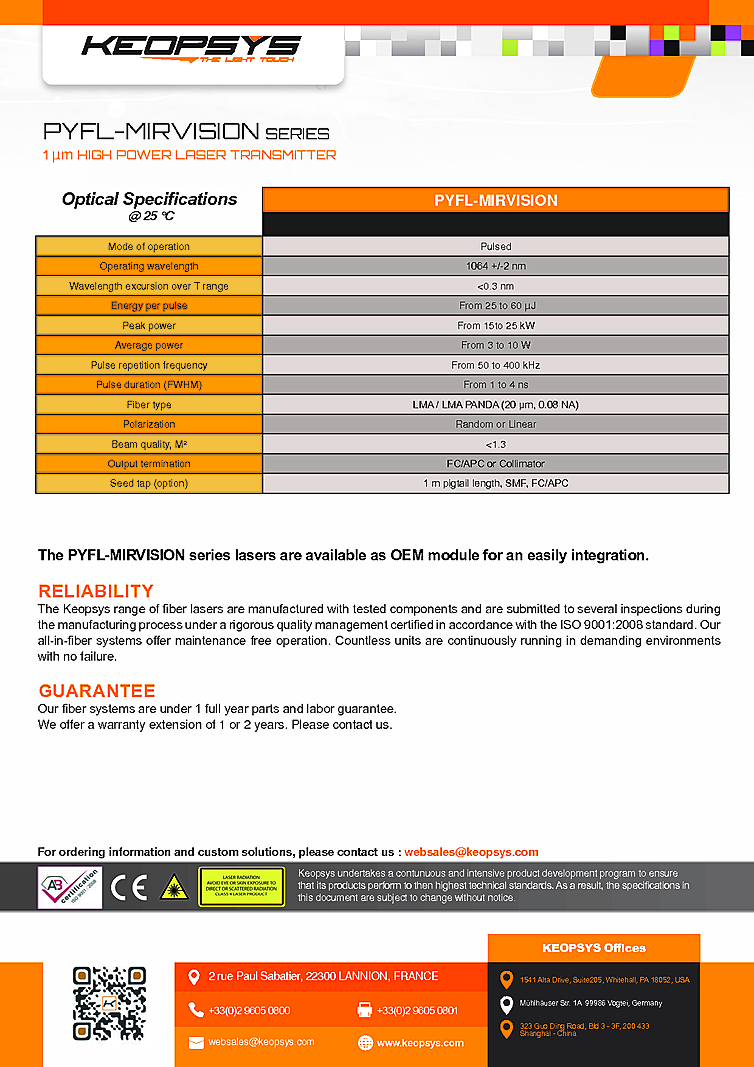

Typical Specifications:
- Mode of operation: Pulsed
- Operating wavelength: 1064 +/-2 nm
- Wavelength excursion over T range: <0.3 nm
- Energy per pulse: From 25 to 60 μJ
- Peak power: From 15 to 25 kW
- Average power: From 3 to 10 W
- Pulse repetition frequency: From 50 to 400 kHz
- Pulse duration (FWHM): From 1 to 4 ns
- Fiber type: LMA / LMA PANDA (20 μm, 0.08 NA)
- Polarization: Random or Linear
- Beam quality, M²: <1.3
- Output termination: FC/APC or Collimator
- Seed tap (option): 1 m pigtail length, SMF, FC/APC

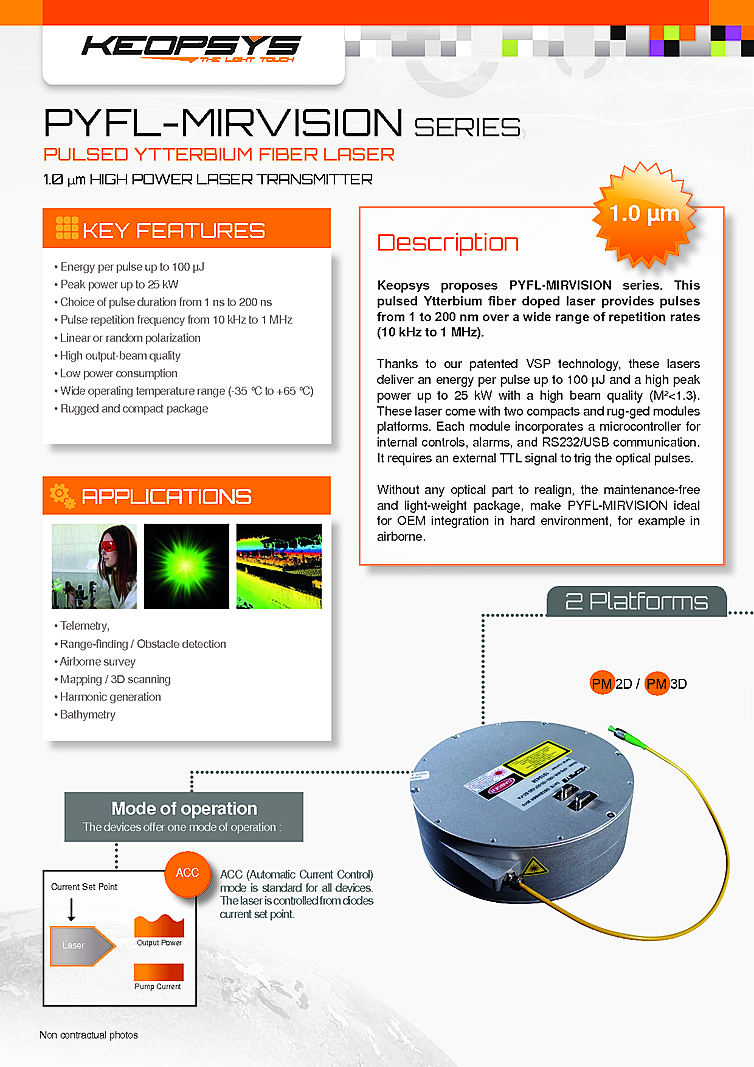

Description:
The PYFL-MIRVISION is a reliable and rugged pulsed ytterbium fiber laser with 1.0 µm high power laser transmitter. This reliability is thanks to the fact that the Keopsys range of fiber lasers are manufactured with tested components under a very meticulous manufacturing process. As such, every component goes under a rigorous quality management which is certified in accordance with the ISO 9001:2008 standard. Accordingly, this makes the device to continuously run in demanding environments with no failure.

As for the key features, it has an energy per pulse up to 100 µJ, a Peak power up to 25 kW, a choice of pulse duration from 1 ns to 200 ns, a pulse repetition frequency from 10 kHz to 1 MHz, as well as a linear or random polarization. Furthermore, it has a high output-beam quality a low power consumption, a wide operating temperature range (-35 °C to +65 °C), as well as a rugged and compact package.
