1064nm, 25µJ Picosecond Laser

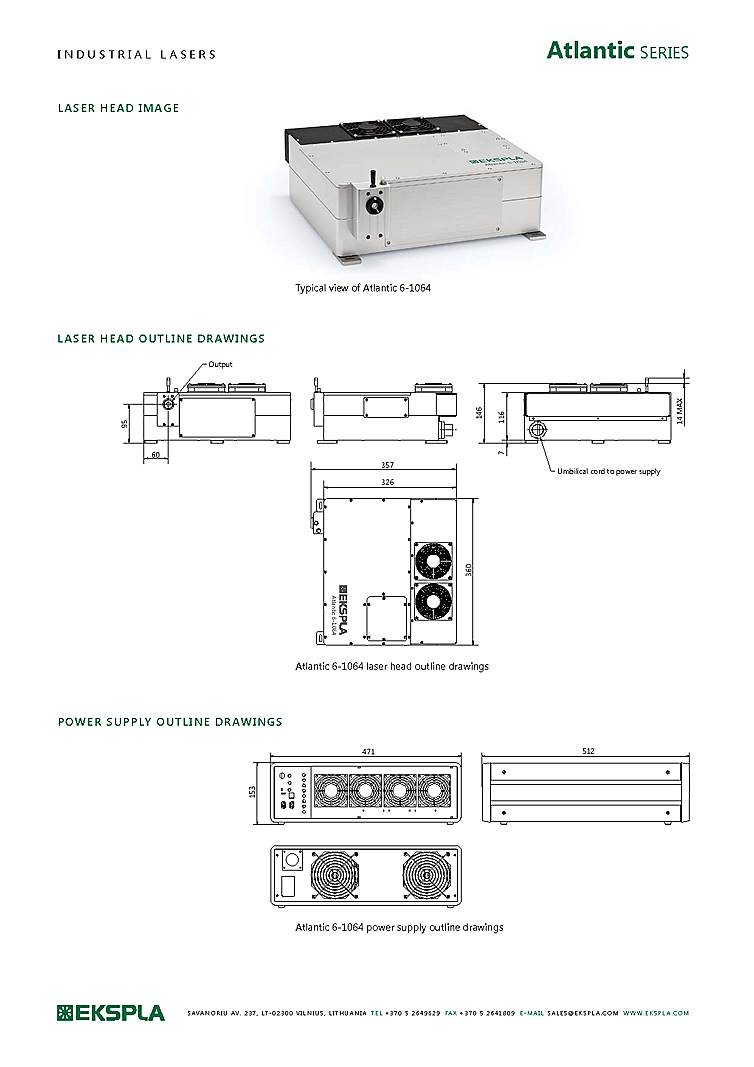

Ekspla Atlantic 6-1064
1064nm Picosecond Laser
25µJ Pulse

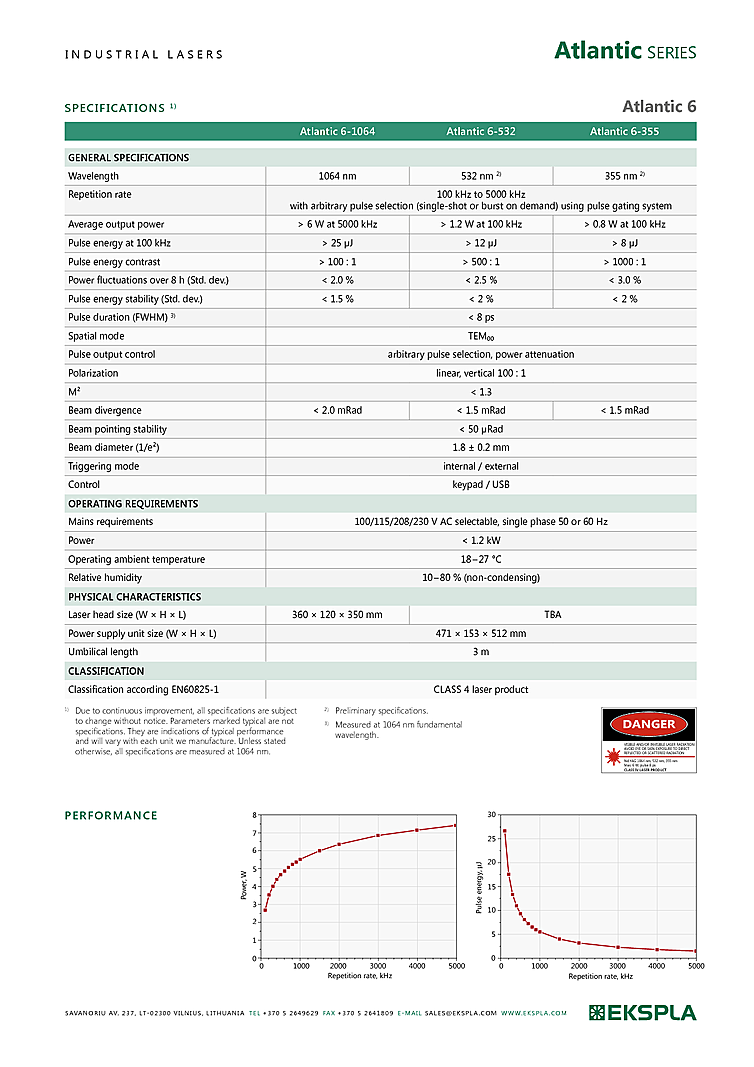

Typical Specifications:
- Wavelength: 1064 nm [T3-1]
- Repetition rate: 100 kHz to 5000 kHz
- Average output power: > 6 W at 5000 kHz [T3-2]
- Pulse energy at 100 kHz: > 25 μJ [T3-2]
- Pulse energy contrast: > 100 : 1 [T3-2]
- Power fluctuations over 8 h (Std. dev.): < 2.0 % [T3-2]
- Pulse energy stability (Std. dev.): < 1.5 % [T3-2]
- Pulse duration (fwHm): < 8 ps [T3-3]
- Spatial mode: TEM₀₀ [T3-3]
- Pulse output control: arbitrary pulse selection, power attenuation [T3-2]
- Polarization: linear, vertical 100 : 1 [T3-2]
- m²: < 1 [T3-3]

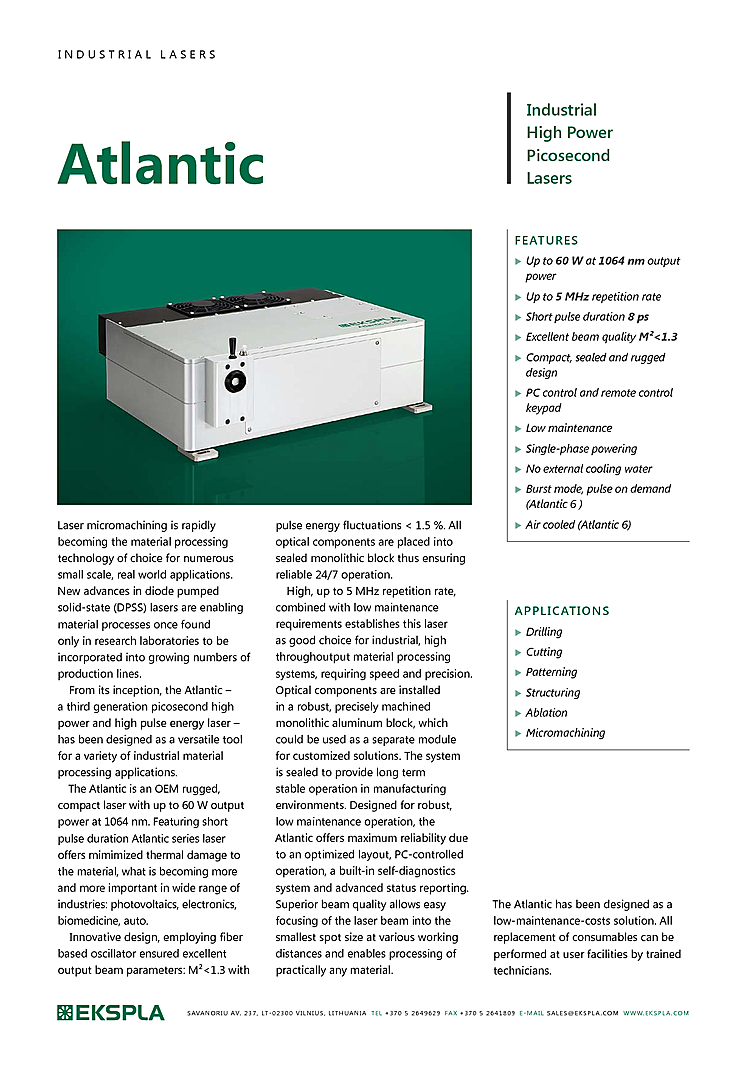

Description:
Picosecond lasers from Ekspla. This industrial laser was designed for applications in Drilling, Cutting, Patterning, Structuring, Ablation and Micromachining. Picosecond laser pulse repetition rate up to 5 MHz with pulse duration of 8 ps and beam quality of M2<1.3. Compact rugged design with low maintenance single phase power and no external water cooling. PC control and remote control keypad. Picosecond laser pulse energy up to 25 µJ at a wavelength of 1064 nm.
