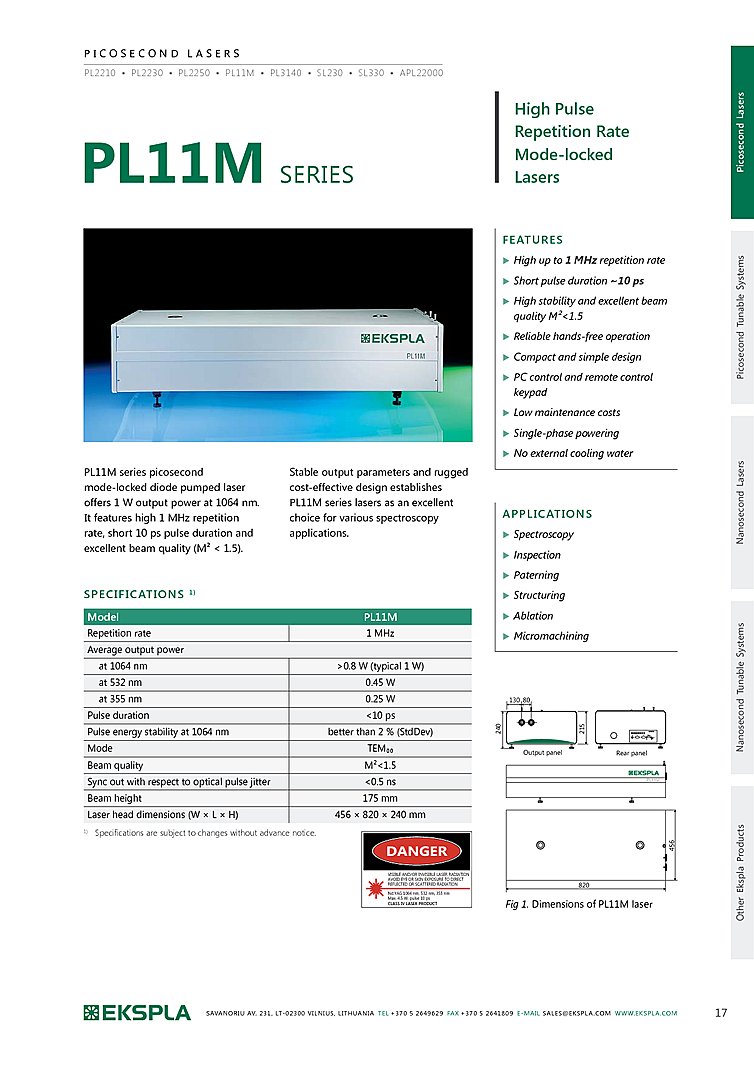

1064nm, 1W Picosecond Laser

Ekspla PL11M
1064nm Picosecond Laser
1W Output Power

Typical Specifications:
- Repetition rate: 1 MHz
- Average output power at 1064 nm: >0.8 W (typical 1 W)
- Pulse duration: <10 ps
- Pulse energy stability at 1064 nm: better than 2% (StdDev)
- Mode: TEM₀₀
- Beam quality: M²<1.5
- Sync out with respect to optical pulse jitter: <0.5 ns
- Beam height: 175 mm

Description:
Picosecond laser from Ekspla. Applications for the mode-locked laser include Spectroscopy, Inspection, Patterning, Structuring, Ablation and Micromachining. The picosecond laser has a short pulse duration ~10 ps with high up to 1 MHz repetition rate. High stability and excellent beam quality M2<1.5. Compact and simple hands-free operation with low maintenance cost. PC control and remote control keypad. Picosecond laser output power 1000 mW and wavelength of 1064 nm.
