1064nm Fiber Laser, Picosecond, 2nJ

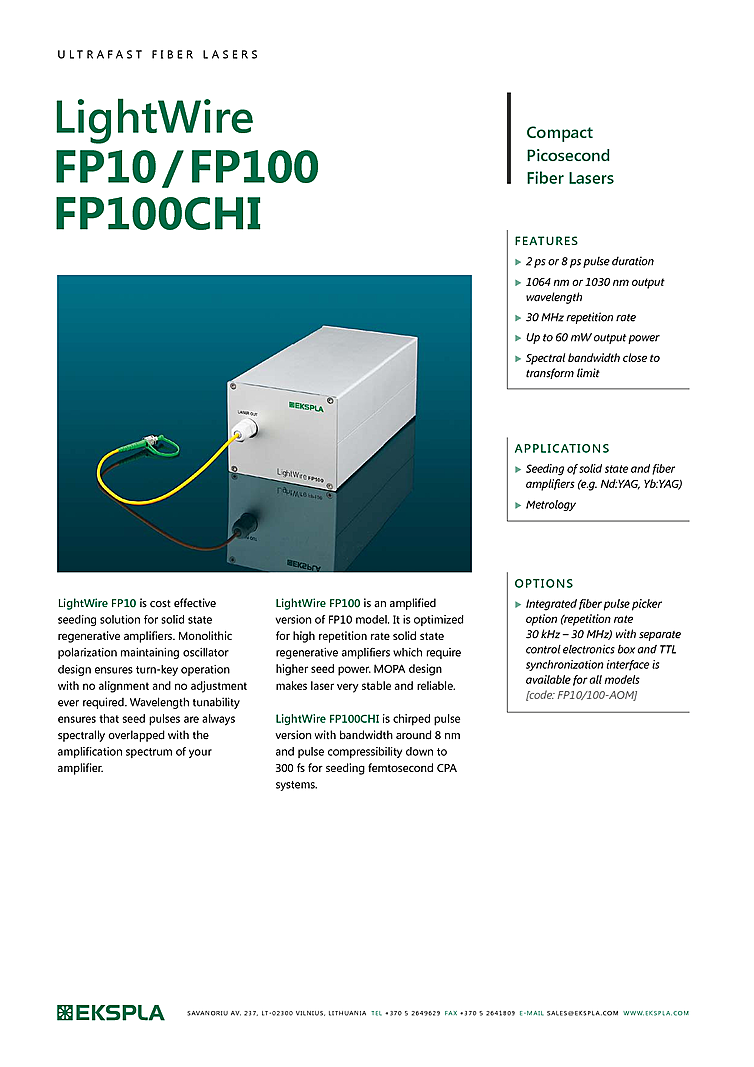

Fiber laser with picosecond pulse output from Ekspla. Pulse duration 2 ps or 8 ps with 30MHz repetition rate. Applications for seeding lasers or metrology. Careful attention to the design of the fiber laser provides a beam quality of M2 less then 1.1 with a polarization linear output less then 100 : 1 extinction. Picosecond laser output can either be fiber coupled with a FC/APC connector or collimated beam. This picosecond laser has been optimized with a high repetition rate for solid state regenerative amplifiers which typicaly require higher seed power. The laser utalizes a MOPA design for long term stability and reliability. Options for this Ekslpa laser include integrated fiber pulse picker with a reptition rate from 30kHz to 30 MHz wtih a seperate TTL synchronization interface and control electronics. Fiber laser with 2nJ output energy and up to 60mW output power with a wavelength 1064 nm.
