1030nm, 300mW DPSS Laser

Integrated Optics 1030L-15B
1030nm DPSS Laser
300mW Output Power

Typical Specifications:
- Wavelength: 1030 nm
- Output power: 15 W
- Beam quality: TEM00, M² < 1.2
- Polarization extinction ratio (from PM fiber): 20 dB
- Control interface type: UART
- Operation mode: APC (CW)
- Modulation bandwidth: N/A
- Input voltage: 4.8-5.3 VDC
- External power supply requirement: +5 V DC, 5 A

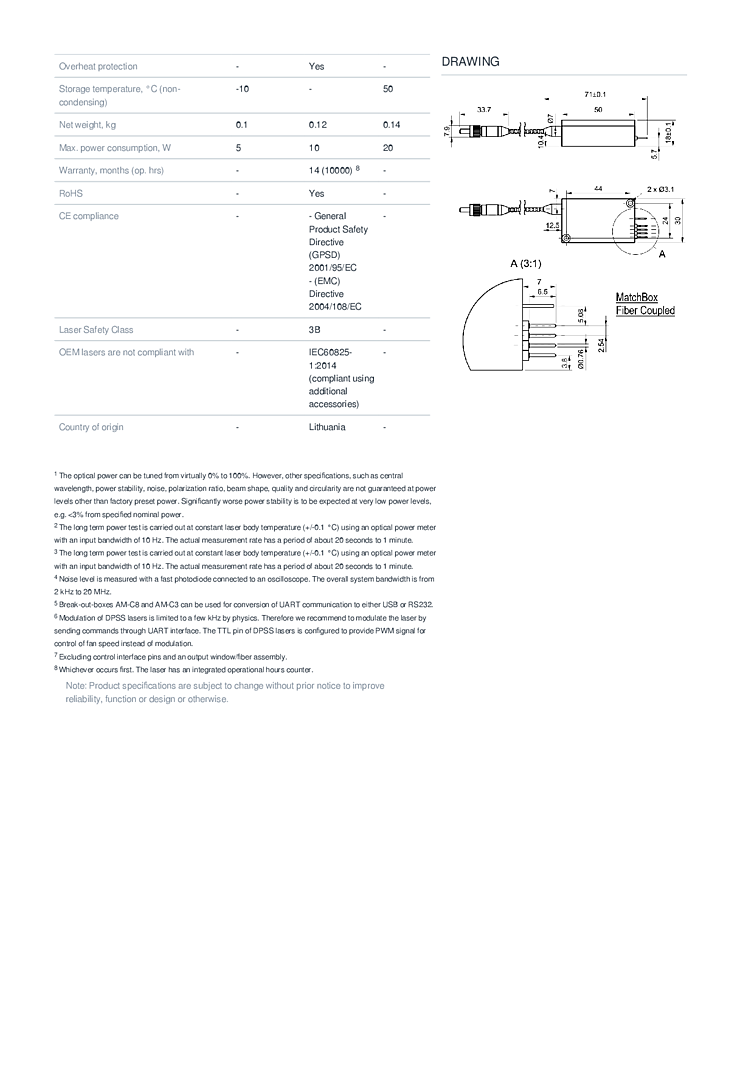

- Dimensions: 50 x 30 x 18 mm
- Heat-sinking requirement: 0.5 °C/W
- Optimum heatsink temperature: 15-30 °C
- Warm up time (cold start): 0.2-2 minutes

Description:
MatchBox laser modules are widely configurable and deliver high-end performance in a miniature package. Smart power electronics is installed in the same enclosure. MatchBox offers highest power density and best performance/price ratio. It is often used for inspection of optical components at around 1030 nm radiation wavelength. This DPSS laser is based on Yb:YAG gain medium, therefore, it exhibits a very low quantum defect.
