LMA Ytterbium Doped Tapered Optical Fiber

Request Quote   Ships: Contact | Model OF-Yb-PM-x

Key Features
  • Photodarkening Free Yb-Doped PM Fiber
  • Cutoff wavelength: < 1.0 µm
  • Double Clad Polarization-Maintaining Tapered Fiber

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL OF-Yb-PM-x
PRICE Request Price

Product Overview:

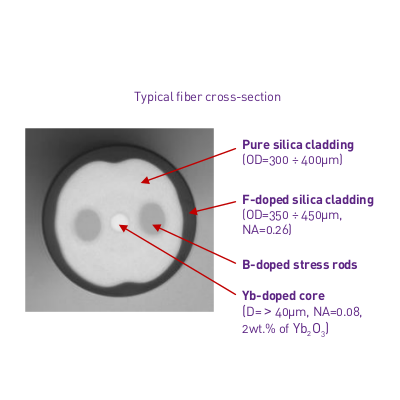

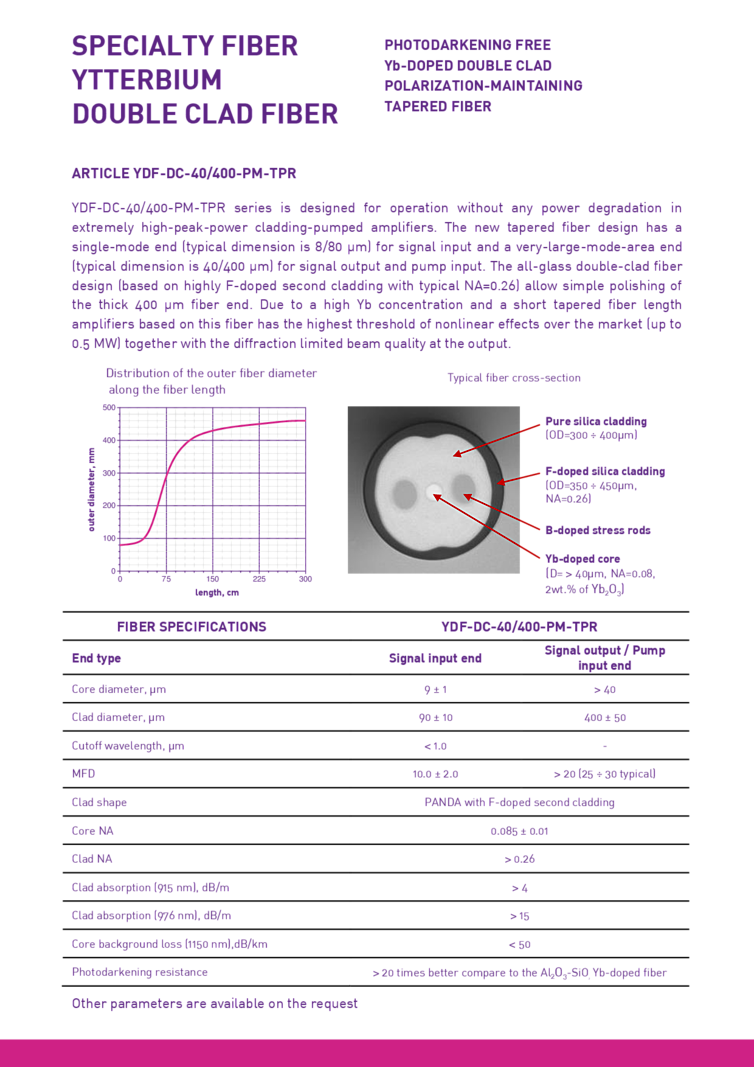

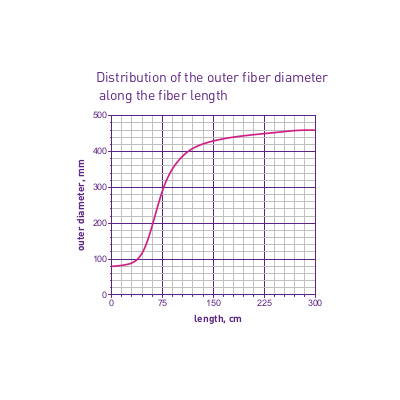

YDF-DC-40/400-PM-TPR series is designed for operation without any power degradation in extremely high-peak-power cladding-pumped amplifiers. The new tapered fiber design has a single-mode end (typical dimension is 8/80 µm) for signal input and a very-large-mode-area end (typical dimension is 40/400 µm) for signal output and pump input. The all-glass double-clad fiber design (based on highly F-doped second cladding with typical NA=0.26) allow simple polishing of the thick 400 µm fiber end. Due to a high Yb concentration and a short tapered fiber length amplifiers based on this fiber has the highest threshold of nonlinear effects over the market (up to 0.5 MW) together with the diffraction limited beam quality at the output.
