Home > Accessories > FORC-Photonics > RLS/GTL-FBG-WL-810
Request Quote Ships: Request a Quote for Current Ship Date | Model RLS/GTL-FBG-WL-810
Key Features
- Optical Connector: Bare fiber, FC/APC, LC/APC, Custom
- Types of Fiber: Single-Mode, PM, Custom
- FBG Pigtail Length: 0.5 meters (Custom Available Upon Request)
Customers Also Considered:
Product Overview:

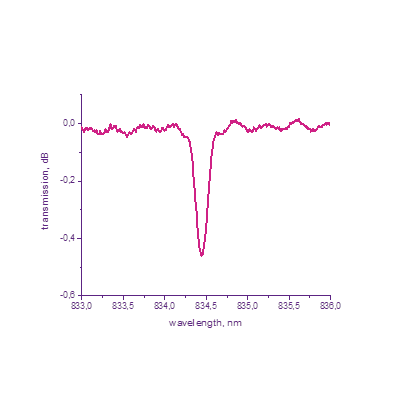

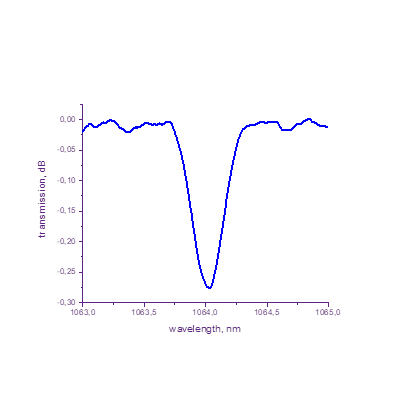

The Wavelength Locker FBGs are used as external reflectors for laser diodes. It is easy to stabilize wavelength generation of pump semiconductor lasers and single frequency lasers by using such FBGs. Low reflection gratings with FWHM 0.3 ÷ 0.8 nm and reflectivity 2 ÷ 5 % are ideal for pump power lasers stabilization. Close to semiconductor laser crystals FBGs with FWHM around 0.1 nm and reflection 10 ÷ 20% are used for creation single frequency sources. We are presented line of the WL FBG with vary accurate wavelength positions up to ± 0.02 nm. The transmission spectrum of Wavelength Locked FBG for laser diode power and wavelength stabilize is presented in the graph.
