Key Features
  • Air cooled – no liquids inside
  • Weight is <5 kg incl. power supply
  • Build-in sync pulse generator for triggering of user equipment
  • Remote control via build-in Ethernet interface
  • Optional attenuator for fundamental wavelength
  • Optional fiber coupled output
  • OEM version is available

Customers Also Considered:

PRICE Request Price
  • Up to 32 mJ pulse energy at 1064 nm
  • Short pulse duration <8 ns
  • Variable up to 50 Hz repetition rate
  • Guaranteed >1 Gshot lifetime

Product Overview:

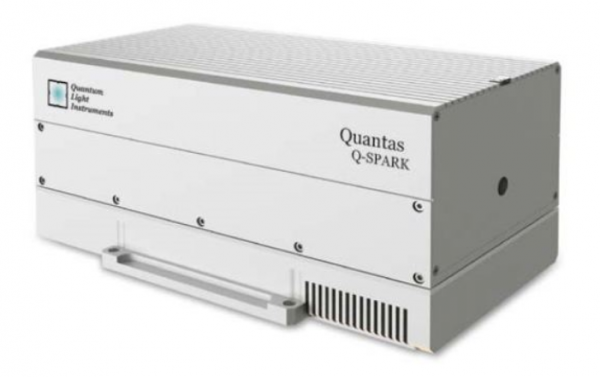

Quantas is diode pumped, air-cooled, Q-switched laser designed for wide range of applications that require low pulse repetition rate and high peak power pulses (Q1D model produces ~5 MW peak power). Due to good thermal properties of Nd:YAG crystal Q1-1064 can operate at higher pulse repetition rates in comparison to Q1-1053. Laser can produce up to 30 mJ at 20 Hz repetition rate or up to 10 mJ at 50 Hz repetition rate. Typical applications are Light Induced Breakdown Spectroscopy (LIBS), Light Induced Fluorescence Spectroscopy (LIF), laser ablation and remote sensing. Less than 8 ns pulse duration allows efficient fundamental wavelength conversion to higher harmonics with shortest wavelength available of 213 nm. Wavelength extensions into infrared range are available by request
