Phase Shifted Fiber Bragg Grating

Request Quote   Ships: Request a Quote for Current Ship Date | Model FBG-PHASE-SHIFTED

Key Features
  • Optical Connector: Bare fiber, FC/APC, LC/APC, Custom
  • FBG Pigtail Length: 0.5 meters (Custom Available Upon Request)
  • Wavelength range: 600nm to 2300nm (Custom Request)
  • Types of Fiber: Single-Mode, PM, Double clad, LMA, Custom

Customers Also Considered:

MODEL FBG-PHASE-SHIFTED
PRICE Request Price

Product Overview:

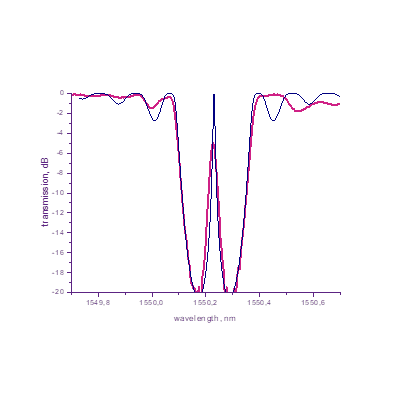

Phase shifted FBGs have a very narrow peak within its transmission/reflection spectrum. Phase shifted FBG is a grating with phase defect in the center. While the grating length determines its bandwidth, spectral width of that peak depends on the strength both parts of FBG. Typical FWHM has a value 0.1nm ÷ 0.005 nm. Phase shifted FBGs are used as narrow bandwidth optical filter, for single – frequency fiber lasers creations. The experimental and theoretical transmission spectrum of FBGs is presented in the graph.
