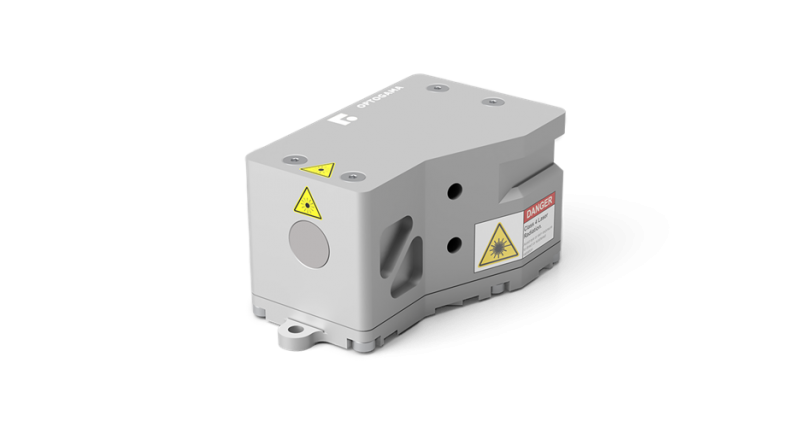

Nanosecond Pulsed Laser 1540nm with 3mJ Output Energy

Request Quote   Ships: Contact | Model 1540nm-NS-Pulsed-Laser

Key Features
  • High Pulse Energy: > 3 mJ
  • Wavelength: 1534nm (±5nm)
  • Pulse Repetition Rate: Single Shot, 0.5 Hz - 5 Hz
  • Compact Laser Head Design: 61mm x 33mm x 29.5mm

Customers Also Considered:

MODEL 1540nm-NS-Pulsed-Laser
PRICE Request Price
OPTICAL (TYPICAL)
  • Wavelength: 1534 nm
  • Wavelength Tolerance: ± 5 nm
  • Pulse Energy: 3 mJ
  • Pulse duration: <14 ns
  • Pulse Repetition Rate: Single-Shot, 0.5 Hz - 5 Hz
  • Beam Profile: TEM00
APPLICATIONS
  • LIDAR & Laser Ranging
  • LIBS
  • Metrology and instrumentation
GENERAL
  • Laser Head Dimensions: 61 mm x 33 mm x 29.5 mm
  • Laser Driver Dimensions: 128 mm x 83 mm x 48 mm
  • Working Temperature: -20 – 35°C
  • Pump Current: <100 A

Product Overview:

The high energy 1540nm ("eye safe") laser is designed for applications in LIDAR, range finding, LIBS, and metrology. The compact laser can produce up to 3mJ of energy at a 5 Hz repetition rate. The pulse duration is less than 15 nanoseconds and the repetition rate is adjustable from single shot to 0.5 Hz to 5 Hz. The high quality design provides energy stability of less than 1% at 1 Hz over 600 pulses. The compact laser head is ideal for research applications or can be integrated into an OEM system. High beam quality nanosecond pulsed laser is offered by Optogama.
