1mJ Nanosecond Pulsed Laser at 1534nm; Pulse Repetition Rate: 1Hz to 10 Hz

    Request Quote   Ships: | Model

    Key Features
    • Pulse Energy: 1 mJ
    • Wavelength: 1534nm (±1nm)
    • Pulse duration: <10ns
    • Compact Laser Head Design
    • Options: OEM Versions for System Integration

    Customers Also Considered:

    MODEL
    PRICE Request Price
    OPTICAL (TYPICAL)
    • Wavelength: 1534nm
    • Wavelength Tolerance: ± 5 nm
    • Pulse Energy: 1 mJ
    • Pulse duration: <10 ns
    • Pulse Repetition Rate: 1 Hz - 10 Hz
    • Beam Profile: TEM00
    APPLICATIONS
    • LIDAR & laser ranging
    • LIBS
    • Metrology and instrumentation
    • Automotive
    GENERAL
    • Laser Head Dimensions: 91 mm x 28 mm x 28 mm
    • Laser Driver Dimensions: 128 mm x 83 mm x 48 mm
    • Working Temperature: -40 – 70°C
    • Pump Current: <20 A

    Product Overview:

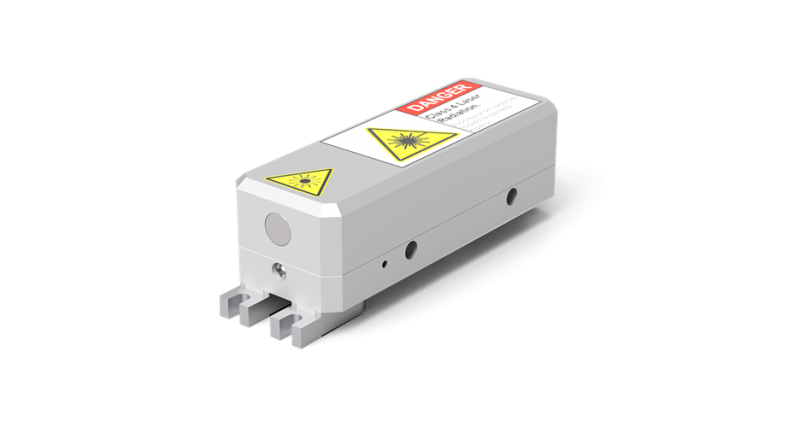

    Compact nanosecond pulsed laser provides up to 1mJ of energy at an eye safe wavelength of 1540nm. The high quality beam has a beam profile of TEM00 and diameter of <1mm at the exit window with divergence of <5mrad. The Optogama laser was designed for scientific or OEM applications in LIBS, Lidar, range finding, automotive, and metrology. The nanosecond laser head dimensions are 91 mm x 28 mm x 28 mm and is also offered as an OEM laser solution for customer system integration.
