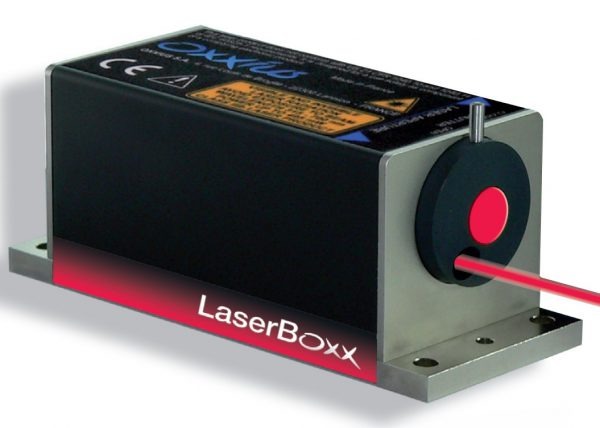

LBX-405-100-CSB: 405nm Laser Diode Module

Request Quote   Ships: | Model

Key Features
  • Ultra Low Noise < 0.5% rms
  • TEM00 circular beam
  • Beam pointing < 5 μm/°C
  • Fast TTL and analog modulation
  • USB and RS232 computer interface
  • Remote ControlBoxx with power display (CDRH)

Customers Also Considered:

MODEL
PRICE Request Price
OEM Version
  • Compact Industry Standard Laser head w/ Integrated drivers
  • 5V to 12V DC Power Supply to operate
  • 10 °C to 50 °C (baseplate) Operating Temperature
  • USB, RS-232, dedicated I/O interface
  • Intended for system integration
Plug and Play Version
  • Compact Industry Standard Laser head w/ Integrated drivers
  • CDRH compliant ControlBoxx
  • 100-240V Power Supply
  • 10 °C to 50 °C (baseplate) Operating Temperature
  • USB, RS-232, dedicated I/O interface
  • Intended for academic users and Lab use.
  • Heatsink provided for LCX, Optional for LBX

Product Overview:

The unique feature of the LaserBoxx DPSS is a proprietary, alignment-free monolithic resonator. The elements in the cavity are assembled into a single ultra-low-loss optical subsystem, using a proprietary crystal bonding technique. A highly transparent compound, deposited on chemically activated end-faces of two crystals, creates a bond that is extremely robust over time, temperature variations, and insensitive to mechanical vibrations. Dielectric mirrors coated at the end-faces of the crystals complete the monolithic assembly with no moving parts
