Home > Accessories > FORC-Photonics > RLS/GTL-FBG-UF-810
Request Quote Ships: Request a Quote for Current Ship Date | Model RLS/GTL-FBG-UF-810
Key Features
- Optical Connector: Bare fiber, FC/APC, LC/APC, Custom
- FBG Pigtail Length: 0.5 meters (Custom Available Upon Request)
- Wavelength range: 600nm to 2300nm (Custom Request)
- Types of fiber: Single-Mode, PM, Double clad, LMA
Customers Also Considered:
Product Overview:

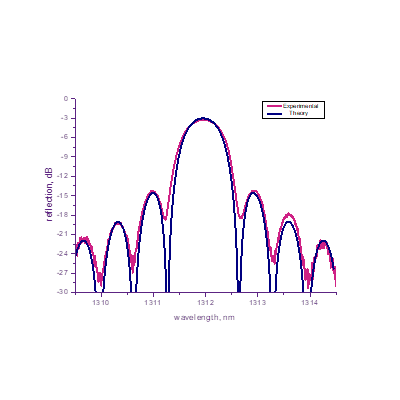

Fiber Bragg Gratings have many applications in optical communication, laser technique and sensing systems. The FBGs are widely used like in-fiber mirrors or optical filters with narrow band optical spectrum. FBGs can be used like a sensitive element for strain and temperature measuring. We produce the uniform gratings with grating length 0.5mm to 10mm. Such gratings have FWHM from 0.015nm (R=25%) to 0.03nm (R=90%) for wavelength 633nm (0.1nm and 0.17nm at wavelength 1580nm) and gratings length 9mm. Standard Uniform FBGs have bandwidth 0.15nm ÷ 0.6nm, reflectivity 5% ÷ 99% and gratings length 1mm – 3.5mm. Fiber Bragg gratings are sensitive to strain and temperature changes. Uniform FBGs can be provided as separated or chain of FBGs with different wavelength. Multy - points temperature, strain or other physical parameter monitoring are available by use of chain FBGs. Different types of single mode optical fibers and fibers coating are used for writable. Acrylate coating fibers applying for normal temperature range 40⁰C to +100⁰C. Polyimide or metal (Cu, Al) coating fibers are used for high temperature application with maximum temperature 300⁰C and 500⁰C respectively. The experimental and theoretical reflection spectrum of FBGs is presented in the graph.
