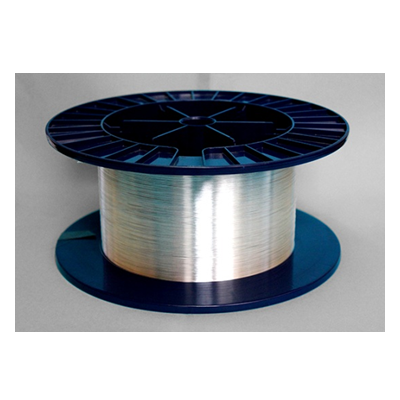

Aluminum, Metal Coated Silica Fiber

Request Quote   Ships: Contact | Model OF-Al-Coated

Key Features
  • Greatly enhanced resistance to high power laser radiation
  • Higher core-to-clad ratio and enlarged NA optimized for coupling to high-energy lasers
  • Better fiber cooling due to the heat-conducting metal coating
  • Excellent mechanical strength and flexibility compared to polymer coated fibers

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL OF-Al-Coated
PRICE Request Price

Product Overview:

Hermetically sealed Aluminum-coated optical fibers have all the benefits of silica-silica fibers. Additional significant improvements include increased mechanical strength and greater fatigue resistance compared to non-hermetic and polymer-clad fibers (PCS). Their transmittance covers a spectral range of 200 to 2400 nm, and also remains stable in corrosive chemicals that normally react to silica glass. The temperature range is from -196oC to +400oC and a humidity range of up to 100%. Hermetically metal-coated optical fibers are the optimum candidate when used in high vacuum and harsh environmental conditions.
