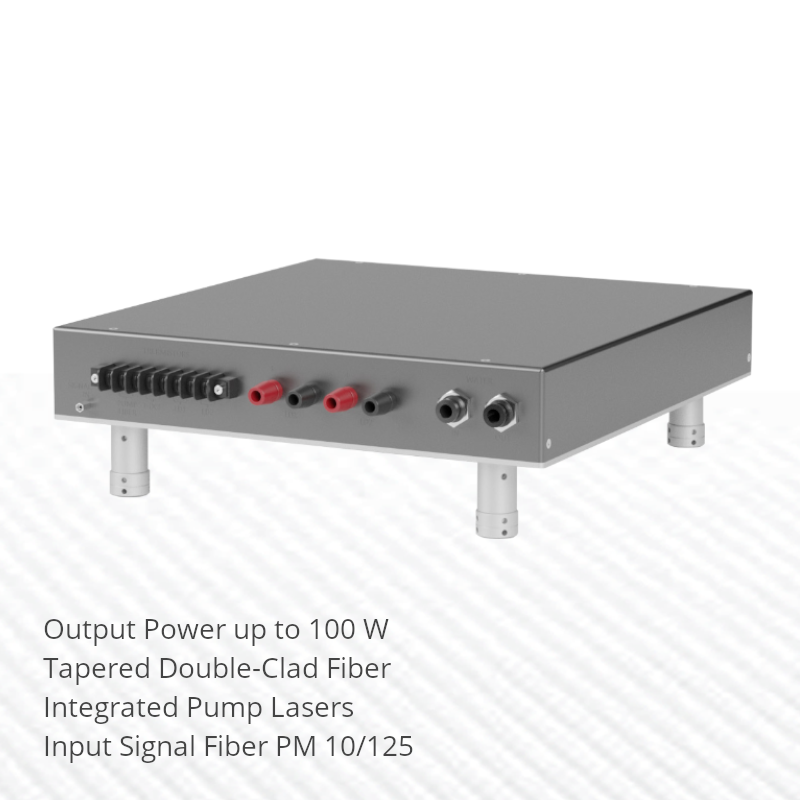

TGModule D-PM Ytterbium Doped Tapered, Double-Clad Fiber Amplifier

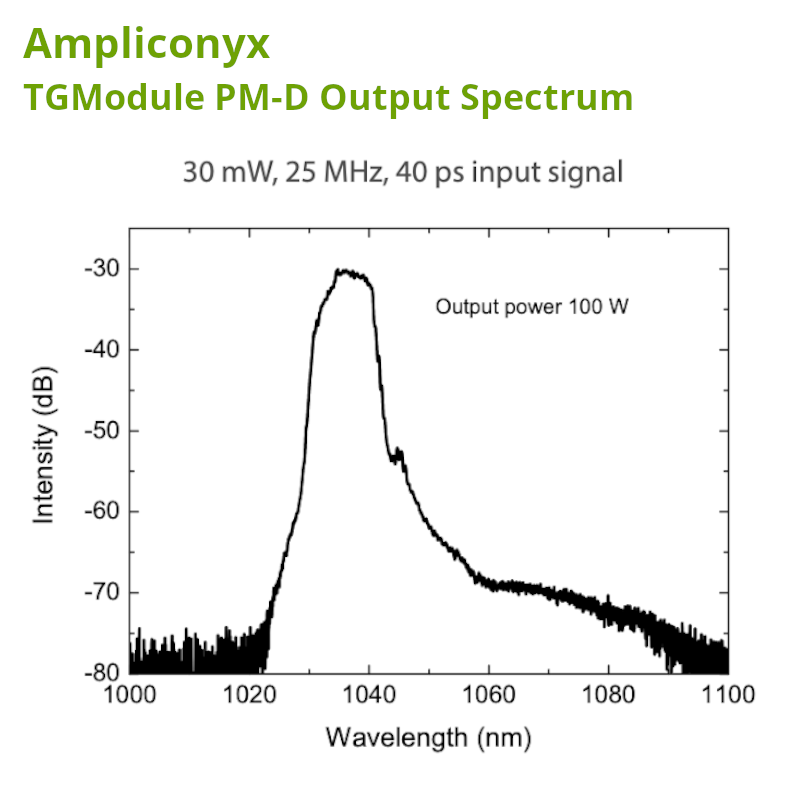

  • Ytterbium-Doped Fiber Output Spectrum

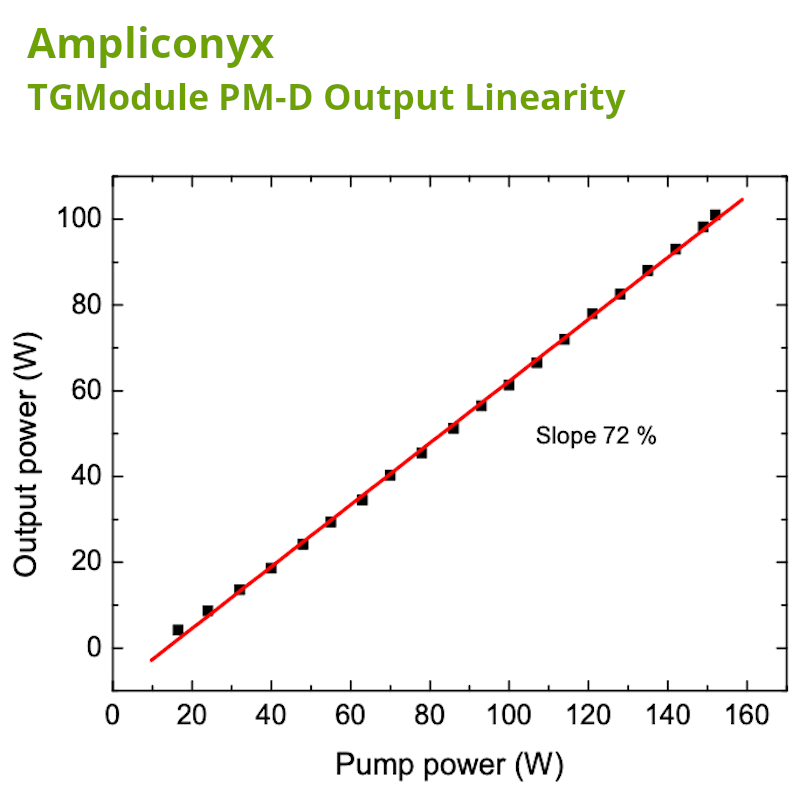

  • Double-Tapered Doped Fiber Amplifier Output Linearity

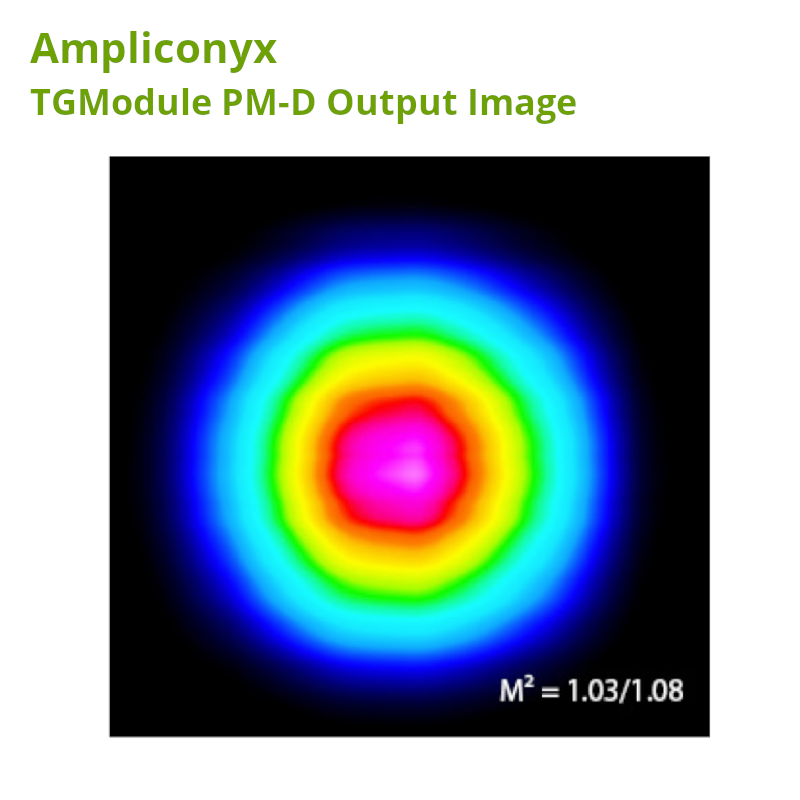

  • Fiber Amplifier Output Profile

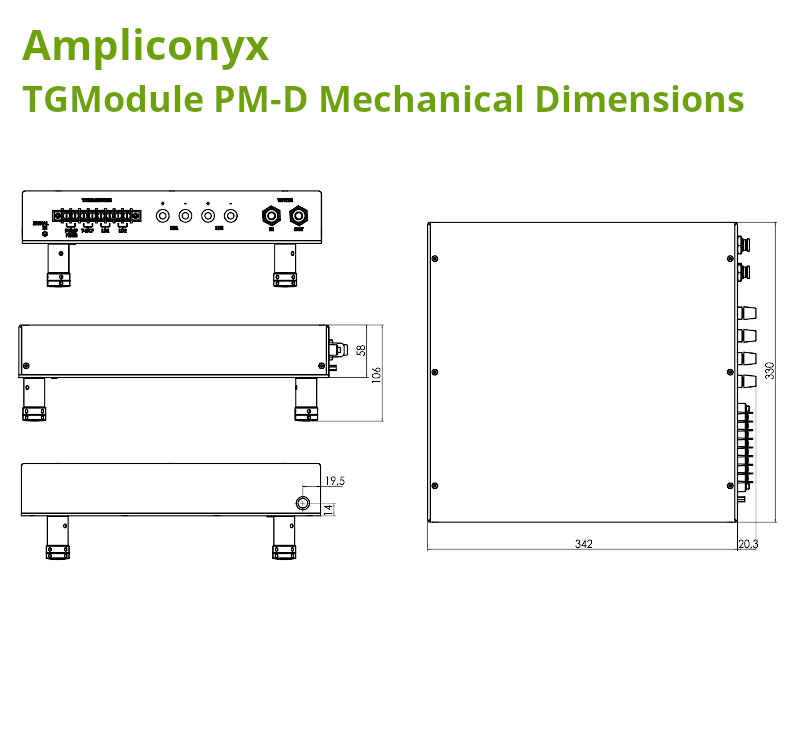

  • Double-Tapered Doped Fiber Amplifier Dimensions

Request Quote   Ships: Inquire | Model RLS/TGModule D-PM

Key Features
  • Center Wavelength: 1040 nm
  • Integrated Pump Laser Diodes
  • Ytterbium Doped Double-Clad Fiber
  • Water Cooled: 5 - 10 l/min

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product


Questions route directly to the correct Product Engineer

Customers Also Considered:

PRICE Request Price
  • Output Power: up to 100 W
  • Mode Field Diameter: 40 μm
  • Input Signal Power: 30 mW
  • Input Signal Fiber: PM 10/125
  • Water Flow: 5 - 20 liters/minute

Product Overview:

TGModule D-PM Fiber Laser Gain Module Overview

The TGModule D-PM is an all-in-one ready-to-use water cooled amplifying module. The module includes Ampliconyx patent protected, polarization maintaining ytterbium doped tapered double-clad fiber (T-DCF), and it is ideally suited for demanding short pulse applications.

Built-In Pump Diodes, Ready-to-Splice Seed Input

This gain module has the highest level of integration with built-in pump diodes and ready-to-splice seed input. The TGModule D-PM can be designed and assembled to match customer needs and could incorporate pump diodes according to customer request. The module has a standard single-mode fiber (PM 10/125) input and free-space output with excellent single-mode beam quality (M2 < 1.3) and power up to 100 W. Built-in thermistors can be used to monitor the operating temperatures of the critical parts: the pump diodes, the gain fiber and the pump coupling unit located inside the amplifier.

The module is fully tested and shipped with complete test report and user manual.

Patents Pending

Ampliconyx polarization-maintaining ytterbium doped tapered double-clad fiber (T-DCF) is protected by the following patents: US 8,433,168 B2, Japan 5390524, People’s Republic of China ZL 200880119087.7, EPO 08805462.2 pending
