TGModule B-PM Ytterbium Doped Tapered, Double-Clad Fiber Amplifier, Water-Cooled Pump Coupling Unit

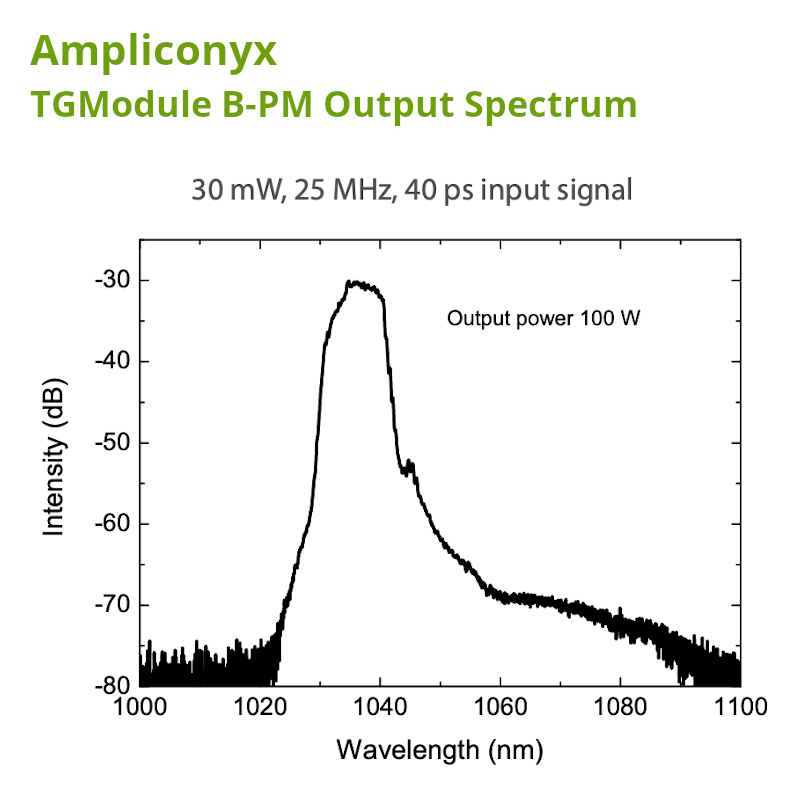

  • High Speed Fiber Amplifier Output Spectrum

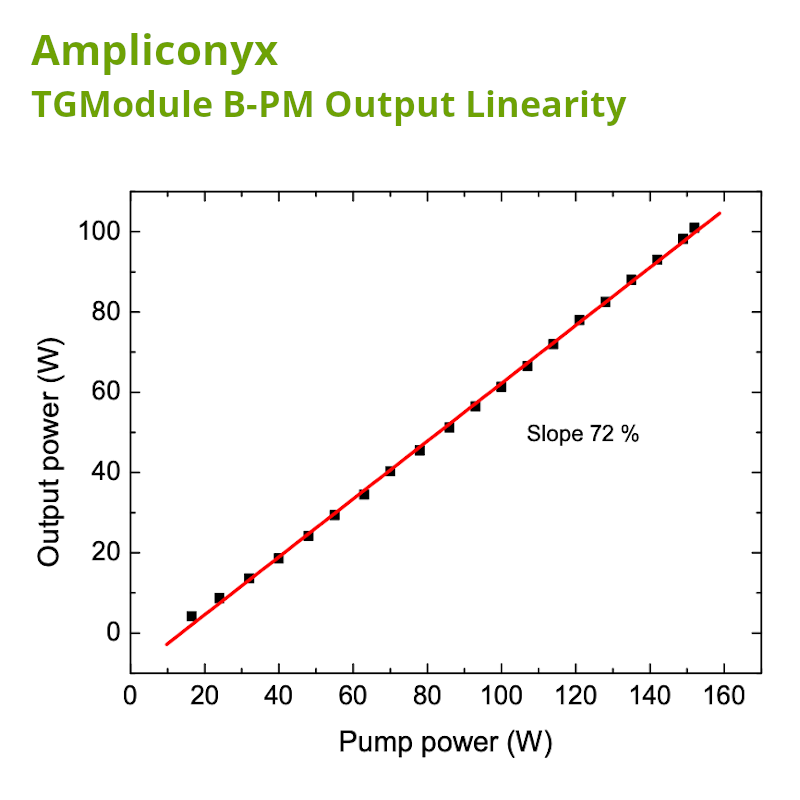

  • Ytterbium-Dopded Fiber Amplifier Linearity

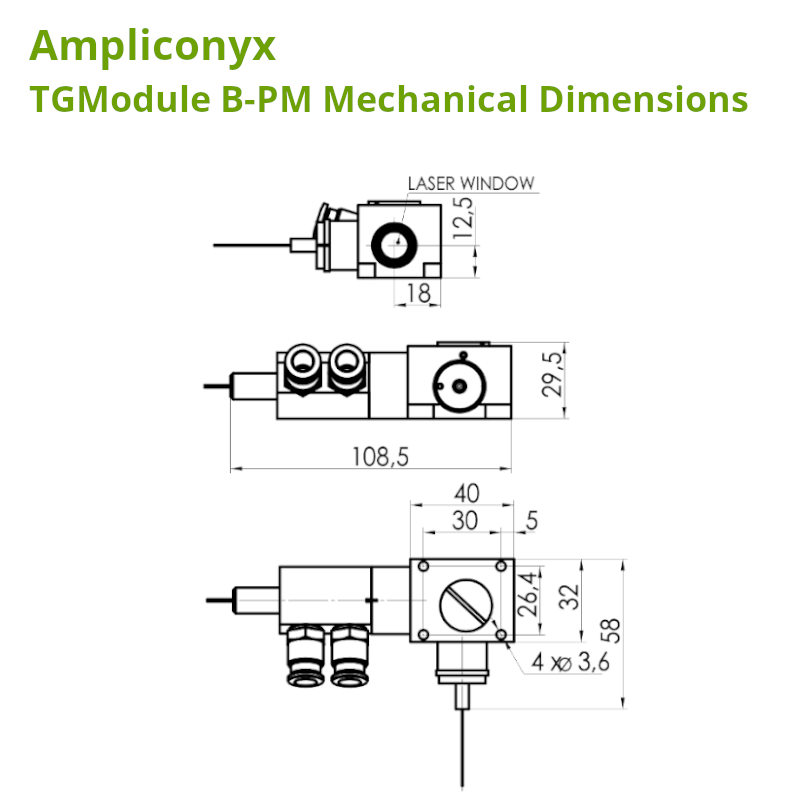

  • Ampliconyx 100 W Amplifier Module Dimensions
  • Fiber Amplifier Output Profile

Request Quote   Ships: Inquire | Model TGModule B-PM

Key Features
  • Center Wavelength: 1040 nm
  • Water-Cooled Pump Coupling Unit
  • Ytterbium Doped Double-Clad Fiber
  • Water Cooled: 5 - 10 l/min

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL TGModule B-PM
PRICE Request Price
Specifications
  • Output Power: up to 100 W
  • Mode Field Diameter: 40 μm
  • Input Signal Power: 30 mW
  • Input Signal Fiber: PM 10/125
  • Water Flow: 5 - 20 liters/minute

Product Overview:

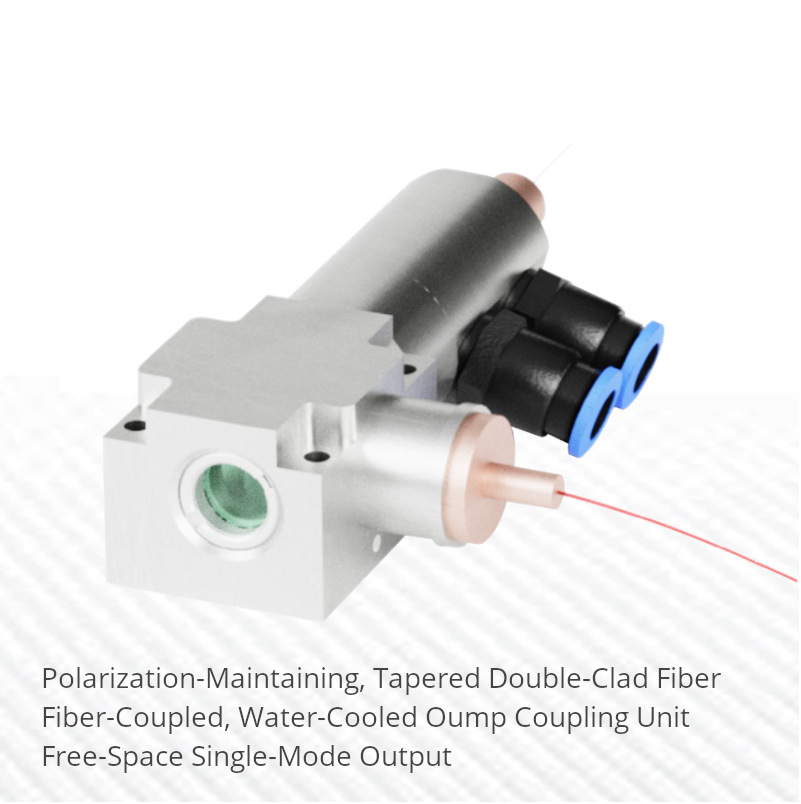

TGModule B-PM Fiber Laser Gain Module Overview

TGModule B-PM incorporates Ampliconyx patent protected, polarization maintaining ytterbium-doped tapered double clad fiber, and a water-cooled Pump Coupling Unit.

External Pump Diodes, Ready-to-Splice Seed Input

The thick end of the T-DCF is terminated by a fiber-coupled, water-cooled pump coupling unit, which enables easy splicing of pump diodes with up to 150 W of pump power. Optional pump combiner allows many different pump diode configurations. The unit has a free-space single-mode output with typical beam quality of M2 = 1.2.

The unit is fully tested and ships with complete test report.

Patents Pending

Ampliconyx polarization-maintaining ytterbium doped tapered double-clad fiber (T-DCF) is protected by the following patents: US 8,433,168 B2, Japan 5390524, People’s Republic of China ZL 200880119087.7, EPO 08805462.2 pending
