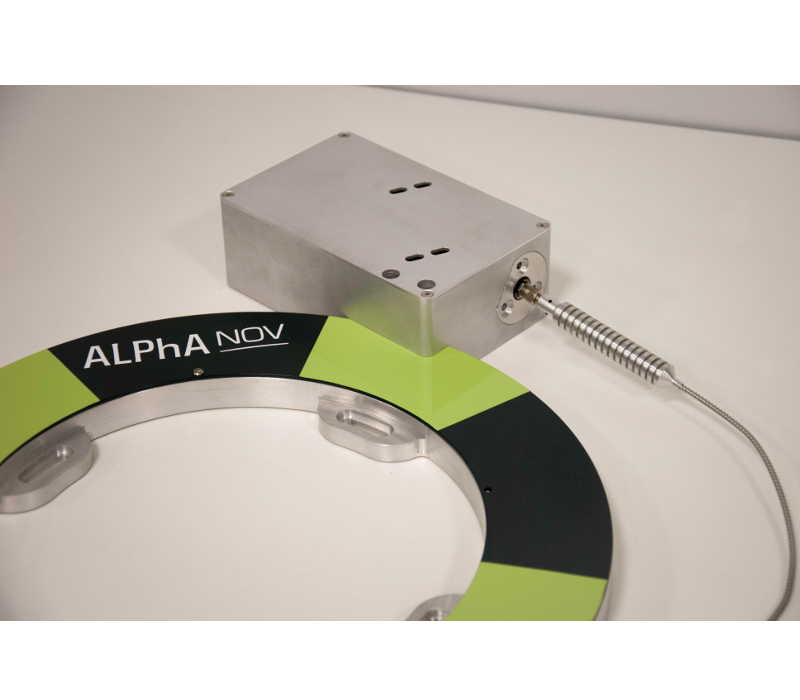

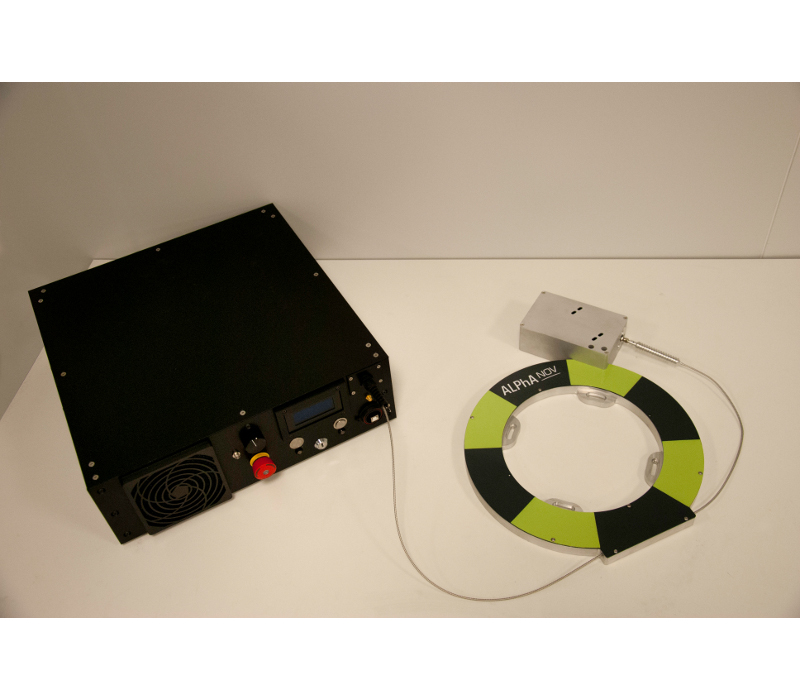

Picosecond Laser Amplifer 100W 1030nm-1064nm

Request Quote   Ships: Contact | Model PCF

Key Features
  • Pre-amplifying on demand
  • Specific fiber amplifier developments on-demand
  • Possibility to build a complete laser architecture with oscillator and SHG/THG module
  • Offered by ALPhaNOV, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Customers Also Considered:

MODEL PCF
PRICE Request Price
Optical performance
  • Operational Wavelength: 1030 nm - 1064 nm
  • Operational Regime: Pulsed / Single-Frequency
  • Pulse Repetition Rate: 50 MHz
  • Input Signal Power: 2-4 Watts
  • Output Power: >100 Watts
  • Output Peak Power: 0.5 MW typ.
  • Output Pulse Energy: 1mJ
  • Amplifier Gain: 17-20 dB
  • Output Beam Quality: M²<1.2
Optical interfaces
  • Input Interface: High power FC/APC connector, bare fiber
  • Output Interface: End-cap, SMA connector, collimator and/or isolator
Pump specification
  • Number of diode ports: 2 or 6 (on-demand)
  • Pump diodes: Up to 60W, CW or pulsed
  • Rise/fall times: >10µs
Special requests
  • Pre-amplifying on-demand
  • Specific fiber amplifier developments on-demand
  • Possibility to build a complete laser architecture with oscillator and SHG/THG module

Product Overview:

Based on its expertise in laser design and photonic crystal fiber interfacing, ALPhANOV developed a technology to build turn-key 100W-class monolithic laser amplifiers with superior stability
