FIBER LASER; 1550nm; 2 Watt Output:
- < 15kHz Line Width Module
- OEM Module

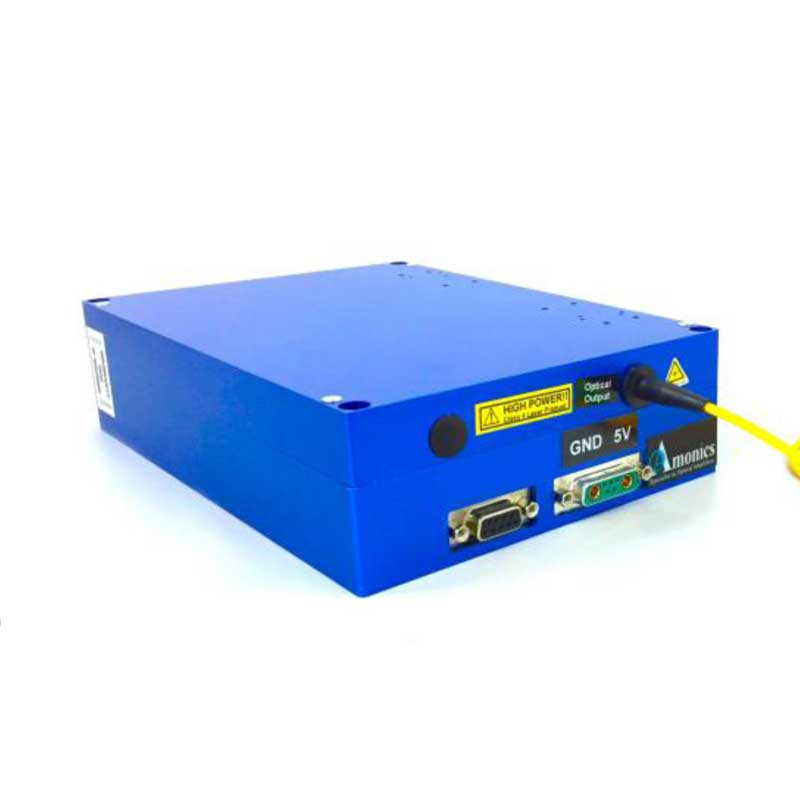

  • High Power 1550nm Fiber Laser < 15kHz Linewidth Module OEM Module Fiber Laser Ultra Narrow Linewidth Output Power 2 Watts

Request Quote   Ships: 3 weeks | Model AMNLS002

Key Features
  • Narrow Linewidth, Lorentzian Profile: <15 kHz
  • Integrated Redfern Integrated Optics (RIO) PLANEX High Performance External Cavity Laser
  • 2 YEAR FULL WARRANTY
Shipping & Warranty Information

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL AMNLS002
PRICE Request Price
FIBER LASER specifications (CW Full Power)
  • Center Wavelength: 1550 nm (+/- 1.0 nm)
  • Minimum Nominal Output Power: +33 dBm (2W)
  • Linewidth, FWHM, Lorentzian: < 15 kHz
  • Optical Isolation: > 30 dB
  • Side Mode Suppression Ratio: > 35 dB (45 dB typical)
  • Output Power Tuning: 10% to 100% Full Scale
  • RIN: < -110 dB/Hz (@100 kHz min.)
  • Output Power Stability (8 hours): Better Than +/- 2%
  • Wavelength Tuning Range: > +/- 0.02 nm
  • Wavelength Stability: +/- 0.005 nm (8 hours)
  • Polarization State: Random
  • Control Modes: APC (optical power control), ACC (current control)
APPLICATIONS
  • Fiber optic sensing applications
  • Interferometric and Brillouin DTSS sensing
  • Sensing systems for oil & gas, security, metrology and smart infrastructure
INTERFACE
  • Remote: RS232, LabView control software included
  • Remote: RJ-45 (TCP/IP Ethernet optional)
  • Optical Connector Options: FC/APC, FC/UPC, SC/APC, SC/UPC
  • Optical Fiber Options: PM fiber, SMF-28 (optional)
GENERAL
  • 200mm(W) x 140mm(D) x 50mm(H)
  • Operating Temperature Range: 0 to +40C
  • Storage Temperature: -10 to +70C
  • Power Supply: 90 – 240 VAC, 47 – 63Hz

Product Overview:

These 1550nm Fiber Lasers are ultra-high stability, high output power narrow linewidth light sources based on the Redfern Integrated Optics high performance external cavity laser. These OEM modules are microprocessor controlled units. They offer the user full control over the power as well as wavelength tuning through an easy to use RS232 remote I/O.
