100 Watt Nanosecond Laser Amplifer 1030nm-1064nm

Request Quote   Ships: Contact | Model PCF-100W

Key Features
  • Turn-Key 100 Watt Monolithic Laser Amplifier with Superior Stability
  • Pre-Amplifying on Demand
  • Facilitates Building a Complete Laser Architecture with Oscillator and SHG/THG Module
  • Yb-doped Microstructured Fiber Architecture
  • Offered by ALPhaNOV, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Customers Also Considered:

MODEL PCF-100W
PRICE Request Price
Optical performance
  • Operational Wavelength: 1030 nm - 1064 nm
  • Operational Regime: Pulsed / Single-Frequency
  • Pulse Repetition Rate: 50 MHz
  • Input Signal Power: 2-4 Watts
  • Output Power: >100 Watts
  • Output Peak Power: 0.5 MW typ.
  • Output Pulse Energy: 1 mJ
  • Amplifier Gain: 17-20 dB
  • Output Beam Quality: M² < 1.2

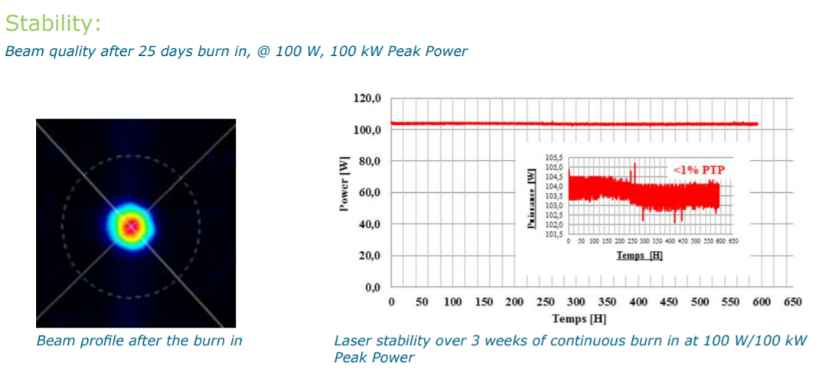

  • Output long term power stability (1000 hrs): < 2 %
  • Output free space beam size (1/e²): 1.5 - 2.5 mm
Optical interfaces
  • Input Interface: High power FC/APC connector, bare fiber
  • Output Interface: End-cap, SMA connector, collimator and/or isolator
Pump specification
  • Number of diode ports: 2 or 6 (on-demand)
  • Pump diodes: Up to 60 W, CW or pulsed
  • Rise/fall times: >10 µs
Special requests
  • Pre-amplifying on-demand
  • Specific fiber amplifier developments on-demand

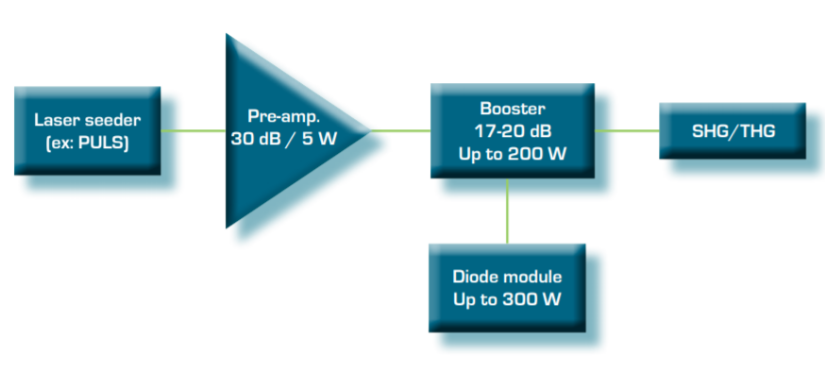

  • Possibility to build a complete laser architecture with oscillator and SHG/THG module

Product Overview:

Nanosecond Laser Amplifer, 100 Watt

Based on their expertise in laser design and photonic crystal fiber interfacing, ALPhANOV has developed a Turn-Key 100 Watt class monolithic laser amplifier with industry leading stability. These amplifiers rely on Yb-doped micro-structured fiber architectures. They can be tailored to meet specific requirements in terms of power, temporal regime and other functionalities.
