High Power EDFA, 1550nm Turn-Key PM Amplifier; Models Available with Output Power up to 1W, 5W and 10W

  • High Power EDFA
  • High Power 1550nm EDFA; C-Band, Output Power up to 10 Watts Diagram

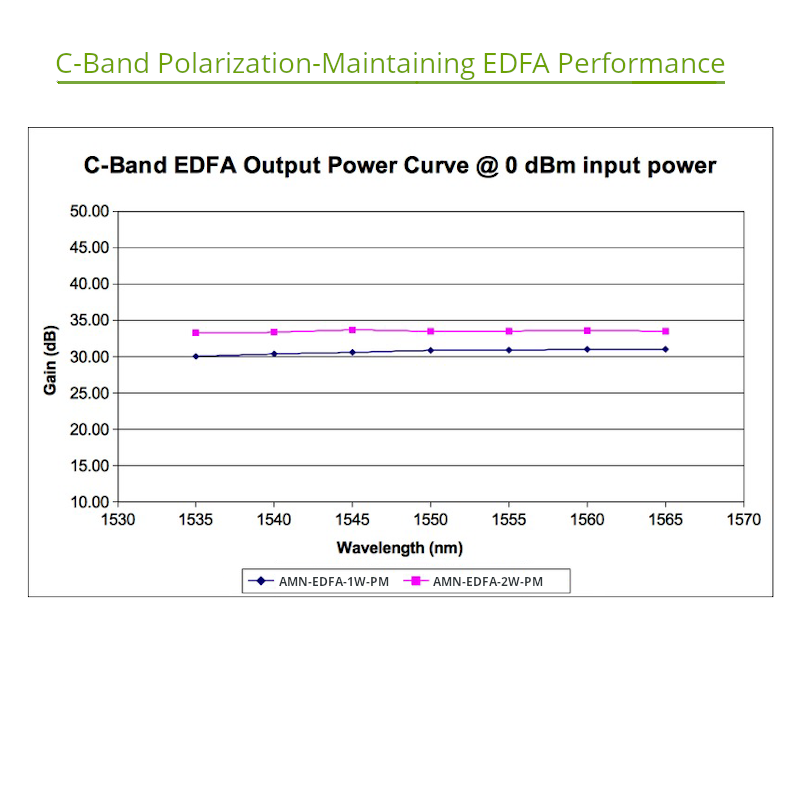

  • high power 1550nm edfa fiber amplifier gain

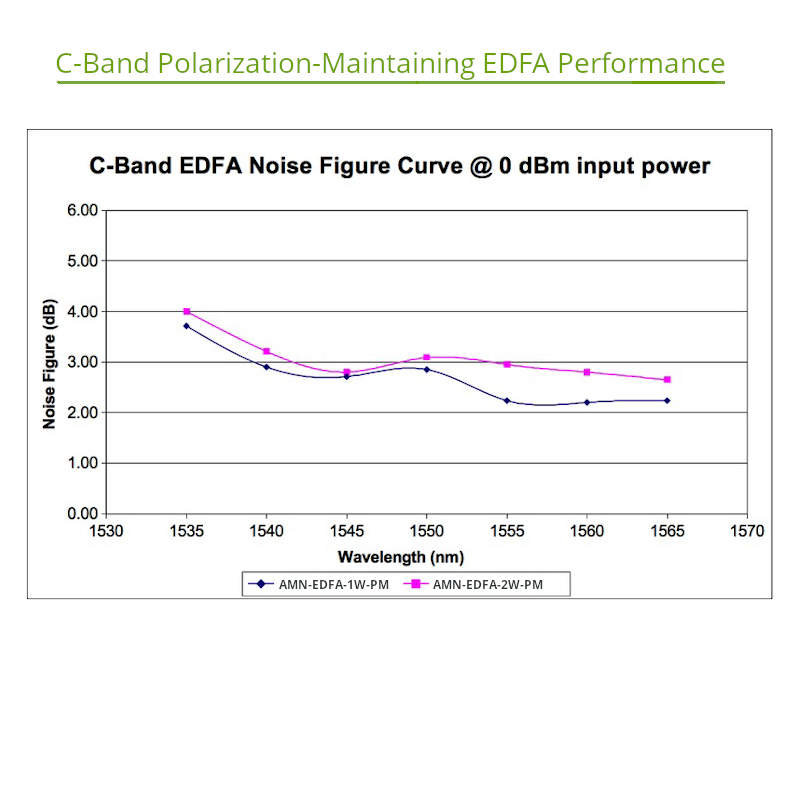

  • High Power EDFA Erbium Doped Fiber Amplifier Noise Figure

Request Quote   Ships: 3 weeks | Model AMN-EDFA-1W

Key Features
  • Polarization Maintaining Fiber (Non-PM models also available)
  • User Adjustable Output Power; User Control of Current Level to Internal 976nm Pump Laser Diodes
  • Includes Loss of Input Power Detection with Pump Shut-Down Safety Features
  • High Gain, Low Noise, High Polarization Extinction Ratio
  • Offered by Amonics, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by:
    Solid State Laser Source, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL AMN-EDFA-1W
PRICE Request Price
1 Watt Model: AMN-EDFA-1W (1W output power)
  • Output Power Range: Adjustable up to 1W (> +30 dBm)
  • Operation Wavelength Range: 1535nm - 1563nm
  • Optical Gain @ -10dBm: > 20 dB
  • Noise Figure @ -20dBm: < 4.3 dB
  • Optical Gain @ -40dBm: > 30dB
  • Input Isolation: > 30 dB
  • Output Isolation: > 30 dB
  • Polarization Dependent Gain: (typ) 0.3 dB
  • Polarization Dependent Gain: (max) 0.5 dB
  • Polarization Mode Dispersion: < .3 ps
  • User Set Control Mode 1: ACC (pump current)
  • User Set Control Mode 2: APC (power feedback)
  • Polarization Extinction Ratio: > 20 dB
  • Power Adjustment Step Size: 0.01 dBm
  • Dimensions: 260mm x 330mm x 120 mm
  • Gain Medium: Erbium Doped Fiber
5 Watt Model: AMN-EDFA-5W (5W output power)
  • GO TO 5W MODEL PRODUCT PAGE »
    Output Power Range: Adjustable up to 5 Watts (> +37 dBm)
  • Standard Operation Wavelength Range: 1545nm to 1565nm
  • Extended Range Specification: > 5 Watts Output Power @ 1534.25nm (Included with this model)
  • Extended Range Specification: > 2 Watts Output Power @ 1568.77nm (Included with this model)
  • Output Isolation: > 25 dB (min)
  • Polarization: Linear
  • Polarization Dependent Gain: (typ) 0.3 dB
  • Polarization Mode Dispersion: < .3 ps
  • User Set Control Mode 1: ACC (pump current power control)
  • Polarization Extinction Ratio: > 20 dB
  • Power Adjustment Step Size: 0.01 dBm
  • Gain Medium: Erbium Ytterbium Doped Fiber
  • Noise Figure: Max. 7.0 dB
  • Acceptable Laser Source Input Power Range: -3 dBm to +10 dBm
10 Watt Model: AMN-EDFA-10W (10W output power)
  • GO TO 10W MODEL PRODUCT PAGE »
    Output Power Range: Adjustable up to 10 Watts (> +40 dBm)
  • Output Power Range: Up to 10 Watts (> +40) dBm
  • Standard Operation Wavelength Range: 1550nm to 1565nm
  • Output Isolation: > 25 dB (min)
  • Polarization: Linear
  • Polarization Dependent Gain: (typ) 0.3 dB
  • User Set Control Mode 1: ACC (pump current power control)
  • Polarization Extinction Ratio: > 20 dB
  • Power Adjustment Step Size: 0.01 dBm
  • Gain Medium: Erbium Ytterbium Doped Fiber
  • Noise Figure: Max. 7.5 dB

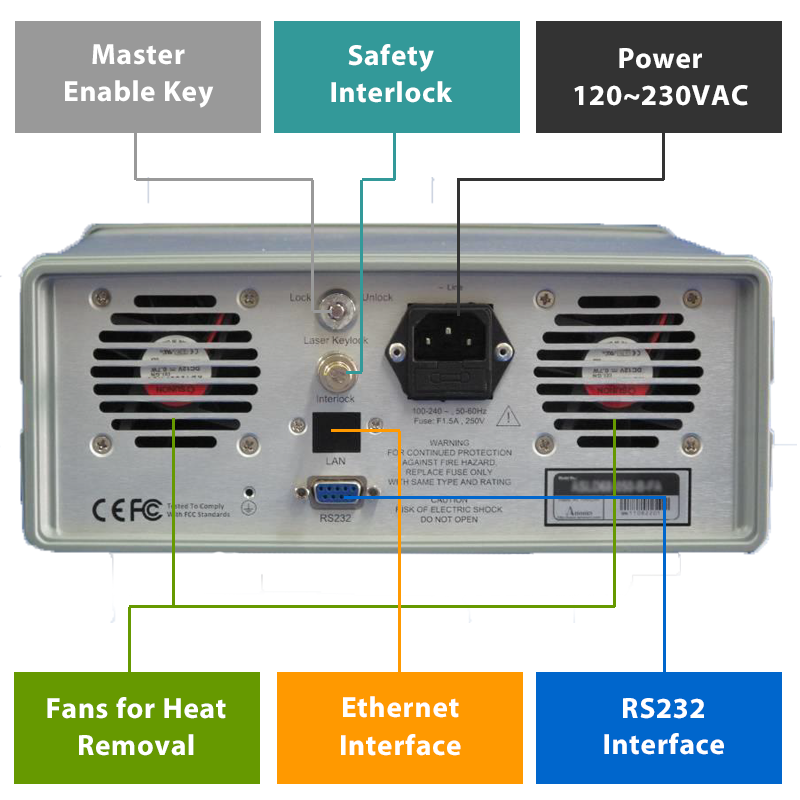

USER INTERFACE (all models)
  • Alphanumeric Color Front Panel Interface w/ Adjust Knob
  • Remote: RS232, LabView Control Software Included
  • Remote: RJ-45 (TCP/IP Ethernet optional)
  • Optical Connectors IN/OUT: FC/APC
  • Optical Fiber Options: PM fiber, (SMF-28 optional)
GENERAL SPECIFICATIONS (all models)
  • Operation Temperature: 0 to 40 ℃
  • Required Shore Power: 90-240 (VAC), 47-63 Hz
  • Dimensions (1 Watt): 260mm x 330mm x 120mm
  • Dimensions (5W & 10 Watt): 485mm x 615mm x 150mm
  • Power Monitoring: Output Power (Input Power Optional)
  • Remote Control RS2323 Port: DB-9 female
  • TCPIP/Ethernet optional
  • Protection: Pump Lasers (TEC) Over-Temperature
  • Protection: Pump Lasers (TEC) Over-Temperature
  • Protection: Pump Lasers Current Limit
  • Optical Fiber: PMF Panda 1550nm PM Fiber
  • Connectors: APC (Others Available on Request)
  • Safety Control 1: Key-Lock Switch
  • Safety Control 2: BNC Interlock
  • Safety Control 3 (10 Watt): e-Stop
  • Safety Control 4: Loss of Input Power Detection and Pump Shut Down
APPLICATIONS FOR HIGH POWER EDFA'S
  • Laboratory R&D
  • SONET/SDH System
  • Optical Communications
  • Fiber Optic Sensing
  • CATV and Telecommunications R&D

Product Overview:

High Power EDFA Overview:

These high power EDFA instruments are 1550nm range C-band erbium (1W) doped and erbium-ytterbium (10W and 5W) doped fiber amplifiers which offer up to 10 Watts of output power. They are simple to operate, affordable benchtop instruments for laboratory research or manufacturing test applications. These units provide full control over the power and gain through user control of the internal 976nm pump laser diode current levels, or by setting the instrument into a gain feedback or power feedback mode. The default / standard product offering comes with ACC mode, and APC mode can be ordered as an option. ACC mode is "current control" to the pumpt lasers. APC mode allows the user to set a target output power and the instrument will automtically ajdust the current level to the pump lasers.

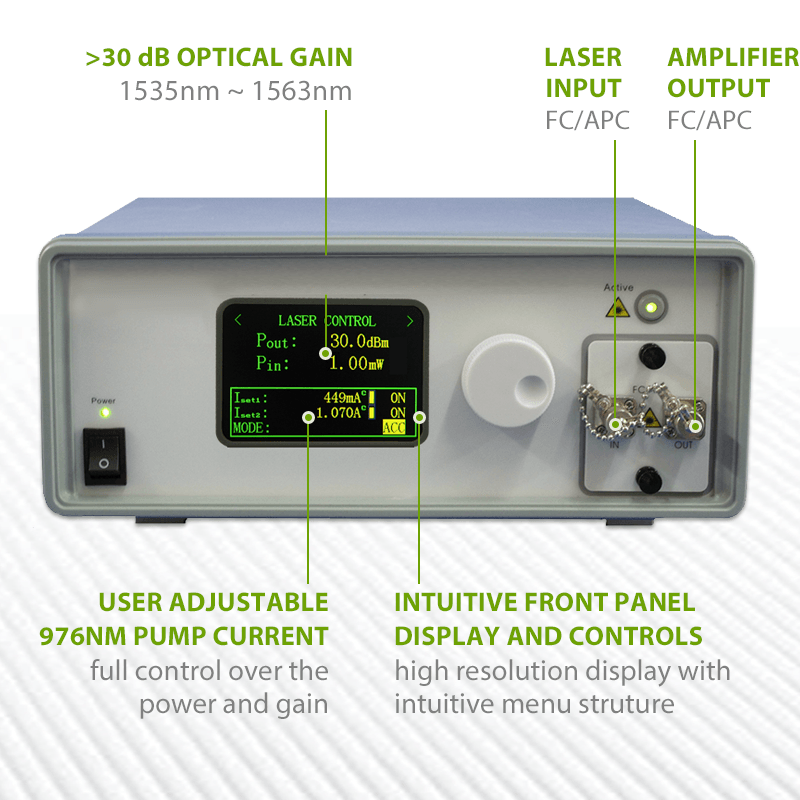

Flexible User Interface Options:

The user can adjust EDFA settings through an easy to use front panel with an intuitive menu and control knob. Settings can also be made by remote interface. These units come with RS232 in the standard product offering, and an ethernet interface can be ordered as an option. LabVIEW based control software is available and ships free of charge. Please contact us if you would like to view the Operating Manual or see the remote interface command set.

Extensive Integrated Amplifier Protection Features:

These high power EDFA's offer an extensive array of protection features. Integrated protection features are designed to protect the amplifier from user induced damage as well as protect the user from harm. They offer an input laser power detection circuit which automatically shuts down the current to the internal 976nm laser diode pumps. They also offer current and voltage limits for the pump lasers as well as (TEC) over-temperature shut-down. Both of these functions protect the internal pump sources. The chassis is equipped with a BNC interlock to allow the user to set conditional shut-down conditions for the amplifier. Also included is a front pane e-Stop on the the 5 watt and 10 watt models.

EDFA Utilizes Telcordia Qualified High Reliability Components:

These EDFA's utilize high power and high reliability Telcordia qualified 976nm pump lasers as well as Telcorida qualified combiners. The principal of operation is the laser light from the pump wavelengths and power level excite the erbium and/or ytterbium ions embedded in the fiber from their ground state to achieve the resultant high excitation levels, and the commensurate high gain levels of up to 35 dB. Because they are polarization maintaining amplifiers, they amplify the light polarized along the slow axis of the fiber. Each high power EDFA unit has integrated isolators for the intput and the output.

Careful attention to component selection and circuit board design allow these 1550nm range EDFA's to produce high gain at a low noise level. Noise levels of < 5 dB with a very flat gain profile over the C-Band make these instruments ideal for many applications.
