1.0µm Single Mode Yb-Doped CW Fiber Laser with up to 20 Watts of Laser Output Power

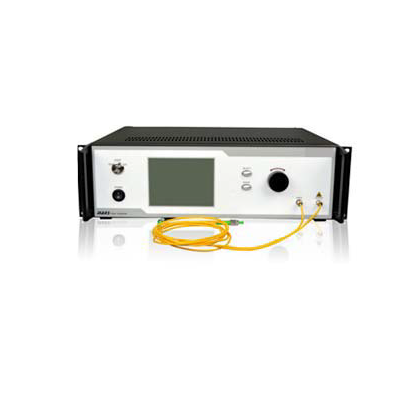

  • Fiber Laser 1064nm Front View

Request Quote   Ships: Contact | Model RLS/CKLS-1064-B

Key Features
  • Up to 20 Watts Output Power High Stability
  • Excellent Beam Quality
  • Single Mode Beam Profile, PM Optional

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product


Questions route directly to the correct Product Engineer

Customers Also Considered:

PRICE Request Price

Product Overview:

The model CKLS-1064 single mode CW fiber laser from Techwin is a 1.0μm, Yb-doped fiber laser system which combines an excellent beam profile with high CW output power capability. These fiber lasers are based on an all-fiber design structure and utilize double cladding fiber pumping technology. The output power is user adjustable up to 20 watts. The diffraction limited beam profile is achieved even at the maximum CW power level. These lasers are widely used in research and development applications as well as component testing.

The model CKLS-1064 CW fiber laser employs a microprocessor based control system which is designed to precisely control the pump laser stage and other components to deliver high stability, a long lifetime and maintenance free operation. The simple to operate front panel LCD offers the user real-time control of the CKLS-1064 . The user has immediate access to all of the control parameters, including the operating state of the laser, the output power, the temperature and any alarm or warning conditions.
