PULSED FIBER LASER; 1064nm; 1 Watt Pulsed Output Power

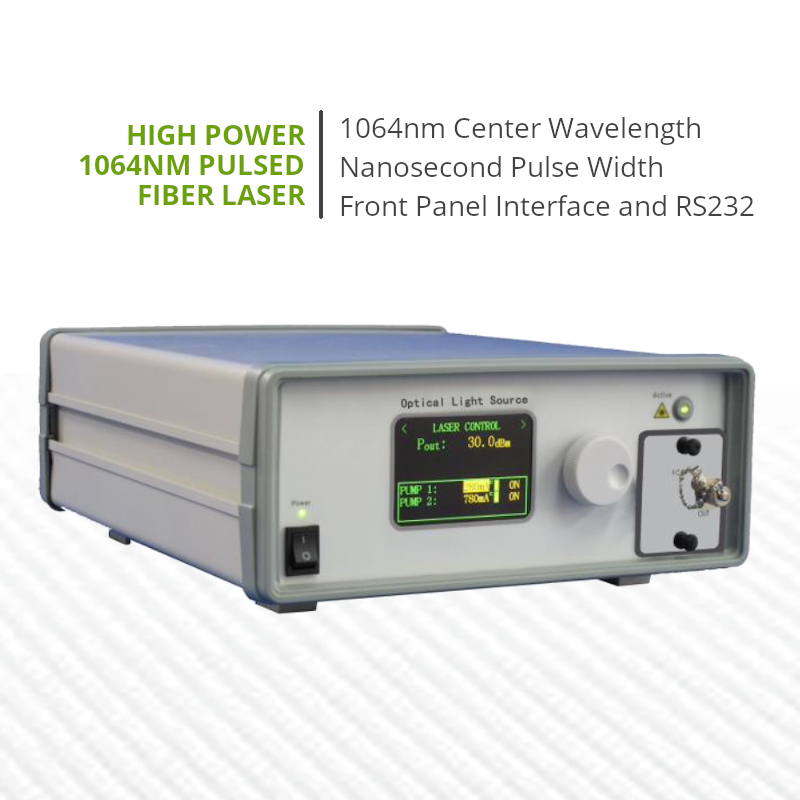

  • 1064nm Pulsed Fiber Laser Benchtop Unit

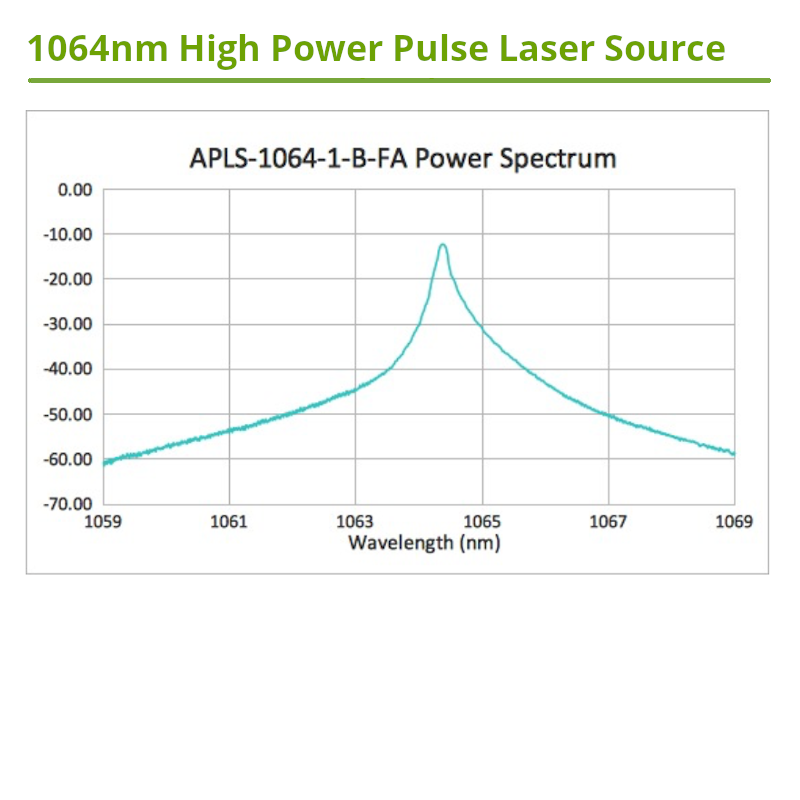

  • 1064nm Pulsed Fiber Laser Spectrum

Request Quote   Ships: Request Quote for Price and Lead Time | Model RLS / AMN-FL-1064-1

Key Features
  • 1 Watt Output Power, 1064nm Center Wavelength
  • Integrated Pulse Generator
  • 5 ns to 100 ns Pulse Widths
  • RS232 Interface with LabView Drivers
  • Offered by Amonics, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by:
    Solid State Laser Source, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

MODEL RLS / AMN-FL-1064-1
PRICE Request Price
Optical Specifications
  • Output Power (typical): 1 Watt
  • Output Power (min.): > 700mW
  • Pulse Width: 5 ns - 100 ns (duty cycle < 2%, repetition rate < 500kHz)
  • On/Off Extinction Ratio: > 25 dB
  • Trigger Voltage: TTL (standard)
GENERAL
  • Operating Temperature Range: 0ºC to +40ºC
  • Storage Temperature: -10ºC to +70ºC
  • Power Supply: 90 – 240 VAC, 47 – 63Hz
  • Dimensions: 260mm (W) x 330 mm (D) x 120 mm (H)
  • Safety Control: Key-Lock, BNC Interlock
INTERFACE
  • Optical Power Monitoring: Front Panel or Remote I/O
  • Front Panel: Alphanumeric Interface
  • Remote: RS232, LabView Control Software Included
  • Optional Remote: RJ-45 TCP/IP Ethernet
  • Optical Connector: FC/APC
  • Connector Options: FC/UPC, SC/APC, SC/UPC
  • Optical Fiber Options: H11060 or PM 980
APPLICATIONS
  • SHG Applications
  • Medical Systems
  • Industrial Lasers
  • Fiber Optic Sensing
  • Laboratory Research

Product Overview:

Pulsed 1064nm Fiber Laser Source Overview

These high performance 1064nm fiber lasers offer nanosecond pulse widths and up to 1 Watts of power. These units offer the user an alphanumeric color front panel display for setting and monitoring optical power. They also offer a user tunable pulse width from 5 nanoseconds up to 1200 nanoseconds, and can be driven from the integrated pulse generator. These fiber lasers are an excellent choice for applications at the 1 micron wavelength that require laser emission with high pulse peak power.

Full Featured Benchtop Pulsed Laser Source

The pulse laser comes standard table top version; a 1U high rack-mount version (inquire for details). These sources are turn-key microprocessor controlled lasers that are equipped with safety alarms, a BNC interlock, and multiple status indicators. An integrated RS232 computer interface with LabView drivers provides easy control and fast data acquisition. Available options include single frequency operation and linearly polarized operation. The instrument comes standard with an FC/APC connector, but other connectors are available: FC/UPC, SC/APC, SC/UPC.
