Femtosecond Laser, 1028nm, 400µJ

Request Quote   Ships: 2 Weeks | Model .

Key Features
  • 190 fs – 10 ps tunable pulse duration
  • 2 mJ maximum pulse energy
  • 20 W output power
  • 1 kHz – 1 MHz tunable base repetition rate
  • Pulse picker for pulse‑on‑demand operation
  • Rugged, industrial grade mechanical design
  • Automated harmonics generators (515 nm, 343 nm, 257 nm, 206 nm)

Customers Also Considered:

MODEL .
PRICE Request Price

Product Overview:

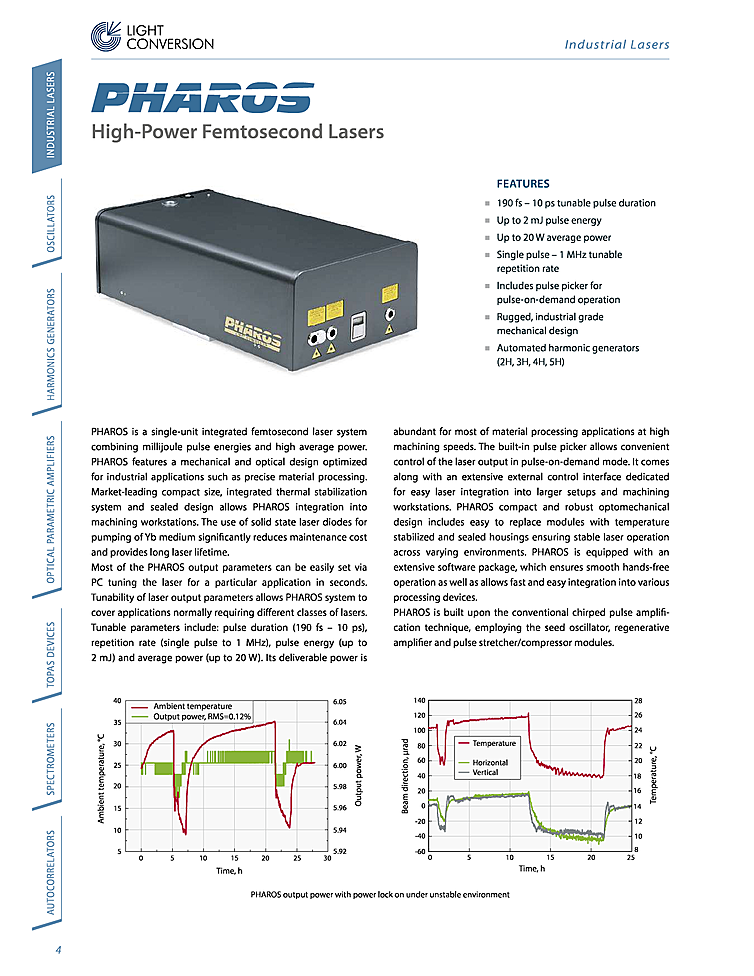

PHAROS is a single‑unit integrated femtosecond laser system that combines millijoule pulse energies and high average power. It has a mechanical and optical design optimized for industrial applications such as precise material processing. It has a compact size, integrated thermal stabilization system and sealed design, making it a perfect integration into machining workstations.

Another feature of this device is its use of solid state laser diodes for pumping of Yb medium. With this process, the PHAROS significantly reduces maintenance cost and provides long laser lifetime to users.

PHAROS also has a built‑in pulse picker that allows you to have a convenient control of the laser output in pulse‑on‑demand mode. An extensive external control interface also comes along with it. This interface is dedicated for easy laser integration into larger setups and machining workstations.

PHAROS has output parameters can be easily set via PC tuning the laser for a particular application in seconds. The tunable parameters of this device include pulse duration (190 fs – 10 ps), repetition rate (single pulse to 1 MHz), pulse energy (up to 2 mJ) and average power (up to 20 W). It boasts of an abundant deliverable power, perfect for material processing applications at high machining speeds.

This device has a compact and robust optomechanical design including an easy to replace modules with stabilized temperature and sealed housings ensuring stable laser operation across different environments. It is also comes equipped with an extensive software package, ensuring a smooth hands-free operation and allowing fast and easy integration into various processing devices

PHAROS, the Femtosecond Laser for Industry and Science.
